6 Best Depth Micrometers for Measuring Flange Recesses

Precision measurement isn’t just for machine shops; when dealing with high-end architectural metal panels or critical fastener seating, the tolerance for error is razor-thin. Measuring flange recesses accurately ensures that gaskets seal properly and that thermal movement won’t cause fastener fatigue over time. A reliable depth micrometer is the difference between a roof that performs for fifty years and one that suffers from premature leaks or fastener pull-through. Choosing the right tool requires balancing the harsh reality of the job site with the need for laboratory-grade precision.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Mitutoyo 129-111: The Benchmark for Accuracy

When a project demands absolute certainty, this Mitutoyo model is the industry standard. It features a hardened stainless steel base and an interchangeable rod system that covers a significant range without sacrificing sensitivity.

The build quality is rugged enough to handle the occasional bump in a toolbox, but the movement remains buttery smooth. This tool is the go-to for inspectors verifying that flange recesses meet specific manufacturer uplift ratings.

Investing in this micrometer means eliminating guesswork when inspecting critical joints. While the price tag is steep, the long-term reliability and ease of calibration make it the gold standard for any serious contractor.

Starrett 445Z-3RL: A Lifetime Investment Tool

Starrett tools are synonymous with durability, and this depth micrometer is designed to be passed down through generations. Its heavy-duty construction provides the stability needed when measuring recesses on vertical surfaces or tight roof transitions.

The rachet stop is particularly effective, ensuring consistent pressure across multiple measurements. In high-wind zones where proper flange compression is critical to meeting local code, this consistency prevents overtightening and potential structural stress.

While the learning curve is slightly steeper than cheaper alternatives, the longevity is unmatched. Expect this tool to maintain its accuracy in hot, cold, or humid conditions, provided it receives standard maintenance.

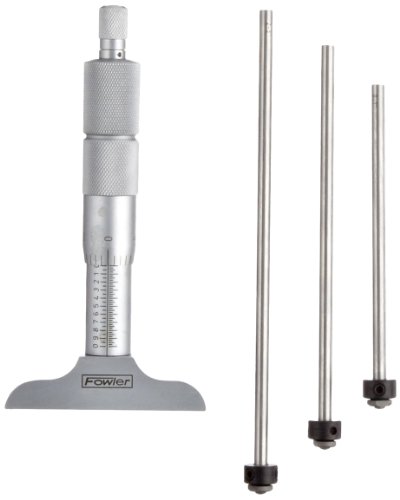

Fowler 52-225-006-1: Top Performance on a Budget

Fowler strikes an impressive balance for those who need high-quality results without the premium brand-name cost. This model provides clear, easy-to-read graduations that are essential when working in the low-light conditions of an attic or a dimly lit garage.

The rods are easy to switch out, which is vital when moving between different flange profiles on the same job site. It offers a solid, professional feel that outperforms entry-level imports while keeping the project budget intact.

This is the ideal choice for a contractor who needs a reliable secondary tool or a serious DIYer who refuses to compromise on quality. It handles the rigors of daily use well as long as the base is kept clean of debris.

Insize 3240-25A Digital Mic: For Fast Readouts

Digital micrometers are a massive time-saver when measuring dozens of flange recesses across a large commercial roof project. The instant readout eliminates the risk of parallax errors or misreading small vernier scales.

The data output capabilities allow for logging measurements directly into a tablet or laptop. This feature is a game-changer for quality control documentation, especially when providing signed verification to building owners or insurance adjusters.

While battery life is always a concern on a remote site, having a spare button cell is a small price to pay for the speed provided. Keep this tool protected from moisture, as the sensitive electronics are less forgiving than analog components.

iGaging Digital Micrometer: Best Value Digital Pick

If the workflow demands digital convenience but the budget is constrained, the iGaging model provides surprisingly high accuracy. It features a smooth spindle movement and a clear display that simplifies the repetitive nature of checking multiple fastener recesses.

It is lightweight and easy to handle during long days on the roof, reducing operator fatigue. The IP54 rating provides some protection against dust and water spray, which is essential when working near gutters or flashings.

This tool is a practical middle ground for those who prioritize efficiency without needing the high-end calibration certificates of more expensive brands. It turns a tedious measurement task into a quick, predictable part of the installation process.

Shars Vernier Depth Mic: Old-School Reliability

Sometimes the simplest tool is the most dependable one. The Shars Vernier model lacks batteries and circuit boards, meaning it remains functional regardless of extreme temperatures or site conditions.

The fine adjustment nut allows for precise control, making it perfect for measuring depth variations in custom sheet metal work. Its mechanical simplicity is a major advantage when working in environments where electronic tools might fail or fluctuate.

For the traditionalist, this micrometer provides a tactile feedback that is impossible to replicate with digital displays. It is a robust, no-nonsense tool that delivers accurate results every time the lock nut is tightened.

How to Measure a Recess with a Depth Micrometer

Measurement starts with a clean surface; any grit or metal shavings left in the flange recess will ruin the accuracy of the reading. Place the base of the micrometer firmly across the opening, ensuring it sits flat and square to the surface.

Lower the spindle slowly until it just makes contact with the bottom of the recess. Using the rachet stop is essential here to ensure identical pressure for every measurement, preventing the rod from digging into the material.

Record the reading, back the spindle off, and repeat the process at least twice to verify the result. Consistency in technique is more important than the cost of the tool when dealing with critical roofing tolerances.

Digital vs. Vernier Mics: Which Do You Need?

Digital micrometers excel in fast-paced environments where recording multiple data points is necessary for compliance. They remove the human error associated with reading tiny lines, which is invaluable when fatigue sets in during a long shift.

Vernier micrometers offer a level of immunity to electronics failure and can be more reliable in extreme cold. If the work involves high-stakes custom fabrication where every thousandth of an inch is scrutinized, the mechanical simplicity of a vernier scale provides a sense of absolute security.

Evaluate the specific project scope: high-volume fastener checking favors digital speed, whereas custom flashing work often rewards the tactile precision of a vernier. Having both options in the shop is the sign of a fully prepared professional.

Key Features to Look For in a Depth Micrometer

Look for a base width that is adequate for the flange profile being measured; too small, and the micrometer will tilt, providing an inaccurate reading. Hardened steel contact points are a must to prevent wear over time.

Rachet stops are non-negotiable for consistent, reproducible results. Always verify the range of the included rods to ensure the tool covers the deepest recesses common in the specific roof systems encountered.

Check for an easy-to-read scale or a high-contrast digital display. A locking nut is another critical feature, as it secures the measurement so that the reading can be verified even if the tool is moved away from the workpiece.

Calibrating and Caring for Your Micrometer Tool

Even the best micrometer will drift over time. Use a set of reference blocks to check for zero-point errors before every major project. If the tool fails to return to zero, consult the manufacturer’s manual for adjustment procedures.

Keep the tool clean and stored in its protective case when not in use. A light coating of mineral oil on the spindle prevents rust, especially if the tool is stored in a humid environment or near salt air.

Treat the micrometer as a precision instrument, not a standard hand tool. Avoid dropping it, never force the spindle against resistance, and keep the base free of burrs by gently dressing it with a fine diamond stone if necessary.

Selecting the right depth micrometer ensures that every fastener and flange recess is installed to exact specifications, securing the structural integrity and longevity of the roofing system. Whether choosing a classic vernier model for its mechanical reliability or a digital unit for rapid data capture, prioritize consistency and build quality. A small investment in a high-quality measuring tool pays off in avoided rework and long-term peace of mind. Consistent, accurate measurements are the foundation of professional-grade work that stands the test of time.
