6 Best Reference Blocks For Zero Point Verification

Precision measurement is the foundation of any structure that needs to last, whether it is calibrating a CNC machine for custom flashing or setting your depth for a high-end metal panel installation. Just as an improperly set roof pitch can lead to water pooling and system failure, an inaccurate zero point will ruin a precision component before the first cut is made. The right reference block acts as your baseline, ensuring that every subsequent measurement remains true to the blueprint. These tools remove the guesswork from your workflow, allowing for repeatable results that satisfy even the strictest site inspections.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Starrett 1-2-3 Blocks: The All-Around Shop Staple

Starrett 1-2-3 blocks are the workhorse of any serious machine shop or fabrication center. These hardened steel blocks offer a reliable, ground-flat surface that acts as the industry standard for verifying zero points and setting up perpendicular cuts.

When you are squaring up a heavy-duty custom bracket or verifying the offset on a brake for bending drip edge, these blocks provide the necessary stability. They are drilled and tapped to allow for bolting into fixtures, which prevents shifting during critical operations.

Do not mistake these for mere spacers; they are precision instruments meant for checking machine alignment. While cheaper alternatives exist, the long-term dimensional stability of Starrett steel means you aren’t recalibrating your setup halfway through a project.

Mitutoyo Gage Blocks: For Unmatched Precision

Mitutoyo gage blocks represent the pinnacle of verification for high-stakes assembly. If the tolerance on your project is measured in microns rather than fractions of an inch, these are the only acceptable reference point.

These blocks are used primarily for calibrating other tools and checking for drift in CNC axes. When a job requires a perfectly flush transition between metal panels or a precise gap for expansion joints, using a Mitutoyo block ensures the measurement is absolute.

They require careful handling and strict environmental controls, as even the oil from a fingerprint can introduce measurement error. Keep these in their protective case until the very moment of verification.

Haimer 3D-Sensor: The Ultimate CNC Zero Finder

The Haimer 3D-Sensor is an active probe that takes the “touch-and-go” anxiety out of CNC setup. Instead of manually jogging an edge finder, this tool allows for rapid, precise localization of your zero point along the X, Y, and Z axes.

Speed is vital in a shop environment, and the Haimer drastically reduces the time spent setting up for complex shapes like custom radius flashing or transition caps. It provides a tactile confirmation of the edge, removing the visual parallax error often associated with manual probes.

It is an expensive investment, but it pays for itself by eliminating scrap metal caused by offset errors. For production shops running multiple cycles a day, the efficiency gain is undeniable.

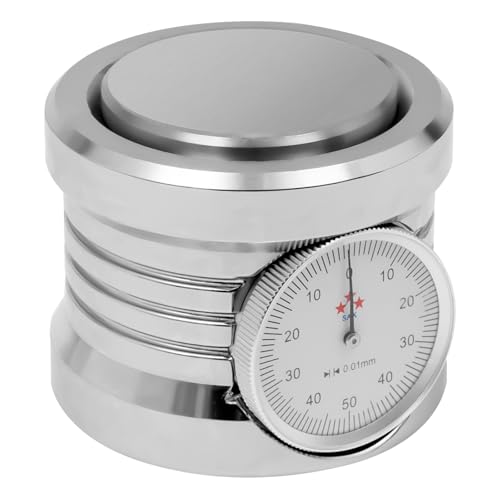

Edge Technology Pro Gage: Best Budget Z-Axis Setter

The Edge Technology Pro Gage is a straightforward, reliable tool for setting the Z-axis on your CNC router or mill. It is built for the professional who needs speed and accuracy without the premium price tag of a digital or electronic probe.

The spring-loaded plunger provides a clear, consistent reference height that prevents you from plunging a tool too deep into your spoil board or workpiece. It is an excellent choice for shops that handle varying material thicknesses, such as switching from thin aluminum sheets to thick polyethylene blocking.

Because it relies on a simple mechanical interface, it is far more durable than electronic alternatives in dusty, shop-heavy environments. Keep the base clean, and it will provide years of accurate service.

Shars Precision 1-2-3 Blocks: Top Value Pick

Shars precision blocks offer an excellent balance between quality and affordability for the independent contractor. They are ground to a tight tolerance, making them perfectly adequate for most general fabrication and construction setup tasks.

If you are only occasionally needing to verify a setup or square up a fixture, there is no need to spend top dollar on legendary brands. These blocks provide the weight and rigidity needed to ensure your work pieces aren’t shifting under the pressure of a clamping force.

They are ideal for the shop that needs a set of reliable, everyday blocks that won’t break the bank. Just be sure to wipe them down with rust-preventative oil after each use to keep them pristine.

Fowler Z-Axis-Setter Jr.: Compact and Reliable

The Fowler Z-Axis-Setter Jr. is the tool of choice when space is at a premium on the mill table. Its compact design allows it to sit snugly between fixtures where larger setters simply cannot fit.

Despite its small footprint, it provides the same critical Z-axis verification that prevents broken bits and marred work surfaces. It is particularly effective for shops that produce smaller, intricate parts where every square inch of the bed is spoken for.

It delivers a clean, repeatable signal that makes calibrating tool offsets simple and fast. It is a no-nonsense tool that does one job extremely well.

Block Material: Steel vs. Granite vs. Ceramic

• Steel: The standard for most shops; it is durable and easy to machine, though it requires regular oiling to prevent rust.
• Granite: Offers excellent thermal stability and does not expand or contract significantly with ambient temperature changes, making it ideal for inspection rooms.
• Ceramic: Virtually immune to rust and highly resistant to wear, but it is extremely brittle and will shatter if dropped on a concrete shop floor.

Choose your material based on your shop environment. If you work in a climate-controlled inspection lab, granite is superior; if you are in a high-traffic shop with metal filings and heavy vibration, stick with hardened steel.

Understanding Grades: What Accuracy Do You Need?

• Grade 00: The highest precision, reserved for master calibration and laboratory settings.
• Grade 0: Ideal for high-precision manufacturing and machine shop master standards.
• Grade AS-1: The industry workhorse, providing the necessary accuracy for daily production floor verification.

Don’t over-spec your blocks. Buying Grade 00 blocks for a general fabrication shop is a waste of capital, as the shop environment will compromise their accuracy almost immediately. Match the grade to the tolerance of the parts you are actually producing.

How to Properly “Wring” Gage Blocks Together

Wringing is the process of sliding two gage blocks together to remove the air gap, creating a single, solid reference unit. Start by cleaning both surfaces with a lint-free cloth and a light solvent to remove any grit or oils.

Place one block at a 90-degree angle to the other, then apply light, even pressure as you slide them together. Rotate the top block until it is parallel with the bottom one.

When done correctly, the atmospheric pressure will hold them together securely. If the blocks don’t feel “sucked” together, separate them and repeat the cleaning process; any dust particle will destroy the wringing bond.

Care and Cleaning for Long-Term Block Accuracy

Precision tools are only as accurate as the care you provide them. Never store blocks in their measurement position; always break them apart, clean them, and apply a thin film of specialized gage oil before returning them to the case.

Avoid touching the contact surfaces with your bare fingers, as skin oils are acidic and can cause microscopic etching over time. Use a pair of tweezers or a lint-free cloth when handling your highest-grade sets.

If a block is dropped, it should be checked for burrs or nicks before being used again. A single raised burr will prevent proper wringing and render the entire set unreliable for sensitive work.

Precision starts with the tools you choose to establish your workspace baseline. By selecting the right blocks for your specific needs and maintaining them with care, you ensure that every project leaves the shop with the exact tolerances intended.
