6 Best Galvanized Steel Ties For Concrete Bracing

Structural integrity starts at the foundation and rises through the framing, yet concrete bracing is often the most overlooked phase of a project. When forms shift or trusses settle during the pour, the cost of remediation far outweighs the price of proper hardware. Selecting the right galvanized steel tie ensures that the structure holds its geometry under extreme pressure. This guide narrows down the top options to help stabilize concrete forms and framing with professional-grade reliability.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Simpson Strong-Tie HETAH: Best High-Tension Tie

The HETAH is designed for situations where high-tension forces could compromise the formwork. It excels in applications involving deep pours or heavy-duty gang forms where standard ties might fatigue or snap.

This tie is a staple for contractors handling complex commercial pours. Because it is engineered specifically for high-load scenarios, it provides the necessary peace of mind when structural movement needs to be kept to an absolute minimum.

When dealing with a high-wind zone or seismic-prone area, utilizing the HETAH ensures that the connection remains rigid. Avoid the temptation to swap this for a lighter-duty alternative just to save a few dollars; the labor cost of a form failure is far higher than the unit price of these ties.

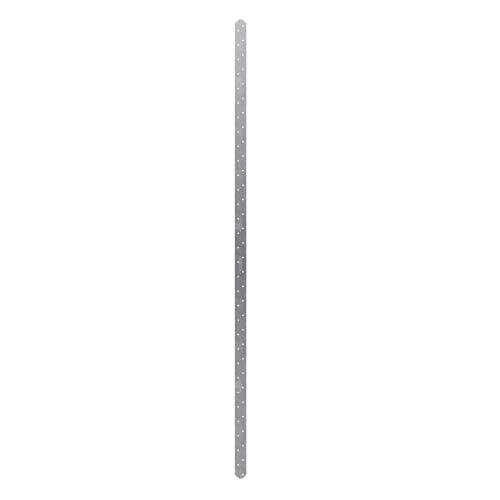

USP MSTA Strap Tie: Top Choice for Versatility

The MSTA strap tie is arguably the most adaptable piece of hardware for connecting wood framing to concrete foundations. Its flat, continuous design allows for easy installation across a variety of sill plate widths and wall configurations.

Versatility here comes down to the hole pattern. These straps are punched to accommodate both standard nails and specialized anchor bolts, meaning they can be adapted to almost any framing layout without needing to stock multiple SKU types.

If the project involves uneven rim joists or tricky corner assemblies, the MSTA can be bent or folded without losing its structural efficacy. Keep a box of these on the job site for those unexpected framing gaps that require a quick, code-compliant connection.

MiTek MTS16 Truss Tie: Best for Wood Truss Bracing

Truss bracing requires a fastener that can handle both the lateral load of the roof structure and the uplift pressure of wind events. The MiTek MTS16 is specifically crafted to lock trusses into the top plate securely.

Improper truss bracing is a leading cause of roof sagging and long-term structural failure. This tie features a reinforced design that prevents the truss from “walking” during high-wind events, maintaining the overall roof pitch and integrity.

When installing these, ensure the fasteners are driven through the designated holes into solid lumber, not just the sheathing. A tight, flush fit against the truss member is non-negotiable for achieving the rated uplift resistance.

Dayton Superior B-18: Best for Formwork Bracing

Formwork pressure is relentless, especially when using self-consolidating concrete that exerts significant hydrostatic force on the sides of the forms. The Dayton Superior B-18 is the standard for keeping forms perfectly vertical.

This tie system is built for speed and repeatability. In large-scale construction, where time-is-money is the primary driver, the B-18 allows for quick setup and teardown, significantly reducing the labor cycle on the job site.

Consider the thickness of the form panels when selecting these ties. Using a tie that is too long or short for the specific form thickness will result in “bowing,” which creates uneven wall finishes that are incredibly difficult to fix once the concrete sets.

Grip-Rite Galvanized Strap: Budget-Friendly Option

For general-purpose bracing and non-critical structural connections, the Grip-Rite galvanized strap is the go-to value proposition. It provides sufficient strength for secondary bracing tasks without the premium cost of high-tensile specialty ties.

This is the ideal solution for smaller residential projects or DIY work where the budget is tight but code compliance is still necessary. They are easily cut to length with tin snips, making them a “Swiss Army knife” for site-built bracing.

Use these for non-load-bearing partitions or simple temporary bracing during the curing process. Never use these as a replacement for high-tensile hardware on main load-bearing headers or structural columns.

Ellis Pro-Form P-300: Ideal for Wall Brace Duty

The Ellis Pro-Form P-300 is built specifically to address the nuances of wall bracing where verticality is the top priority. It locks the wall form into place, preventing the “drift” that occurs when concrete is poured at a high volume.

This hardware is particularly useful when pouring tall, thin walls that are susceptible to vibrating or shifting during the pour. It provides a level of stiffness that makes it the choice for projects requiring high-tolerance architectural concrete.

If the site is sloped, the P-300’s adjustable nature becomes its greatest asset. It allows for fine-tuning the alignment of the formwork even after the initial bracing is partially secured, saving hours of manual labor with a sledgehammer.

Galvanization Types: G90 vs. Hot-Dipped Explained

Galvanization is the sacrificial layer that protects the steel from corrosion, but not all coatings are equal. G90 refers to the weight of the zinc coating—0.90 ounces per square foot—which is the industry standard for light-to-moderate moisture exposure.

Hot-dipped galvanized, conversely, involves dipping the finished tie into molten zinc, resulting in a much thicker and more durable layer. For any connection that will be embedded in concrete near the ground level or in coastal environments, hot-dipped is the only safe specification.

If you are building in a high-moisture climate, prioritize hot-dipped hardware. The cost difference is negligible compared to the risk of internal rust weakening the connection over the next decade.

Understanding Load Ratings and Your Local Code

Every structural tie comes with a load rating—a specific amount of force it can withstand before failing—usually found in the manufacturer’s engineering data. These ratings assume perfect installation conditions, which are rarely achieved in the field.

Local building codes often mandate a “factor of safety,” meaning the actual load should never reach the maximum rating of the tie. Always check the IRC (International Residential Code) or the specific regional code for the wind or seismic requirements of the area.

Never guess the load requirements of a connection. If the plans call for a specific tie, use that tie or an equivalent with a higher rating; never downgrade based on availability or price.

Choosing the Right Fasteners for Your Steel Ties

A tie is only as strong as the nails or bolts holding it in place. Using standard framing nails in a high-tension strap will lead to “nail slip,” where the fastener elongates the hole in the metal, causing the connection to fail under pressure.

Always use the manufacturer-specified fasteners—usually structural connector nails or hot-dipped carriage bolts. These fasteners are designed to fill the hole completely, ensuring there is zero play between the tie and the wood.

If you find yourself using a palm nailer for tight spaces, ensure that the nail heads are seated flush against the strap. A slightly proud nail head can prevent a proper structural connection and leave the bracing vulnerable to vibration.

Steel Tie Installation: Key Mistakes to Avoid

The most common error is failing to use all the required fastener holes. Manufacturers determine the load rating based on a full complement of nails; skipping holes reduces the strength of the connection exponentially, not linearly.

Another frequent oversight is the use of incompatible metals. Fastening a galvanized strap to pressure-treated lumber without a proper barrier can lead to accelerated corrosion due to the chemicals in the wood reacting with the zinc coating.

Ensure all straps are installed flat. If a strap is kinked during installation, it loses its ability to handle tension properly and becomes a point of potential snapping. Take the time to get the alignment right the first time to avoid having to rip out partially finished work.

Proper bracing is the silent hero of a long-lasting structure. By matching the right galvanized tie to the specific load and environmental demands of the job, you guarantee that the foundation and frame remain locked in position for decades.
