6 Best Terminal Blocks for Complex Wiring Distribution

Effective electrical distribution in complex systems requires the same level of precision as flashing a chimney or securing a ridge vent. When wires are poorly terminated, the resulting heat and failure mirror the consequences of a leaking roof deck—hidden damage that grows until a catastrophic event occurs. Selecting the right terminal block simplifies long-term maintenance and prevents the common “spaghetti” wiring that plagues poorly managed control panels. Whether installing sophisticated moisture sensors or powering exterior lighting circuits, the integrity of the connection is non-negotiable.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

WAGO 221 Lever-Nuts: Best for Quick Connections

These lever-actuated connectors serve as the gold standard for versatility in tight, overhead, or awkward spaces. They allow for rapid, tool-free splicing of stranded or solid wires, acting as a modern alternative to traditional wire nuts.

In environments where vibration is a constant—much like a metal roof subjected to high-wind cycles—these connectors hold firm. The spring-loaded clamp ensures a constant, uniform pressure on the conductor, compensating for minor thermal expansion and contraction over time.

While they are excellent for junction boxes, they are not intended for heavy-duty industrial rail mounting. Use these for quick branch distribution where space is at a premium and speed of installation is the priority.

Phoenix Contact PTFIX: Best for Compact Panels

When interior panel space is limited, the PTFIX distribution block acts as a modular solution that saves significant real estate. These blocks can be snapped onto a DIN rail or mounted via adhesive to the side of an enclosure, mirroring the space-saving logic of using integrated gutter guards.

The push-in technology allows wires to be inserted directly without tools, providing a rock-solid, vibration-resistant connection. It eliminates the need for bulky busbars in small sub-panels.

For projects requiring high-density input and output management, these blocks simplify the transition from main power to multiple secondary devices. Choose PTFIX when maximizing every square inch of the enclosure is critical.

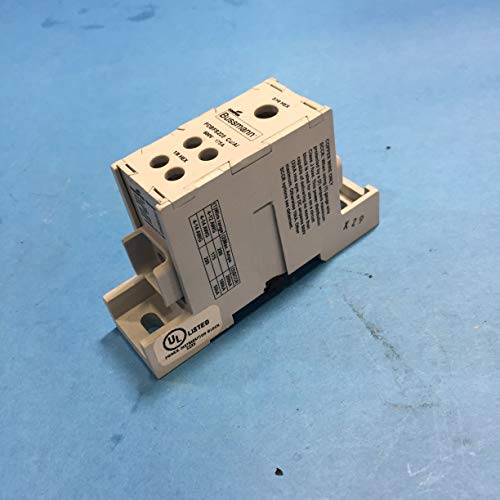

Eaton Bussmann PDB: Best for High-Amp Power

Large electrical loads require heavy-duty distribution that can handle high current without melting under pressure. The Bussmann PDB series is designed to function as the backbone of a system, much like the structural rafters supporting a heavy clay tile roof.

These blocks are built for durability and high short-circuit current ratings (SCCR). When working with large feeder cables that need to be split into smaller downstream circuits, these blocks provide a robust, reliable junction point.

Avoid using smaller, general-purpose terminals for high-amp primary circuits. Always verify that the SCCR of the block meets the specifications of the power supply to ensure safety under fault conditions.

Allen-Bradley 1492: The Industrial Standard

Allen-Bradley components remain the default choice for heavy-duty, long-term industrial projects due to their legendary track record. These terminal blocks are built for rugged environments where hardware is exposed to temperature extremes and mechanical stress.

The build quality is consistent, meaning the screw torque specs and physical dimensions are reliable across thousands of units. They offer a vast range of accessories, including jumper bars and marker strips that help keep complex wiring organized for decades.

If the job requires equipment that will last as long as a well-installed standing seam roof, look to this series. These blocks are the reliable workhorse for permanent, high-reliability installations.

TE Connectivity DBL: Most Versatile Distributor

The DBL series stands out for its flexibility, offering a multi-pole design that can be configured for various mounting orientations. It serves as a single-point connection block that can handle different wire sizes simultaneously.

The modular nature allows for quick configuration changes, which is beneficial when a project scope shifts during the rough-in phase. The input and output ports are clearly labeled, reducing the chance of human error during complex wiring sequences.

Consider this option when the circuit requirements are subject to change after the initial layout. Use DBL blocks for versatile setups that require easy adaptation to changing downstream electrical loads.

Weidmüller W-Series: Best for Secure Clamping

The W-series is favored by technicians who value the mechanical security of a threaded connection. The unique clamping yoke design ensures the wire is held securely against the busbar, providing a gas-tight connection that resists oxidation.

In humid or corrosive environments, these clamps maintain their integrity better than entry-level alternatives. This is similar to choosing high-grade stainless steel fasteners for a seaside roofing project to prevent galvanic corrosion.

If the application is in an area with high moisture or vibration, the W-series offers unmatched reliability. Specify these when the connection must be absolutely secure against environmental degradation.

Screw vs. Push-In vs. Lever: Which Type Is Best?

The choice of connection type dictates the long-term reliability of the system. Screw terminals offer the highest pull-out resistance and allow for precise torque settings, which is essential for heavy-gauge wiring.

Push-in terminals provide the fastest installation speed and are ideal for solid or ferruled stranded wires in clean, controlled environments. Lever connectors bridge the gap, offering the ease of push-in with the ability to release and reuse wires without damage.

When in doubt, consider the frequency of maintenance. If the circuit will never be touched again, a screw or high-quality push-in is fine; if troubleshooting is expected, levers offer a significant advantage.

Sizing Your Block: Amps Voltage and Wire Gauge

Proper sizing is the difference between a system that functions indefinitely and one that melts its own insulation. Always check the manufacturer’s data sheet to ensure the block is rated for the specific amperage and voltage of the circuit.

Matching the wire gauge to the terminal block’s capacity is vital. Inserting an undersized wire into a block designed for heavy cable leads to poor contact resistance and potential overheating.

Never exceed the temperature rating of the block’s housing material. Always round up on the block’s amp rating to account for heat rise in confined enclosures.

Installation Tips for Clean Professional Wiring

A clean panel is a safe panel, and organization is key to future maintenance. Group wires by function, use consistent wire coloring, and always incorporate proper cable management like ducting or spiral wrap.

Avoid excessive wire slack, but ensure enough length exists to re-terminate if a conductor fails at the tip. Use ferrules on all stranded wire to ensure even clamping pressure and to prevent individual strands from fraying.

Use clear, permanent labels on every wire end and terminal block. Labeling is the single most effective way to cut troubleshooting time in half during an emergency.

Code Compliance and Safety for Distribution Blocks

Compliance with the National Electrical Code (NEC) or local equivalent is not a suggestion; it is the baseline for safety. Ensure all terminal blocks carry the necessary UL or CSA certifications for the application.

Be aware of the environmental rating, such as IP or NEMA ratings, if the blocks are being installed in areas prone to dust, moisture, or chemical exposure. Improperly rated blocks will fail prematurely when exposed to the elements.

When working with critical power distribution, do not cut corners by bypassing required overcurrent protection. Always consult the local AHJ (Authority Having Jurisdiction) if there is any doubt about specific mounting or enclosure requirements.

Choosing the right distribution block requires matching the mechanical needs of the environment with the electrical demands of the system. Prioritizing high-quality, certified hardware prevents unnecessary downtime and ensures a safer, more organized result. By focusing on wire integrity, space optimization, and code-compliant installation, the finished work will stand the test of time.
