6 Best High Strength Washers For Load Distribution

Selecting the right washer is often the difference between a structure that stands firm for decades and one that develops fatigue or leaks within a few seasons. Standard hardware store washers rarely hold up under the immense stresses found in structural steel connections or heavy-duty timber framing. Professional-grade hardware must provide the surface area and load distribution required to prevent bolt pull-through and structural creeping. Relying on the wrong component at this stage effectively negates the strength of the entire fastener assembly.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

ASTM F436 Hardened Washer: The Industry Standard

[lasso id=”22595″]

The ASTM F436 washer serves as the workhorse for structural steel applications. Unlike soft, mild-steel hardware, these are through-hardened to withstand the high torque applied by structural bolting crews.

When tightening Grade 8 or high-strength structural bolts, standard washers will often crush or dish under the load. Using an F436 ensures the fastener maintains its clamp load, which is critical for joints relying on friction to prevent slippage.

Always verify the grade markings on both the bolt and the washer before installation. In structural inspections, an unhardened washer under a high-strength bolt is a primary cause for a failed site report.

Squirter® DTI Washer: For Verifiable Bolt Tension

[lasso id=”22596″]

Direct Tension Indicators, or DTI washers, remove the guesswork from tensioning critical connections. These washers feature small bumps that compress when the bolt reaches the correct tension, essentially acting as a mechanical gauge.

Contractors often prefer these on high-stakes projects where bolt elongation must be precise. Once the protrusions reach a specific gap, the connection is properly tightened, providing an immediate visual pass/fail indicator.

This technology eliminates the need for complex, time-consuming torque wrench calibrations on every single bolt. For critical infrastructure or heavy steel framing, the reliability of a DTI washer far outweighs the higher unit cost.

EPDM Bonded Sealing Washer: Best for Metal Roofs

[lasso id=”17669″]

Metal roofing panels depend on a watertight seal that must remain flexible throughout years of thermal expansion and contraction. EPDM (ethylene propylene diene monomer) bonded washers provide this by compressing against the metal panel to form a gasket.

If the installer over-tightens the fastener, the rubber can deform and lose its seal, creating a point for water ingress. Conversely, under-tightening leaves the rubber loose, allowing moisture to seep into the screw hole and initiate corrosion.

For low-slope metal roofs, these washers are non-negotiable for preventing leaks at the fastener penetration. Always check the UV resistance rating of the EPDM, as lower-quality rubber will dry-rot and crack under direct sun exposure.

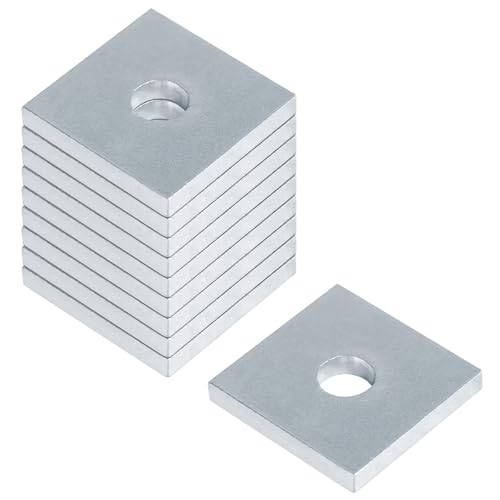

Heavy Duty Plate Washer: For Wood Connections

[lasso id=”22597″]

In heavy timber construction, the bearing surface of a standard circular washer is rarely sufficient to prevent the bolt head from sinking into the wood. Plate washers offer a significantly larger footprint to distribute the load across a wider area of the grain.

These are essential when dealing with softwoods or green lumber that may shrink over time. By increasing the surface area, the plate washer prevents the bolt from “crushing” the fibers, which maintains the integrity of the connection.

When sourcing, prioritize plates with adequate thickness to prevent them from bending under tension. A flimsy plate will deform, concentrating the force back into the center and defeating the entire purpose of the hardware.

Structural Beveled Washer: For I-Beams and Channel

[lasso id=”22598″]

When bolting through the tapered flange of an I-beam or channel, the nut or bolt head cannot sit flat against the surface. A structural beveled washer solves this geometric mismatch by providing a wedge-shaped profile that compensates for the slope.

Failing to use a beveled washer on a tapered flange creates uneven stress, which can lead to bolt fatigue or premature failure. These washers ensure the fastener load is applied squarely, preventing the bolt from bending under shear stress.

Installation requires careful orientation to ensure the taper perfectly offsets the angle of the beam. A misaligned beveled washer is often worse than no washer at all, as it creates an unintended point of high-pressure contact.

Hillside Washer: The Top Choice for Angled Bolts

[lasso id=”22599″]

Hillside washers are specialized components designed for structural rod or bolt assemblies that sit at an angle against a flat surface. They feature a spherical or curved contact area that allows the nut to seat perfectly even if the bolt is significantly out of square.

These are common in bracing systems or tie-rod installations where precise alignment is difficult to achieve. They essentially act as a swivel, accommodating the geometry of the bolt run without putting eccentric stress on the threads.

Do not substitute a hillside washer with a standard beveled washer; the two serve different mechanical functions. A hillside washer allows for a range of motion and alignment, whereas a beveled washer is strictly for a fixed, known slope.

Matching Washers to Bolt Grades and Strength

The strength of a washer must be equal to or greater than the strength of the bolt it supports. Matching a high-strength A325 bolt with a soft, generic washer is a recipe for a failed connection.

Always consult the project’s structural specifications to identify the required bolt grade. If the plans call for Grade 8 hardware, the washers must be rated for that same level of performance, or they will act as the weak link in the assembly.

When in doubt, use a hardened structural washer. It is significantly safer to over-spec the washer than to risk the structural degradation caused by using hardware that is too soft for the load.

Washer Finishes: Galvanized vs. Stainless Steel

The environment dictates the finish, not the preference of the installer. Hot-dipped galvanized washers are standard for exterior wood and structural steel projects, providing a thick, sacrificial layer of zinc to combat rust.

Stainless steel washers are mandatory for coastal areas or chemical-rich environments where galvanic corrosion is a high risk. However, be cautious when mixing stainless steel fasteners with dissimilar metals, as this can accelerate the corrosion process through electrolytic action.

Consider the life expectancy of the project before selecting the finish. If the connection is buried or exposed to constant moisture, investing in a high-grade finish now prevents expensive maintenance or structural failures later.

When to Use a Plate Washer Over a Standard One

Standard washers are sufficient for light-duty metal-to-metal connections where the surface area of the bolt head or nut is adequate. Plate washers are reserved for connections where the base material is soft, porous, or prone to compression.

Use plate washers whenever you are fastening through wood or composite materials that could crush under high bolt tension. They are also necessary when the hole in the material is oversized or slightly damaged, providing the extra coverage needed to secure the assembly.

A good rule of thumb: if the bolt head appears to be “disappearing” into the material, you need a larger plate washer. It is better to use a slightly larger plate than to risk the fastener losing its grip over time.

Common Washer Installation Mistakes to Avoid

The most common error is failing to tighten the bolt enough, which allows the washer to vibrate loose during thermal cycling. Conversely, over-tightening can crush the material, especially with wood or thin-gauge metal panels.

Always ensure the washer sits perfectly flat and centered on the bolt. A cocked or off-center washer creates uneven load distribution, which drastically reduces the structural capacity of the connection.

Never reuse washers that have been deformed, crushed, or rusted. A washer’s structural integrity is compromised once it has been subjected to its rated load, and it should be treated as a one-time-use component.

Selecting the right hardware for load distribution is a simple yet critical step in ensuring the safety and longevity of any construction project. By matching the washer type to the material, the bolt grade, and the environmental conditions, you effectively lock in the strength of your assembly. Pay attention to these details, and you eliminate the risk of failure at the most fundamental level.
