6 Best Metal Punch Tools for Steel Fabrication Worth Using

Precision in metal fabrication starts with the right hole. Whether installing custom flashing on a standing seam roof or framing out a structural steel shed, clean, burr-free holes are non-negotiable for fastener integrity. Choosing the wrong punch can leave jagged edges that compromise weather-tight seals or weaken the steel’s structural capacity. Relying on drill bits for thin-gauge metal often leads to “walking” and oversized holes that invite leaks.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Roper Whitney No. 5 Jr.: The Classic Manual Punch

The Roper Whitney No. 5 Jr. is the industry standard for a reason. Its compact size and lever-action design allow for immense pressure in tight spaces, making it a staple for field modifications on a roof deck.

When you need to adjust a gutter bracket or punch a hole in a custom piece of drip edge, this tool offers unmatched tactile feedback. Unlike electric tools, it provides total control, preventing over-punching in softer aluminum or thinner gauge steel.

Bottom line: Keep this in the pouch for small-scale adjustments and thin-gauge sheet metal work where portability outweighs raw power.

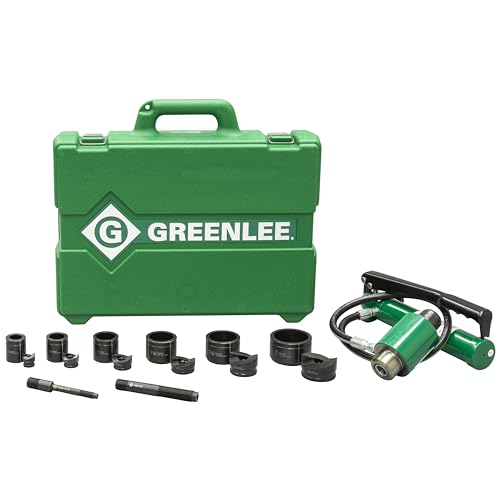

Greenlee 7306SB: The Pro’s Hydraulic Punch Kit

When the job involves punching through thick electrical boxes or heavy-gauge steel panels, manual effort simply fails. The Greenlee 7306SB utilizes hydraulic force to drive punches through steel with surgical precision, leaving clean edges that require zero filing.

This kit excels in commercial environments where standard sizing is strictly enforced for conduit and hardware. Because it relies on a draw stud system, it prevents the deformation often seen with hammer-style punches on expensive panel finishes.

Bottom line: Invest in this kit for professional electrical and mechanical installations where speed and hole quality are essential for passing inspection.

Mophorn SYK-8B Kit: Best Value Hydraulic Punch

The Mophorn SYK-8B provides a high-force hydraulic punch at a fraction of the cost of premium brands. While it may not feature the refined ergonomics of high-end industrial tools, its raw output makes it a workhorse for the occasional high-strength fabrication project.

It is particularly effective for shop-based fabrication of steel brackets or gussets. The trade-off is a heavier, more cumbersome manual pump, which makes it less ideal for repetitive, all-day field usage but perfect for the budget-conscious professional shop.

Bottom line: Choose this for the shop bench where cost-to-performance ratio matters more than lightweight portability.

Hougen-Ogura 75002.5PR: Ultimate Portable Punch

For contractors working on remote steel framing projects, the Hougen-Ogura is the gold standard for portability. It eliminates the need for trailing hydraulic hoses by integrating the pump and punch into a single, balanced unit.

This tool is designed to move across the job site, punching through structural steel beams without the setup time associated with larger systems. It excels in high-wind environments where stability and speed of fastener installation are critical to site safety.

Bottom line: Use this for structural steel assembly where efficiency and mobility on the framing grid are your primary concerns.

Malco HP18KR: Best Punch for Metal Stud Framing

The Malco HP18KR is purpose-built for the light-gauge metal framing industry. It simplifies the creation of pass-through holes for plumbing and electrical lines in metal studs, saving hours of drill time on large commercial framing projects.

Its punch-and-die action is specifically calibrated for the thickness of standard track and stud materials. Using this tool ensures the structural integrity of the stud remains intact, as it avoids the heat-affected zones that plasma cutters or torches might create.

Bottom line: This is the essential tool for framing contractors who want to avoid the mess of drill shavings and the weakness of oversized, jagged drill holes.

Baileigh IP-12: Top Benchtop Punch for Shops

The Baileigh IP-12 represents a serious upgrade for any fabrication shop that handles high-volume plate work. This benchtop unit provides the consistency and repeatability that field tools simply cannot match, ensuring that every hole is perfectly aligned.

Designed for heavy-duty cycle times, it reduces operator fatigue during long fabrication runs. If your shop is responsible for custom roof supports or heavy-duty mounting brackets, the rigidity of this machine ensures perfectly vertical holes every time.

Bottom line: Make this the centerpiece of a dedicated metal shop for precision, reliability, and high-volume output.

Manual vs. Hydraulic: Which Punch Do You Need?

Manual punches function via mechanical advantage, utilizing a lever to push a die through the material. They are excellent for thin sheets (under 16 gauge) and portability, but they reach their limit quickly when faced with thicker plate steel.

Hydraulic systems, conversely, use a pump to apply immense pressure consistently. They are essential for steel plate, structural beams, and repetitive tasks where user fatigue is a major factor.

Bottom line: Use manual tools for finish work and thin gauge, and reserve hydraulic systems for structural steel or high-volume throughput.

Matching Your Punch to Steel Gauge and Type

Material hardness dictates the success of a punch. Aluminum acts differently than cold-rolled steel, and stainless steel requires significantly more force and specific clearances to avoid work-hardening the edges.

Always verify the manufacturer’s max capacity for the material type you are using. A punch rated for 1/4-inch mild steel might fail or crack when used on high-strength alloy, leading to catastrophic tool failure.

Bottom line: Always consult the tool’s rating plate against the specific steel grade; if the material is thicker than the punch’s rating, do not force it.

Punch and Die Clearance: The Key to Clean Holes

Clearance refers to the gap between the punch and the die. If the gap is too tight, the tool requires excessive force and risks snapping the punch; if it is too wide, the material will bend and deform rather than shear cleanly.

For most roofing and framing applications, a standard clearance of 10-15% of the material thickness is ideal. This ensures the slug falls out cleanly without leaving a “burr” that can snag fingers or damage electrical insulation.

Bottom line: Match your die clearance to your material thickness to ensure the cleanest possible shear and the longest life for your tooling.

How to Maintain Your Punch for a Longer Life

Metal punches are high-stress tools. Regularly inspect the punch and die for dulling or chips, as a dull tool creates extra drag and increases the force required for every cycle.

Keep the sliding surfaces lubricated and the hydraulic oil clean in power units. A small investment in wiping down tools after each day’s use prevents corrosion, especially in high-moisture environments like a job site near the coast.

Bottom line: Treat your punch as a precision instrument; keeping it clean and sharp is the only way to ensure it remains a reliable asset for years.

Equipping your kit with the right punch is an investment in both speed and quality. By matching the tool’s mechanical strength to your specific material requirements, you eliminate the headaches of drilling, jagged edges, and structural fatigue. Choose based on your primary use-case—whether that is light-gauge finish work or structural steel fabrication—to ensure every hole you punch contributes to a safer, more professional build.
