7 Best Grounding Kits For Surveillance Equipment to Use

Surveillance cameras mounted on rooflines or exterior walls are sitting ducks for lightning strikes and localized power surges. Integrating these devices into a building’s electrical system without proper protection is a recipe for fried internal components and costly equipment replacement. A robust grounding strategy acts as the first line of defense against the high-voltage spikes that travel through data cables. Investing in the right hardware saves hours of diagnostic troubleshooting and protects the investment in high-end optical sensors.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

PolyPhaser IX-1GXE-A: Pro-Grade Surge Protection

The PolyPhaser IX-1GXE-A is built for environments where equipment reliability is non-negotiable. It utilizes gas discharge technology that excels at handling the rapid energy dissipation required during a nearby lightning strike.

This unit is specifically designed for high-speed data applications, ensuring that surge protection doesn’t come at the cost of network throughput. It is a preferred choice for professional installers who need to shield expensive PTZ cameras mounted on commercial steel-frame structures.

While the cost is higher than entry-level surge suppressors, the ruggedized housing stands up to the elements better than standard plastic enclosures. When the budget allows for industrial-grade protection, this unit provides a level of peace of mind that cheaper alternatives simply cannot match.

L-com AL-CAT6AHPJW: For Outdoor PoE Camera Setups

Outdoor Power over Ethernet (PoE) cameras face a dual threat: surges coming through the data line and those traveling along the power conductors. The L-com AL-CAT6AHPJW is engineered to handle both within a single, compact weather-resistant housing.

The unit supports Gigabit speeds, which is vital for modern 4K security cameras that require significant bandwidth. Installation on an exterior wall or near a soffit is straightforward, thanks to the integrated mounting brackets that keep the device secure against heavy winds.

This is an ideal solution for contractors working on residential builds where cables run long distances from the NVR to the camera. It effectively clamps the voltage before it can reach the sensitive network interface card in the camera itself.

Ditek DTK-120SRD: Best for Protecting Power Lines

Sometimes the surge doesn’t come from the network cable but through the primary 120V power supply. The Ditek DTK-120SRD provides a hardwired solution that clips onto a DIN rail or mounts inside a junction box, offering high-capacity protection for the power source.

For cameras that require a localized power supply rather than PoE, this device is the industry standard. It features LED status indicators that provide an immediate visual check, letting a maintenance crew know at a glance if the surge protection has been compromised.

Installing this in a weatherproof box near the camera base is essential for high-elevation mounting. When dealing with metal-clad buildings that are prone to static buildup, this power-side defense is just as critical as data-line grounding.

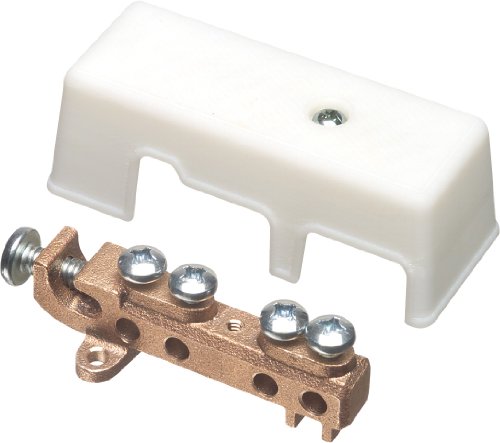

Arlington GBB5 Ground Bridge: Simple Solid Ground

The Arlington GBB5 Ground Bridge serves as a central hub for bonding multiple cables to a building’s existing ground rod. It is a fundamental piece of hardware for organizing the messy entry point where cables penetrate the exterior cladding.

This unit excels at providing a consistent, low-resistance path to ground for cable shields and coaxial lines. It eliminates the “spaghetti” effect of wires running to various grounding points, ensuring all equipment shares a common potential.

For projects where local codes strictly mandate a single-point grounding system, the GBB5 is the most efficient choice. It simplifies the inspector’s job and ensures the installation adheres to the NEC (National Electrical Code) standards for telecommunications grounding.

Times Microwave LP-BTRW-NMP: For Coaxial Systems

If the surveillance project involves analog or HD-over-coax cameras, the Times Microwave LP-BTRW-NMP is the gold standard for high-frequency protection. It is a heavy-duty, bidirectional gas-tube protector that is practically immune to the weather.

The construction is incredibly robust, featuring a nickel-plated brass body that resists corrosion in coastal environments. If a building is located in a high-salt or high-humidity zone, this is the only piece of gear that won’t turn into a rusted liability within two seasons.

While it is more expensive than generic coaxial lightning arrestors, the low insertion loss ensures the video signal quality remains crystal clear. Never sacrifice signal integrity for the sake of price when dealing with long coaxial runs; the maintenance calls alone will cost more than the price of this device.

Morgan-Mega M3-IPG75: Tough PoE Surge Protection

The Morgan-Mega M3-IPG75 is specifically built to handle the high power requirements of modern PoE+ and PoE++ cameras. Many cheaper surge suppressors fail under the load of high-draw infrared illuminators, but this unit is designed to carry the current without heating up.

The enclosure is weather-sealed and impact-resistant, making it a favorite for installations in areas where cameras might be exposed to flying debris or driving rain. It acts as a sacrificial barrier; it is much easier to replace a surge module than a camera mounted 20 feet up on a ladder.

Contractors often rely on this model for large-scale warehouse or perimeter security projects. It handles the cumulative stress of constant outdoor exposure while maintaining tight tolerances on surge clamping voltages.

ERICO Copper Ground Rod Kit: The Essential Anchor

Even the best surge protector is useless if it is not bonded to a proper earth ground. The ERICO Copper Ground Rod Kit provides the literal foundation for the entire surveillance system’s safety architecture.

These rods are constructed from high-strength steel with a thick copper coating to prevent galvanic corrosion in the soil. A poor-quality ground rod will eventually degrade, leading to high resistance and total failure of the surge protection system over time.

For any outdoor camera installation, the ground rod must be driven deep enough to reach moisture-rich soil to ensure a low-impedance path to earth. Always check for underground utilities before driving a rod, and ensure that the clamping hardware is rated for burial.

Why A Good Ground Is Non-Negotiable For Cameras

Cameras are sophisticated electronic devices with high-density circuit boards that operate at very low voltages. When lightning strikes or a utility power surge occurs, the voltage spike seeks the path of least resistance to the ground. If that path passes through the internal circuitry of a camera, the device will be destroyed instantly.

Without grounding, these devices serve as a bridge for electrical energy to move between the network cabling and the building structure. This not only risks the loss of the cameras but also creates a fire hazard within the building’s walls. Proper grounding is not an optional add-on; it is a critical safety requirement for both the electronics and the building envelope.

Key Steps for Installing a Proper Earth Ground

A grounding system is only as effective as its weakest connection point. Begin by ensuring the camera mount or junction box is bonded to the ground conductor using listed, code-compliant hardware. If the installation is on a metal roof, ensure the grounding lug is connected to the building’s structural steel or a dedicated ground rod.

Always maintain the shortest possible path between the surge protector and the grounding electrode. Excess wire length creates inductance, which slows down the surge protector’s response time. Finally, perform a continuity test between the surge protector ground terminal and the building ground electrode to confirm the circuit is complete.

Grounding Mistakes That Can Wreck Your Equipment

The most common error is the “daisy-chain” approach, where several surge protectors are grounded to each other rather than a central ground point. This creates potential differences that can lead to ground loops, causing static in video feeds and erratic behavior in camera controls. Another frequent mistake is using undersized grounding wire; always stick to the gauge recommended by the manufacturer.

Additionally, failure to maintain weather-tight seals around grounding connections often leads to rapid corrosion. Once the connection point rusts, the resistance increases, rendering the entire protection system ineffective. Remember, an installation is only as reliable as the final inspection of the connection joints.

When it comes to surveillance, the equipment is only as resilient as the infrastructure supporting it. Taking the time to properly ground each device prevents catastrophic failure and ensures the entire network remains operational when weather conditions turn severe. A disciplined approach to grounding is the ultimate hallmark of a professional installation.
