6 Best Frequency Analyzers For Harmonic Distortion Checks

When complex electrical issues crop up on a job site, identifying hidden harmonic distortion is often the difference between a quick fix and a recurring service call. High-end equipment and sensitive building controls demand clean power, yet poorly installed HVAC units or variable frequency drives can compromise the entire circuit. Choosing the right frequency analyzer ensures these irregularities are caught before they damage expensive hardware or trigger safety breakers. This guide breaks down the best diagnostic tools currently on the market to help maintain professional-grade electrical integrity.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Fluke 376 FC Clamp Meter: The All-Around Pro Pick

The Fluke 376 FC remains the gold standard for contractors who need a reliable, do-it-all diagnostic tool in a rugged chassis. It excels at measuring True-RMS AC/DC current and voltage, providing the accuracy required to identify harmonic ripples that might interfere with sensitive equipment.

Its standout feature is the iFlex flexible current probe, which is a lifesaver when dealing with crowded electrical panels or bundled cables in tight mechanical rooms. When you are working on a commercial roof with confined junction boxes, the ability to wrap the probe around awkward conductors is invaluable.

The inclusion of Bluetooth connectivity allows for real-time monitoring via a smartphone, letting a technician step back from a live panel while taking readings. For the professional who needs a tool that survives drops, moisture, and high-frequency noise interference, this meter justifies the premium price.

Klein Tools CL800: Best Value for Electricians

Klein Tools designed the CL800 to hit the sweet spot between advanced diagnostic capability and a price point that makes sense for everyday site use. It includes a dedicated low-pass filter, which is critical for smoothing out high-frequency noise and providing accurate voltage readings near motors and drives.

This unit is built to withstand the realities of construction, featuring a ruggedized housing that stands up to the typical knocks of a service truck or a crowded job site. The backlit display is sharp enough to read in direct sunlight, a major advantage when performing inspections on exposed rooftop electrical gear.

While it lacks some of the connectivity features found in more expensive models, it provides precise True-RMS readings that are often sufficient for 90% of general electrical troubleshooting. It is a workhorse choice for contractors who need to verify harmonic distortion levels without over-investing in unnecessary digital bells and whistles.

PicoScope 2204A: For In-Depth PC-Based Analysis

For those who need to see exactly what the waveform looks like rather than just reading a number, the PicoScope 2204A is the go-to solution. By connecting this device to a laptop, a user gains access to a full-featured oscilloscope capable of deep-dive harmonic distortion analysis.

This level of detail is necessary when diagnosing complex power quality issues that standard clamp meters fail to detect. It allows for the identification of specific harmonic frequencies that might be causing humming in high-end HVAC transformers or flickering in high-intensity lighting rigs.

While this approach is less convenient for quick, on-the-ladder checks, it is the superior choice for lab-bench testing or prolonged monitoring of a circuit. It is the tool of choice for the technician who refuses to guess and prefers to visualize the electrical distortion before recommending a fix.

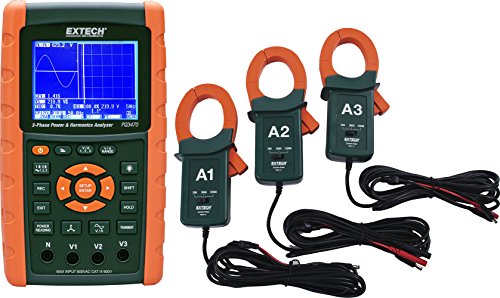

Extech PQ3470: The 3-Phase Commercial Workhorse

Managing power quality on commercial projects often involves dealing with 3-phase systems, where harmonic distortion can cause significant heat buildup and premature equipment failure. The Extech PQ3470 is engineered specifically for this level of heavy-duty testing and comprehensive load analysis.

This device logs data over extended periods, enabling the identification of intermittent distortions that only occur during specific operational cycles of a building’s mechanical systems. The ability to simultaneously monitor multiple phases allows for a holistic view of the electrical environment rather than isolated data points.

It is a heavier, more complex tool, making it less suited for quick roof-top troubleshooting but essential for site-wide power audits. For contractors responsible for large-scale electrical maintenance, the data logging capability is a necessary investment to protect the client’s mechanical infrastructure.

UNI-T UT243: A Solid Budget-Friendly Performer

The UNI-T UT243 is a specialized power clamp meter that brings harmonic analysis to a much more accessible price bracket. It provides a straightforward interface for measuring harmonics up to the 20th order, which covers the primary concerns in most residential and light commercial settings.

It is particularly useful for field-testing motor drives or large ventilation fans to ensure they aren’t dumping excessive noise back into the grid. The display clearly outlines power factors and harmonic content, allowing for a quick “pass/fail” determination during a standard maintenance check.

While the build quality may not be as robust as a high-end European or American brand, the performance metrics remain reliable for routine diagnostics. It is an excellent choice for a secondary tool or for the contractor who performs harmonic checks infrequently but requires the data when they do.

Amprobe ACD-51NAV: Top Mid-Range Power Clamp Meter

The Amprobe ACD-51NAV stands out for its intuitive navigation system, which makes accessing complex harmonic data remarkably simple. It combines standard True-RMS measurement with advanced power quality indicators, bridging the gap between basic clamp meters and full-scale power analyzers.

The standout feature is the large, easy-to-read screen that presents harmonic distortion percentages in a clear, organized fashion. This allows for quick decision-making when diagnosing why a specific motor might be running hotter than usual or why a circuit breaker is tripping under normal loads.

It represents a significant step up from entry-level meters, offering better protection against transients and more consistent results in noisy environments. For the contractor who wants a tool that is as fast as a standard clamp meter but smarter than a basic multimeter, the ACD-51NAV is an ideal daily driver.

What Is Harmonic Distortion and Why It Matters

Harmonic distortion occurs when non-linear loads, such as LED power supplies, variable frequency drives, or computers, distort the standard sine wave of an electrical supply. Instead of a smooth, clean wave, the current becomes jagged, which results in inefficient power usage and excess heat.

When left unchecked, this “noise” can lead to damaged motor windings, premature failure of circuit breakers, and mysterious equipment reboots. On a job site, ignoring these harmonics is a recipe for frustrated clients and costly callback trips.

Catching these issues early is vital for preserving the lifespan of electrical components, especially in modern “smart” buildings. If a system is running hot or making an unusual buzzing sound, the harmonics are likely the culprit, not a faulty component itself.

How to Safely Check for Harmonic Distortion

Always verify that the testing equipment is rated for the environment, particularly the CAT IV or CAT III safety standards, before clamping onto a live line. Use appropriate PPE, including insulated gloves and eye protection, even when dealing with low-voltage controls or lighting circuits.

Start by measuring the voltage and current at the load and compare it to the source to see where the distortion originates. Ensure the probe is securely seated and avoid touching exposed conductors; if the panel is exceptionally crowded, use a flexible probe to maintain a safe distance.

Always consult the building’s electrical plans before beginning, as high-frequency transients can sometimes feed back into unexpected areas. Never attempt to diagnose a system while it is wet or during active maintenance work, as moisture levels can drastically change the impedance of the circuit and introduce new hazards.

Key Features to Look for in a Frequency Analyzer

A true harmonic analyzer must feature True-RMS measurement, as standard average-responding meters will give incorrect readings in the presence of distorted waveforms. The low-pass filter is the most essential secondary feature, as it blocks high-frequency interference that can create false positives during a scan.

Data logging and connectivity are critical if the goal is to identify intermittent issues that occur outside of business hours. Portability matters too; if the device is too bulky to carry up a ladder, it will likely be left in the truck, rendering it useless for roof-top HVAC inspections.

Look for a wide range of harmonic order measurement, as higher-order harmonics can be just as damaging to sensitive electronics as the lower ones. A good balance between a high-contrast display and a rugged, drop-proof exterior will ensure the device remains usable for years in the field.

Reading the Results: What Do the Numbers Mean?

The Total Harmonic Distortion (THD) is the primary metric to watch; generally, a THD below 5% is considered acceptable for most industrial and commercial environments. When that number climbs above 8% or 10%, it serves as a red flag that the equipment is struggling and energy is being wasted as heat.

Look at the individual harmonic orders to see if a specific frequency is spiking; this can often point to the exact piece of equipment causing the issue. For example, a spike in the 3rd or 5th harmonic often points toward specific types of ballasts or motor controllers that need filtering or replacement.

Do not be discouraged if the numbers fluctuate slightly, as building loads change constantly throughout the day. However, a consistent, high reading requires immediate attention, as it indicates a structural issue with the power quality that could lead to a total system failure if left unaddressed.

Ultimately, mastering the use of a frequency analyzer transforms a general contractor into a power-quality expert. By catching harmonic distortion early, you provide a level of service that prevents equipment failure and ensures the long-term reliability of the buildings you work on. Investing in the right tool, keeping your safety protocols sharp, and learning to interpret the data correctly will pay dividends in project success and client trust.
