6 Best Junction Boxes For Fire-Rated Ceiling Assemblies

Fire-rated ceiling assemblies are the critical line of defense when it comes to preventing the rapid spread of flames and heat between floors. Selecting the correct junction box for these systems is not just about convenience; it is a code-mandated necessity that dictates the structural integrity of a building during a fire event. Using an standard, unrated box in a fire-resistive membrane is a major safety violation that can lead to failed inspections and catastrophic liability. Navigating the options requires understanding how these components maintain the integrity of the ceiling plane under extreme thermal stress.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Raco 239 2-Hour Fire-Rated Octagon Box: Best Overall

[lasso id=”27135″]

The Raco 239 stands as the industry standard for 2-hour fire-rated floor and ceiling assemblies. Its design effectively acts as a heat shield, preventing the rapid transfer of temperatures that would otherwise trigger a compromise in the drywall or ceiling material.

This box is particularly effective when working on projects where code officials demand strict adherence to UL-classified assemblies. Its pre-attached design features simplify the installation process, allowing for a consistent seal without the need for additional aftermarket modifications.

The bottom line is that the Raco 239 eliminates guesswork. It is the reliable choice for contractors who want to ensure a project clears the local inspector’s scrutiny on the first attempt.

Arlington FBC425 Fan/Fixture Box: For Heavy Loads

[lasso id=”20625″]

Weight distribution is the primary challenge when mounting ceiling fans in fire-rated environments. The Arlington FBC425 is engineered to handle the torque and mass of heavy fixtures while maintaining the airtight, fire-resistant seal required by code.

This box features an integrated mounting system that secures directly to the joists, ensuring that the heavy weight of a fan doesn’t cause the box to pull away from the ceiling plane. It solves the common problem of vibration-induced gaps that can form in cheaper, less rigid mounting systems.

Choose this box when the architectural design calls for large, heavy-duty lighting or mechanical cooling units. It balances structural load-bearing capacity with the necessary fire-stopping properties to satisfy safety standards.

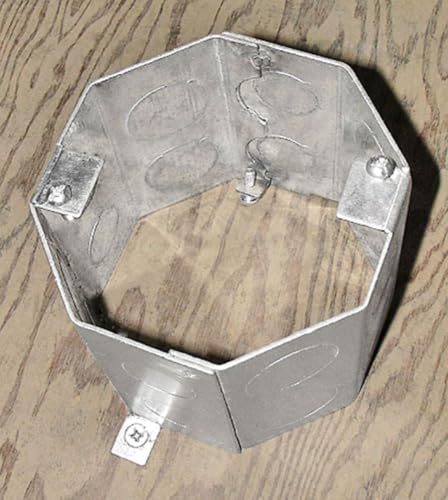

Garvin 54151-FR Fire-Rated Octagon Box: Top Value

[lasso id=”27136″]

For larger commercial jobs where the budget is tight but quality cannot be sacrificed, the Garvin 54151-FR is a smart investment. It offers the same fire-resistive performance as premium models but uses a streamlined design that keeps costs down.

This box integrates seamlessly into standard ceiling systems, often allowing for faster installation cycles. The build quality remains robust enough to handle the wear and tear of a busy job site, which is essential when the timeline is aggressive.

This is the preferred choice for bulk procurement. It provides the necessary safety ratings without the unnecessary complexity that drives up material costs on large-scale builds.

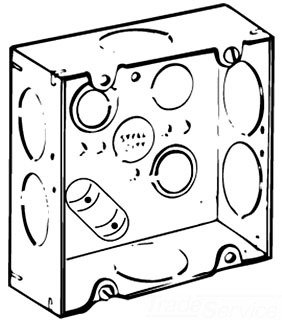

Steel City 72171-FR Square Box: For Multiple Conduits

[lasso id=”27137″]

When a ceiling assembly requires multiple circuit paths or complex wiring, a standard octagon box simply lacks the space for proper conductor management. The Steel City 72171-FR square box offers the volume needed to keep wires organized and heat levels manageable.

Having extra space prevents wire congestion, which is a common fire hazard in its own right. With multiple knockouts, this box accommodates complex conduit runs, making it an excellent candidate for commercial or institutional settings where wiring density is high.

Opt for this square configuration if the electrical layout is intricate. It ensures that the fire-rated barrier remains intact even when several conduits penetrate the assembly.

Caddy/Erico FEB Series Box: For Metal Stud Framing

Framing requirements in commercial construction often dictate the use of metal studs, which behave differently than wood under heat load. The Caddy/Erico FEB series is specifically engineered for these environments, providing a secure attachment point that resists the thermal expansion associated with steel framing.

This box simplifies the installation in metal-framed ceiling grids, where finding a secure anchor can often be frustrating. Its design ensures that the box stays flush against the finished surface, maintaining the integrity of the fire-rated membrane.

Use this system to streamline workflows in steel-heavy construction. It minimizes the time spent shimming or adjusting boxes to meet exact finish depths in drop-ceiling or suspended-frame applications.

Hubbell 936 Fire-Rated 4-Inch Square Box: Versatile

[lasso id=”27138″]

The Hubbell 936 is the chameleon of the fire-rated junction box market, offering high levels of adaptability for varying ceiling materials. Its robust construction ensures that it holds up under the weight of diverse fixture types, from standard LEDs to heavier industrial fixtures.

Versatility is the main advantage here. If a project has varying ceiling depths or unconventional structural layouts, the Hubbell 936 provides a dependable, code-compliant foundation that fits most standard installation scenarios.

Consider this box as a reliable “go-to” for general contracting. It provides the flexibility needed to handle unexpected changes in the field without requiring a trip back to the supplier for specialized hardware.

What Makes a Junction Box “Fire-Rated”?

A standard electrical box is designed to hold wires; a fire-rated box is designed to hold back fire and smoke. These boxes are constructed with specialized materials, often including intumescent coatings, which are designed to expand when exposed to high heat.

When the fire occurs, the intumescent material fills the gaps and voids around the wire penetrations. This prevents the passage of flame and hot gases through the box and into the floor assembly above or behind the ceiling membrane.

Without this expansion, the junction box acts as a chimney, pulling heat into the cavity and accelerating the fire’s progress. The rating is determined by how well the box protects the ceiling assembly’s integrity over a set period.

Understanding 1-Hour vs. 2-Hour Fire Ratings

The distinction between a 1-hour and 2-hour rating refers to the duration the assembly can withstand direct flame exposure before failing. A 2-hour rating provides a significantly higher margin of safety, which is usually required in multi-family dwellings or commercial corridors.

Think of these ratings as an insurance policy for the structural lifespan of the building. A 2-hour box must meet more rigorous testing standards than a 1-hour version, specifically regarding its ability to maintain a seal under longer periods of intense heat.

Always check the local building code for the specific requirement of the project. Never assume a 1-hour box is sufficient if the structure is classified for a 2-hour fire-resistive assembly.

Key Installation Tips for Fire-Rated Assemblies

Installation is just as important as the box itself. Any gap larger than 1/8 inch around the perimeter of the box must be addressed with fire-rated sealant or specialized gaskets.

Ensure that all conduit connectors are tight and properly seated. If the conduit is loose, the fire-rated seal is essentially bypassed, allowing heat and smoke to enter the ceiling plenum.

Double-check the box depth against the thickness of the ceiling finish. The box should be flush with the finished surface to ensure a proper, code-compliant fire-stop installation.

Firestop Putty Pads: When and How to Use Them

When a junction box does not have an integrated fire-rated backing, putty pads become the essential secondary measure. These pads are wrapped around the exterior of the box, expanding during a fire to create a protective barrier.

Use these in any scenario where the box leaves a void in the fire-rated membrane. They are simple to apply and highly effective, but they must be rated to match the fire-resistance time of the wall or ceiling assembly.

Do not skip this step on the assumption that the box alone will suffice. Putty pads are an inexpensive addition that drastically increases the total system safety, particularly in retrofit projects where the original framing might have been compromised.

Selecting the right junction box for fire-rated ceilings is a fundamental step in ensuring the safety of any structure. By matching the box type to the building’s fire-resistance requirements, contractors and homeowners can prevent hidden risks and ensure long-term regulatory compliance. Prioritize these components early in the design phase to avoid the high cost of rework and the even higher cost of a compromised fire barrier.
