Efficient power distribution is the backbone of any reliable low-voltage control system, whether managing site lighting or industrial equipment. Improper connections often lead to voltage drops or thermal failure, much like how a poorly sealed drip edge leads to structural rot over time. Selecting the right jumper ensures that circuits remain stable under heavy loads. Consistent power flow prevents the intermittent equipment failures that waste valuable labor hours on the job site.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Bussmann Jumper Bar: Pro Choice for RTMR Panels

The Bussmann series is the gold standard when using RTMR (Rear Terminal Mini Relay) panels for complex vehicle or equipment wiring. These bars allow for rapid ganging of inputs, drastically reducing the clutter of individual wire leads.

When working in cramped, high-vibration environments, the rigidity of a solid bar is a major advantage. Unlike loose wires, these bars cannot fray or loosen due to constant oscillation.

Efficiency in a control box matters just as much as efficiency on the roof deck. By minimizing the number of individual crimps, the risk of a loose connection—the “weak link” in any system—is essentially removed.

WAGO TOPJOB S Jumper: Best for DIN Rail Systems

DIN rail systems require precision, and the WAGO TOPJOB S jumpers are engineered for high-density terminal block configurations. These push-in jumpers slide into place with a satisfying snap, providing an instantaneous, secure link between adjacent blocks.

Maintenance is significantly easier with these units because they can be removed or swapped without disturbing the surrounding wiring. This is a critical feature when managing modular control cabinets where circuit requirements might shift during the commissioning phase.

Always verify the current rating of the specific jumper strip against the terminal block capacity. Using a standard jumper on a high-amperage block is a recipe for a meltdown, just as using under-rated fasteners on a high-wind-zone roof invites uplift failure.

Blue Sea Systems Jumper: Top Marine-Grade Option

Marine-grade components are built to survive the harshest environmental conditions, making them ideal for exterior equipment enclosures exposed to humidity or salt air. Blue Sea Systems jumpers are designed for durability and corrosion resistance, ensuring a long service life.

These jumpers excel in applications where vibration and temperature fluctuations are constants. Their heavy-duty construction mirrors the structural integrity required in high-end exterior finishes where fasteners must hold firm for decades.

In environments with high condensation risk, the quality of the plating on these connectors matters immensely. Investing in marine-grade hardware here is the electrical equivalent of choosing stainless steel screws for a coastal deck project.

Nilight Jumper Kit: Best All-in-One Value Pack

For small, non-critical projects or hobbyist installations, the Nilight jumper kits provide a budget-friendly solution that covers a variety of common configurations. These packs are convenient for keeping on the truck when you need to troubleshoot a circuit on the fly.

While they lack the heavy-duty industrial ratings of high-end brands, they are perfectly functional for basic lighting or auxiliary power tasks. Use them where the system is not subjected to extreme, constant-duty cycle loads.

Think of these as the “general-purpose” nail of the electrical world. They work well for everyday tasks, but avoid using them in life-safety or high-amperage industrial motor control circuits.

DIY Fork Terminal Wires: The Custom Jumper Fix

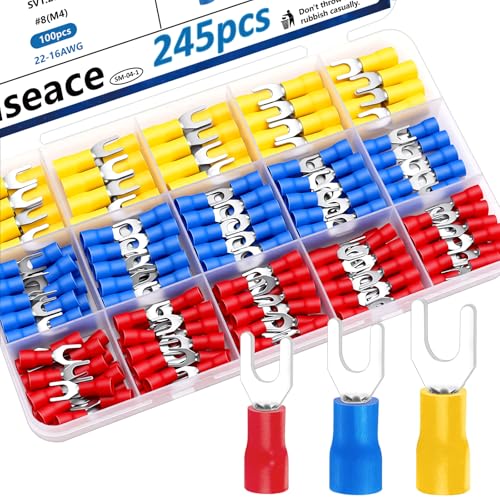

Sometimes off-the-shelf jumpers simply won’t fit the unique layout of a custom panel. Fabricating your own links using high-quality wire and fork terminals allows for precise routing around obstacles.

The secret to a reliable DIY link is in the crimp. Use a professional-grade ratcheting crimper rather than basic pliers to ensure a gas-tight seal on the terminal. A poor crimp will eventually oxidize, creating high resistance that generates heat under load.

Never use thin-gauge wire for a high-current bridge. Always match the gauge of your jumper wire to the smallest wire currently in the circuit to avoid creating a bottleneck.

TE Connectivity Jumper: For OEM Harness Builds

TE Connectivity offers specialized jumpers that integrate seamlessly with professional-grade harness systems. These are the components specified for OEM builds because of their proven track record in high-density, critical-use environments.

These components are designed for high-cycle environments where reliability is non-negotiable. If the project involves expensive sensors or complex PLC (Programmable Logic Controller) inputs, stick to these engineered solutions rather than generic alternatives.

Compatibility is the primary benefit here. TE Connectivity parts ensure that your custom additions to an existing harness don’t compromise the integrity of the original manufacturer’s engineering.

Choosing the Right Jumper Gauge for Your Amperage

Selecting the wrong gauge is the fastest way to turn a terminal block into a fire hazard. The rule is simple: the jumper must be capable of carrying the total amperage of all the circuits it bridges.

• 10-12 AWG: Essential for main power distribution and heavy-duty relay banks.
• 14-16 AWG: Ideal for standard relay control circuits and accessory switching.
• 18-20 AWG: Reserved for signal-level circuits or low-draw sensors only.

Always check the manufacturer’s datasheet for the jumper’s continuous current rating. If the load is close to the limit, size up; heat dissipation is key to long-term circuit stability.

Bus Bar vs. Wire Jumper: Which Fits Your Project?

Bus bars are superior for high-current, high-density applications where neatness and rigidity are paramount. They eliminate the “rat’s nest” effect of multiple wires, making it infinitely easier to trace a circuit during a service call.

Wire jumpers provide flexibility in tight or irregular spaces where a rigid bar would be impossible to install. They are better suited for “daisy-chaining” across different levels or sections of a panel.

Consider the heat generated by the connections. A solid bus bar acts as a heat sink, whereas individual wires concentrate heat at the terminal crimp points. If the system is running at 80% capacity or higher, a bus bar is generally the safer, more robust choice.

Installation: Crimping for a Low-Resistance Link

A jumper is only as good as the connection point. Whether using a factory-made bar or a DIY wire link, ensure all screws are tightened to the torque specification provided by the terminal block manufacturer.

Over-tightening can strip the screw threads or damage the terminal housing. Under-tightening will lead to arcing, which causes pitting and carbon buildup on the contact surfaces, eventually leading to a complete circuit failure.

Always check the connection for mechanical tension. If the wire or jumper moves when tugged gently, the connection is insufficient. A proper link should feel as solid as a structural bolt connection in a steel frame.

When to Use Jumpers in a Relay or Fuse Block

Jumpers are most effective when distributing a single power source to multiple relay inputs or fuse positions. They reduce the number of individual connections that need to be made, simplifying the overall architecture of the board.

Only use jumpers when the total load on the bridge does not exceed the terminal block’s rating. If adding a jumper requires running the total circuit load through a single terminal point, verify that point is rated to handle that combined current.

Use jumpers to streamline your build, but never use them as an excuse for sloppy wiring. If a circuit requires a separate power source for isolation, skip the jumper and run a dedicated feed.

Selecting the right jumper component is about balancing durability, current requirements, and the physical constraints of the workspace. By focusing on proper gauge selection and high-quality termination, these links will provide a secure, long-lasting foundation for any relay or fuse distribution system.
