6 Best Steel Mounting Bolts For Heavy Duty Vibration

Vibration is the silent enemy of any structural assembly, particularly when dealing with rooftop equipment mounts, metal panel supports, or industrial HVAC curbing. A fastener that holds tight under static loads often fails quickly when subjected to the harmonic oscillations of wind shear or mechanical equipment cycling. Selecting the right steel mounting bolt requires understanding how tension and friction work together to keep a joint intact. This guide breaks down the best options to ensure structural integrity remains uncompromised over the long term.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Nord-Lock Wedge-Locking Bolt: Ultimate Security

When equipment is mounted on a rooftop, the constant hum of a fan or the pulse of a compressor can vibrate standard fasteners loose in weeks. Nord-Lock uses a cam-rise principle that makes it physically impossible for the bolt to rotate loose under vibration.

The system relies on a pair of washers with cams on one side and radial teeth on the other. Because the cam angle is greater than the pitch of the bolt thread, the assembly creates a wedge effect that locks the bolt in place.

These are the go-to solution for mission-critical mounts where failure is not an option. While the upfront cost is higher than standard hardware, the labor savings from not having to perform recurring tension checks pay dividends quickly.

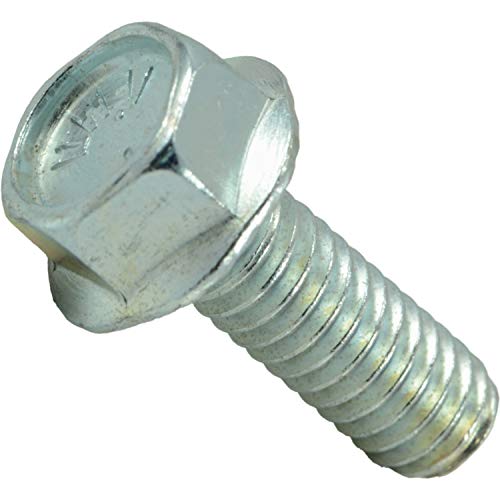

Grade 8 Serrated Flange Bolt: Best All-Rounder

If the project involves fastening steel beams or mounting heavy purlins where accessibility is tight, the serrated flange bolt is the workhorse of the industry. These bolts provide a high tensile strength that handles extreme loads while the built-in serrations act as a locking mechanism.

The flange replaces the need for a separate flat washer, which speeds up installation time significantly on large-scale framing jobs. The serrations bite into the mounting surface, creating significant frictional resistance against loosening.

However, be cautious: these bolts can damage soft surfaces or light-gauge metal if over-torqued. Reserve them for structural steel connections where that biting action won’t deform the base material.

Stage 8 Locking Bolt: Zero-Failure Performance

For applications where the assembly is subject to extreme, high-frequency vibration, Stage 8 provides a mechanical positive lock. Unlike threadlockers that rely on chemical bonds, these use a bridge plate that slides over the bolt head and is secured with a snap ring.

This design ensures the bolt cannot turn even a fraction of a degree. It is the gold standard for high-performance automotive and heavy industrial machinery mounts that endure constant, jarring force.

If the job is located in a high-wind area where roof-mounted mechanical units undergo significant stress, this is the most reliable way to prevent hardware walk-out. It eliminates the “human factor” of relying on perfect torque every time.

A325 Heavy Hex Structural Bolt: For Peak Loads

When building or reinforcing structural steel frames, A325 bolts are the industry standard. These are designed for “slip-critical” connections where the strength of the assembly depends on the friction between the two mating steel surfaces.

They are typically installed using the “turn-of-nut” method to ensure high clamping force. They are not intended for use in loose-fit assemblies; they require robust, rigid backing to achieve their rated structural capacity.

For major roof-level framing or supporting heavy gantry systems, these bolts are non-negotiable. Always check local building codes for proper tensioning requirements, as these often require specialized calibrated torque wrenches for installation.

HuckLok Blind Bolt: For Inaccessible Spaces

Sometimes, you need a high-strength connection but can only access the mounting hole from one side. Standard bolts are useless here, and cheap fasteners often vibrate loose under load. The HuckLok is a structural blind fastener designed to handle high-vibration environments.

The fastener expands on the blind side to create a large bearing surface, effectively “clamping” the materials together like a rivet but with the strength of a high-grade bolt. It is ideal for mounting metal panels to hollow structural sections or steel tubes.

Because they are permanent, they don’t require the maintenance associated with traditional threaded bolts. If you are mounting signs or small-scale equipment to a closed steel box beam, this is the most effective choice.

Bolts with Pre-Applied Loctite: Simple & Secure

Many contractors prefer fasteners that come pre-treated with a micro-encapsulated threadlocker. These bolts have a small patch of adhesive on the threads that activates once the bolt is torqued down, filling the gaps between threads.

This prevents moisture from entering the threads while providing a significant barrier against vibration-induced loosening. It is a fantastic “set it and forget it” solution for general-purpose rooftop mounting where extreme heat or cold might break down standard liquid threadlockers.

It simplifies the job site by removing the step of manually applying liquid adhesive to hundreds of bolts. Just ensure the bolt is clean and dry before installation to get the best adhesion.

Bolt Grades Explained: Grade 5 vs. Grade 8 vs. A325

The grade markings on a bolt head are not suggestions; they dictate the metallurgy and load capacity of the fastener. A Grade 5 bolt is a standard, medium-carbon steel bolt suitable for light structural work but prone to stretching under heavy, sustained load.

Grade 8 bolts are tempered alloy steel, significantly harder and stronger than Grade 5. They should be the minimum spec for high-vibration environments because they resist permanent deformation better than their lower-grade counterparts.

A325 bolts sit in a different category entirely, engineered specifically for heavy structural steel work where clamping force is the primary objective. Never substitute these grades; a stronger bolt is not always better if the base material cannot support the tension without yielding.

How to Properly Torque Bolts for Vibration Control

Torquing is about achieving the correct clamping force, not just “tightening the nut.” If a bolt is under-torqued, the vibration will cause it to walk out; if it is over-torqued, the bolt can reach its yield point and snap or lose its spring tension.

Use a calibrated torque wrench for every critical connection. For high-vibration applications, the bolt must reach its specified preload to ensure the internal friction is high enough to resist shear forces.

Always follow the manufacturer’s torque chart for the specific bolt grade and diameter being used. If you are working in extreme temperatures, account for thermal expansion, as this can change the effective clamping pressure on your mounts.

Choosing a Locking Method: Washers vs. Threadlocker

Deciding between mechanical locking washers and chemical threadlockers usually comes down to the environment. Mechanical systems, like wedge-locking washers, are better for high-heat environments where liquid adhesives might degrade or lose their holding power.

Chemical threadlockers are superior for preventing corrosion within the threads, as they create a seal against the elements. However, they are difficult to use in the field if the fasteners have any residual oil or debris on the threads.

In high-vibration rooftop applications, a belt-and-suspenders approach is sometimes necessary. Pair a high-grade bolt with a mechanical locking device rather than relying on chemicals alone, especially if the structure is subject to regular wind movement.

Galvanized vs. Stainless: The Right Bolt Material

Environment is the deciding factor for material choice. Hot-dipped galvanized steel is excellent for most outdoor construction because the zinc coating provides a sacrificial barrier against rust.

Stainless steel is the requirement for coastal zones or areas with high chemical exposure, such as near industrial vents. However, stainless steel is prone to “galling”—a process where the threads bind and weld themselves together during installation.

Always use an anti-seize lubricant with stainless steel bolts to prevent them from locking up before they are fully tightened. Never mix stainless bolts with galvanized steel frames without an isolation layer, as galvanic corrosion will quickly weaken the joint.

Selecting the right mounting hardware is just as critical as the framing itself when dealing with heavy-duty vibration. By matching the bolt grade and locking method to the specific needs of the job, structural failure is easily avoided. Remember that the best fastener is only as good as its installation; prioritize proper torque and material compatibility to ensure your work stands the test of time.
