6 Best Mounting Plates For Structural Integrity

A mounting plate is the single most critical failure point in any rooftop array. If the seal fails, water intrusion destroys the decking and structure long before the solar panels reach the end of their lifespan. Selecting the right hardware requires balancing structural uplift requirements with the specific physical profile of the roofing material. This guide evaluates six industry-standard mounts that prioritize structural integrity and long-term waterproofing performance.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Quick Mount PV QM-101: Best for Asphalt Shingles

The QM-101 remains the industry benchmark for shingle roofs because it addresses the core weakness of traditional flashing: reliance on sealant alone. By incorporating a stainless steel flashing that slides under the existing course, it creates a robust, multi-layered water barrier.

This mount is designed to integrate seamlessly with the asphalt shingle overlap. When installed correctly, the flashing acts as a secondary roof, shedding water away from the penetration point rather than fighting against it with mastic.

Avoid the temptation to use generic L-feet with excessive roofing cement on shingles. Opting for the QM-101 ensures a code-compliant, flashed penetration that maintains the integrity of the shingle drainage plane.

IronRidge FlashFoot2: Pro Solar Installer’s Pick

Speed and reliability are the twin mandates of a professional solar install, and the FlashFoot2 delivers on both. It features a unique elevated design that allows for proper flashing coverage without needing to pry or rip shingles during installation.

The real advantage lies in its structural load distribution. The circular flashing design creates a wide-reaching footprint that spreads wind uplift forces across the decking, reducing the risk of localized fastener pull-out.

Contractors favor this mount because the post-height adjustment is built-in, saving time during the leveling phase of the racking assembly. It is a workhorse that performs consistently across most residential asphalt roofing systems.

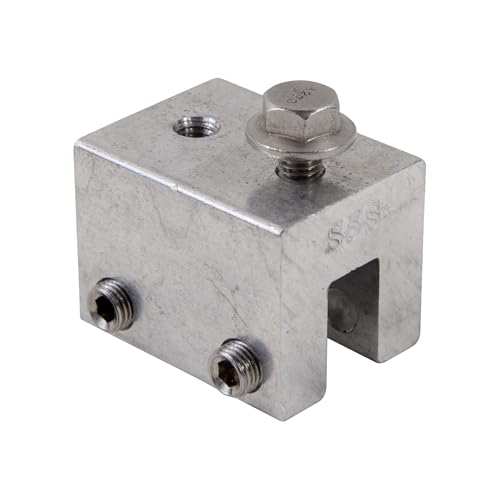

S-5-U Mini Clamp: Top Choice for Standing Seam Metal

Standing seam metal roofs are prized for their longevity, but they become liabilities if installers penetrate the metal with lag bolts. The S-5-U Mini Clamp avoids this entirely by gripping the vertical seam instead of puncturing the roof.

The design utilizes a rounded nose setscrew that dimples the seam material without shearing it. This maintains the thermal movement capabilities of the metal panels, which is vital on roofs subject to significant expansion and contraction cycles.

Always verify the seam profile before specifying these clamps. If the roof has a snap-lock or unusual rib shape, ensure the clamp profile matches perfectly to prevent slippage under heavy snow loads or high wind shears.

EcoFasten GreenFasten+: Versatile Waterproof Mount

The GreenFasten+ stands out for its use of patented compression technology that seals the penetration point tightly against the roof deck. It is particularly effective in regions where thermal expansion is high, as the mount is engineered to accommodate minor structural shifts.

The system is highly versatile, often compatible with various racking brands, making it a go-to for complex jobs where material consistency is required across different roof sections. The stainless steel composition ensures it will not react electrochemically with aluminum components.

Keep in mind that this mount requires a precise pilot hole to function as intended. If the installer drills too large a hole, the compression seal will fail to create the necessary watertight gasket, rendering the entire system compromised.

RT-MINI II Mount: Easiest Install for Solar Racking

The RT-MINI II is favored for its simplicity, particularly in projects where cost-efficiency and installation speed are the primary drivers. It is a surface-mounted solution that utilizes a high-grade butyl sealant tape to create a barrier between the mount and the roof surface.

This mount works exceptionally well on TPO, PVC, and EPDM flat or low-slope roofs where traditional flashing is difficult to apply. The butyl backing provides an instant, airtight bond that cures over time to form a nearly permanent seal.

While fast, the efficacy of the RT-MINI II relies entirely on surface preparation. The roof membrane must be cleaned thoroughly with a compatible solvent; if there is dust, grit, or oily residue, the adhesion will fail, leading to leaks within a few seasons.

Chemlink M-1 Mount: Best Adhesive-Based Solution

The Chemlink approach moves away from mechanical fasteners for certain light-load applications, relying instead on high-performance structural adhesives. This is the ideal solution for roofs where the structural warranty forbids any deck penetrations.

Because it uses chemical bonding, there is zero risk of water entry through a bolt hole. However, it requires a strict adherence to temperature and curing protocols to reach its full rated load capacity.

This system is not for every job; it is best suited for secondary arrays or lighter equipment where high wind uplift is not the primary concern. Always consult the adhesive manufacturer’s technical data sheet regarding surface compatibility and pull-out strength before installation.

Choosing the Right Mount for Your Roof Type

• Asphalt Shingles: Prioritize flashed mounts like the QM-101 to maintain the drainage plane.
• Standing Seam Metal: Use seam clamps to avoid deck penetrations and maintain thermal expansion gaps.
• Flat/Membrane Roofs: Use adhesive or specialized membrane-compatible mounts like the RT-MINI II to ensure a chemical bond.
• Corrugated Metal: Use specialized mounting plates that seal against the raised ribs rather than the valleys, where water pools.

Installation 101: Don’t Compromise Your Roof

Proper installation is always more important than the brand of the mounting hardware. The most common cause of roof leaks after a solar install is not the mount itself, but the failure to properly integrate the flashing with the existing underlayment.

Always ensure the top of the flashing is tucked beneath the shingle course above the penetration. If the flashing is merely sat on top of the shingles, water will eventually work its way behind the mount and into the roof structure.

Load Ratings & Uplift: What You Need to Know

Wind uplift is a force that wants to tear your solar array off the roof during a storm. All mounts have a certified pull-out strength, which must be cross-referenced with your local building codes and the wind speed zones of your area.

If a roof is older, the deck may not have the holding power to support high-wind uplift ratings. In such cases, structural blocking or additional fasteners may be required to reinforce the deck from the underside before mounting.

Mounting Plate FAQ: Your Questions Answered

Can I reuse mounting plates if I replace my roof? It is generally advised to replace mounting hardware during a roof replacement. The gaskets and seals have a finite lifespan, and the cost of the mount is negligible compared to the cost of repairing a leak later.

How do I know if my deck is strong enough? Consult a structural engineer or a professional roofer. If the wood decking is soft, rotted, or less than 1/2-inch plywood, it likely will not hold the fasteners securely under high-wind conditions.

What is the best way to clean a roof before adhesive mounting? Use the specific solvent recommended by the manufacturer. Avoid soap or household detergents, as they often leave residues that inhibit the bond of high-strength structural adhesives.

Selecting the right mounting plate is the difference between a project that adds value and one that creates a long-term liability. By matching the mechanical properties of the mount to the specific demands of the roof structure, you ensure that the installation remains secure and watertight for decades. Prioritize products that emphasize structural load distribution and integrated flashing to protect the building envelope.
