7 Best Pipe Clamps For Overhead Mounting Pros Trust

Overhead pipe mounting is where a fast job often turns into a major liability if the hardware isn’t up to the task. Gravity never takes a day off, and vibration from mechanical systems can shake sub-par clamps loose in a matter of months. Choosing the right hanger isn’t just about pipe diameter; it is about accounting for thermal expansion, seismic activity, and the integrity of the substrate above. Relying on the wrong fastener leads to sagging lines, damaged ceilings, and callbacks that eat into project margins.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Eaton B-Line B2000 Strut Clamp: The Pro Standard

The B2000 is the industry benchmark for a reason, offering a balance of structural rigidity and ease of installation. It slides directly into standard 1-5/8 inch strut channels, making it the go-to for complex mechanical runs where multiple lines need to be suspended in parallel.

The bolt-and-nut design allows for minor field adjustments without needing to disassemble the entire run. When tightening, the clamp bites into the strut channel, providing a secure friction fit that resists lateral shifting. This is vital in environments with high foot traffic above or heavy HVAC equipment cycling nearby.

Avoid overtightening on thin-walled copper or PVC, as the steel body can easily deform the pipe if forced. Stick to the B2000 when working with steel pipe or heavier-duty plumbing where the clamping force needs to be absolute.

Anvil FIG 260 Cushioned Clamp: Best for Vibration

Vibration is the silent killer of overhead pipe installations. Without a cushioned clamp, the metal-on-metal contact between the pipe and the hanger will eventually wear through the pipe wall or create annoying harmonic humming throughout a building.

The FIG 260 incorporates a thermoplastic elastomer cushion that isolates the pipe from the hanger. This is essential for discharge lines on pumps or compressor piping where constant pulses travel through the system. It effectively damps noise and prevents galvanic corrosion by acting as a dielectric barrier.

Keep in mind that these clamps occupy more vertical space than standard clevis hangers. Account for this added profile during the design phase to avoid clearance issues with ductwork or low-hanging joists.

Caddy EBC Beam Clamp: For Mounting to Steel Beams

Drilling into steel beams is a structural nightmare that most inspectors will flag immediately. The Caddy EBC is the primary solution for attaching threaded rod to structural steel without compromising the beam’s integrity.

This clamp utilizes a set-screw mechanism that bites into the flange, creating a mechanical lock that increases in grip as the load is applied. It is ideal for industrial or commercial builds where the overhead structure is exclusively wide-flange steel.

Always ensure the set screw is tightened to the manufacturer’s specified torque. A loose beam clamp is a hazard that can slip under a shifting load, potentially leading to catastrophic pipe failure.

Anvil FIG 69 Swivel Hanger: Top Threaded Rod Pick

When pipe runs encounter slopes or require precise leveling, the FIG 69 Swivel Hanger is the gold standard. The swivel action allows the rod to maintain a perfectly vertical position even if the mounting point above is slightly off-center or angled.

This hanger is specifically designed for fire sprinkler lines and heavy mechanical piping where code dictates strict pitch requirements. The adjustability saves hours of rework when trying to align long runs of pipe through tight ceiling cavities.

Because the swivel mechanism has moving parts, it is generally not recommended for areas subject to extreme, high-frequency vibration. In those cases, a fixed-point clevis hanger is usually the safer, more durable bet.

Oatey Galvanized Strap: Simple Secure and Cheap

Sometimes the best tool for the job is the simplest one. Galvanized pipe strapping is the classic “set it and forget it” solution for residential plumbing and light electrical runs.

It is highly versatile, as it can be cut to length and bent to accommodate irregular geometries. However, it lacks the load-bearing capacity of rigid strut clamps. It should be used exclusively for light-duty, non-pressurized piping or where lines are supported frequently at short intervals.

Never use thin strap for high-pressure gas or heavy water lines. It is susceptible to “oil canning” or stretching over time if the load is not distributed perfectly across multiple points.

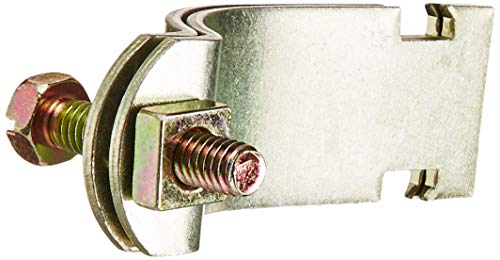

Superstrut Z701 Clamp: For Heavy-Duty Strut Work

The Z701 is built for the professional who needs massive structural support. It is the heavier, more robust cousin to standard conduit clamps, designed to lock into strut systems for securing heavy, high-pressure piping.

The two-piece design allows for installation after the pipe is positioned, which is a lifesaver in cramped crawlspaces. It provides superior load distribution compared to single-piece clamps, making it ideal for high-vibration or heavy-duty industrial settings.

Be sure to verify that the Z701 is compatible with the gauge of the strut being used. Using a heavy-duty clamp on light-gauge, 12-gauge strut is a waste of material and can lead to channel deformation under high torque.

HoldRite Stout Bracket: Best All-in-One Solution

The Stout Bracket simplifies the mounting process by providing a pre-drilled, rigid platform for stub-outs and pipe anchors. It is effectively a bridge between the structural framing and the pipe itself.

Using this system drastically reduces the time spent measuring and drilling individual mounting points. It creates a clean, professional finish inside wall cavities, ensuring that stub-outs remain perfectly centered and square to the finished wall surface.

It is a specialized tool that excels in residential and light commercial framing. While it isn’t meant for heavy, long-run mechanical piping, it is the best way to secure service lines where precision is non-negotiable.

Reading Load Ratings and Proper Hanger Spacing

Every clamp has a rated load capacity, but that number means nothing if the pipe is sagging. Proper hanger spacing is governed by the weight of the pipe, the fluid it carries, and the material.

• Steel pipe: Requires frequent support, usually every 8 to 12 feet, to prevent bowing.
• Copper: Needs tighter spacing, particularly for hot water lines that expand and contract significantly.
• PVC/CPVC: Heaviest of the common materials when filled with water, requiring specialized support to prevent long-term creeping or sagging.

Never push a clamp to its absolute load limit. Aim for a safety factor of at least 2:1, especially in residential settings where secondary stresses from home shifting or thermal cycles are common.

Clamp Materials: Galvanized vs. Stainless vs. PVC

The environment dictates the material. Galvanized steel is the standard for dry, interior locations, but it will corrode rapidly in coastal or high-moisture zones.

Stainless steel is non-negotiable for exterior work or high-humidity areas like chemical plants or pools. It prevents rust streaks from bleeding down the pipe and onto finished surfaces.

PVC-coated clamps are the specific choice for preventing electrolysis when clamping copper pipe to steel strut. Without that barrier, the dissimilar metals will create a battery effect, leading to localized corrosion and eventual pipe failure.

Strut vs. Rods: Choosing Your Mounting Method

Strut systems are the backbone of modern mechanical contracting. They offer a modular, adjustable platform that allows for rapid reconfiguration as the mechanical system evolves.

Threaded rods, by contrast, are the preferred method for simple, gravity-fed drainage lines or where vertical clearance is limited. Rods are excellent for “floating” lines, whereas strut is designed for securing lines to a plane.

Base the decision on the building’s structural anatomy. If the ceiling is concrete, use drop-in anchors for rods. If it is an open-web joist system, span the joists with strut to distribute the weight across multiple structural members.

Selecting the right pipe clamp is a critical step in ensuring the longevity of any mechanical or plumbing installation. By prioritizing the structural requirements of the pipe, the vibration profile of the building, and the specific environmental conditions, you can ensure that your work stays exactly where you left it. Focus on quality hardware and proper spacing to avoid the long-term headaches that come with poorly supported systems.
