6 Best Duct Hangers For Residential Remodels Pros Prefer

Properly supported ductwork is the difference between a high-efficiency HVAC system and one that loses half its performance to leaks, sagging, and noise. In a residential remodel, the tight confines of attic spaces and crawl spaces demand hardware that installs quickly without sacrificing structural integrity. Choosing the wrong hangers leads to pinched ducts, airflow restriction, and eventually, expensive service calls to fix collapsed runs. Professionals prioritize durability and adjustability because tearing out a finished ceiling to adjust a sagging duct is never an option.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

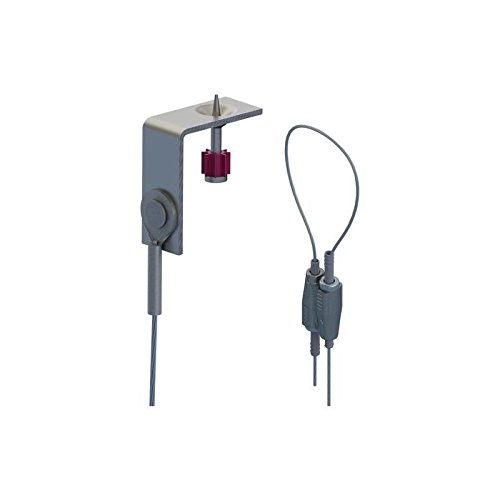

Caddy Speed Link SLK: For Fast Level Duct Runs

The Caddy Speed Link SLK system is a game-changer for long, horizontal duct runs that require precise leveling. Instead of struggling with threaded rod and unistrut, this wire rope system allows for rapid height adjustments with a simple push-button release.

It is particularly effective when navigating cramped joist bays where standard rigid supports are too bulky to manage. The wire rope is incredibly strong, yet flexible enough to weave around existing plumbing or electrical obstructions that would otherwise force a change in duct routing.

Because the system is self-locking, the time spent on a ladder is reduced significantly. The bottom line: If the job involves long, linear runs of sheet metal duct, the Speed Link saves hours of labor while maintaining perfect alignment.

HOLDRITE Hanger Strap: The Go-To All-Purpose Choice

When budget and versatility take priority, the HOLDRITE hanger strap is the standard-issue tool for most residential contractors. These galvanized steel straps are easily cut to length, punched with pre-drilled holes, and bent to fit around virtually any duct shape.

They are the reliable fallback for irregular remodels where the ductwork doesn’t follow a straight line. Because they can be easily secured to joists with common wood screws or nails, they require no specialized mounting hardware beyond a pair of tin snips and a driver.

While they lack the fine-tuning capabilities of suspension systems, their simplicity is their greatest strength. The bottom line: Keep a roll on the truck for those unpredictable segments where nothing else seems to fit correctly.

Quiet Hanger Strap: Best for Eliminating Vibration

Noise transmission is often the biggest complaint after a residential HVAC remodel. The Quiet Hanger Strap addresses this by incorporating vibration-dampening material between the ductwork and the support structure.

Standard metal-on-metal contact creates a bridge for mechanical noise to travel through the floor joists and into the living space. By introducing a barrier, these hangers effectively decouple the duct from the house frame, significantly reducing the “hum” often heard in bedrooms or living areas directly below duct runs.

These are essential when dealing with high-velocity systems or units that cycle frequently. The bottom line: If the ductwork runs under bedrooms or quiet zones, the extra cost of vibration-isolating hangers is a small price for client satisfaction.

Speedi-Products Pipe Saddle: For Rigid Round Duct

Rigid round pipe requires a different approach than rectangular ducting to prevent crimping and airflow loss. The Speedi-Products Pipe Saddle provides a cradle that supports the duct across its full diameter, rather than pinning it to a single point.

Using a saddle prevents the sagging that occurs over time when round ducts are hung with narrow straps. A sagging pipe creates a “belly” in the duct, which collects dust and creates significant resistance to airflow, forcing the blower motor to work harder.

These supports snap into place quickly and provide a clean, professional aesthetic for exposed basement ductwork. The bottom line: Always use a cradle-style saddle for round metal pipe to maintain the integrity of the airflow path.

Duro Dyne FDS: Prevents Kinks in Flexible Ducting

Flexible ducting is highly susceptible to kinking if it is bent too sharply or pulled too tight over a thin support. The Duro Dyne FDS (Flexible Duct Support) is designed to distribute the weight of the duct across a wider surface area.

Thin wires or narrow straps act like a cheese wire on flexible duct, compressing the insulation and causing internal restrictions. By using a wide support band, the internal core remains perfectly round, ensuring the rated CFM (cubic feet per minute) of the duct is maintained.

This is critical in high-performance remodels where every bit of static pressure matters. The bottom line: Never hang flexible duct with narrow metal strapping; a wide, non-metallic support is necessary to preserve the duct’s shape.

Griplock Suspension System: Premium & Adjustable

For premium residential remodels where aesthetics and precision are paramount, the Griplock system offers the highest level of control. It utilizes a cable-gripper mechanism that allows for micro-adjustments with a simple finger-touch clutch.

This system is ideal for high-end installs where ducts are partially exposed or where the home layout requires complex elevation changes to clear structural beams. The cable is virtually invisible, making it the preferred choice for industrial-chic basement designs where ductwork is left in view.

The strength of these systems far exceeds code requirements for residential HVAC weight loads. The bottom line: Invest in Griplock for high-visibility areas or high-end projects that demand a clean, sleek, and highly adjustable finished look.

Duct Hanger Spacing: Code vs. Best Practice

Local building codes typically specify a maximum distance between hangers—usually 8 to 10 feet—but these are bare minimums intended to prevent catastrophic failure. In real-world practice, sag is the enemy of efficiency, and relying strictly on the minimum spacing often results in visible drooping between support points.

• Rectangular Duct: Place supports every 6 feet to ensure the seams remain tight.
• Flexible Duct: Support every 4 feet; the material is prone to stretching over time.
• Round Pipe: Support every 8 feet, ensuring every joint has a hanger nearby to prevent rotation.

Always add an extra hanger at every fitting, elbow, or change in direction. These are the points of highest stress where leaks are most likely to develop.

Straps vs. Saddles: Choosing the Right Support

Choosing between a strap and a saddle depends on the shape and weight of the duct. Straps are highly adaptable, making them perfect for irregular duct shapes and tight clearances where a bulky saddle won’t fit.

Saddles, however, provide superior mechanical support for round pipe. They prevent the deformation of the pipe’s circular profile, which is critical for maintaining consistent airflow velocity.

If the duct is rectangular, use strapping that is at least 1 inch wide to prevent sharp edges from cutting into the metal. If the duct is flexible, only use wide-band supports to protect the inner liner from compression.

How to Properly Support Flexible Duct Runs

Flexible ductwork is often installed poorly, with long, sagging runs that create massive friction loss. To support it properly, pull the duct taut to remove excess slack before securing it to the joists.

Avoid sharp bends; if the run needs to turn, use a rigid elbow fitting or ensure the radius of the turn is at least twice the diameter of the duct. Use a wide, non-abrasive hanger to cradle the flex, and ensure there is no sagging between the support points.

Remember that flexible duct is meant to be an extension, not a structural component. If it looks like it is straining or stretching under its own weight, it requires more frequent support points.

Tips for Preventing Ductwork Noise and Vibration

Duct vibration usually stems from two sources: loose connections and high-velocity air turbulence. Ensure all seams are sealed with mastic or UL-rated tape, as loose joints will rattle under the pressure of the blower fan.

Decouple the ductwork from the building frame using rubber-lined hangers or felt padding at contact points. Additionally, ensure the duct system is properly balanced; excessive noise often indicates that a damper is closed too far, creating high-pressure turbulence inside the pipe.

If a specific run is noisy, check for “oil canning,” where the metal vibrates like a drumhead. Installing a small stiffener or an extra hanger in the center of the vibrating flat section will often eliminate the sound instantly.

Choosing the right hanger is about more than just holding weight; it is about protecting the long-term efficiency of the HVAC system. By selecting the appropriate support for the duct type and installation environment, the potential for airflow restrictions, energy loss, and annoying vibration is significantly reduced. Whether opting for the speed of a cable system or the reliability of a standard strap, prioritize proper spacing and careful alignment to ensure the finished install remains quiet and functional for years to come.
