6 Best Junction Boxes For Secure Wiring Terminations

Junction boxes serve as the critical protection for wire splices, keeping electrical connections safe from physical damage and environmental hazards. Choosing the wrong box for the wrong application leads to fire hazards, corroded connections, and expensive code violations during inspections. Whether wiring a dry interior wall or a wet, exposed exterior gable, selecting the right enclosure is as vital as picking the correct fastener for a metal roof system. This guide breaks down the industry-standard options for various construction scenarios.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Carlon B114R Old Work Box: Top Pick for Retrofits

Retrofitting wiring into finished walls requires a box that secures firmly without requiring full access to the stud cavity. The Carlon B114R uses a simple swing-tab mechanism that clamps tightly against the backside of drywall, making it the go-to for adding outlets after the finish work is done.

It is manufactured from non-conductive PVC, which removes the need for grounding the box itself. This simplifies the wiring process when working in tight spaces where pulling a separate ground wire to the box body is a nuisance.

Avoid over-tightening the mounting screws, as the plastic tabs can strip or crack if pushed beyond their limit. This box is best suited for light-duty residential applications like standard receptacles or low-voltage data ports.

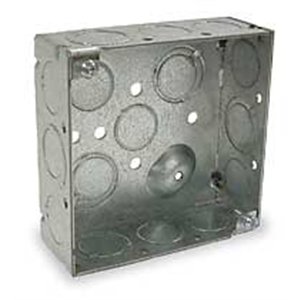

RACO 185 4-Inch Square Box: Most Versatile Option

When a project demands flexibility, the 4-inch square metal box is the backbone of commercial and heavy-duty residential wiring. With numerous knockouts on all sides, it allows for multiple conduit entries or cable runs to converge in one hub.

Because it is made of drawn steel, it provides a rigid, fire-resistant housing that holds up under pressure. It is essential for exposed work where conduit runs are visible, such as in garages or unfinished basements where impact resistance matters.

The trade-off is the need for proper grounding. Since the box is conductive, a pigtail ground must be bonded to the metal casing to ensure code compliance.

Hubbell-Bell 5320-0: Best for Weatherproof Metal

Exterior electrical runs facing harsh weather require an enclosure that prevents water ingress while maintaining structural integrity. The Hubbell-Bell 5320-0 is a cast-metal, weatherproof box designed specifically for damp or wet locations.

Its powder-coated finish resists oxidation, which is vital when installing near a drip edge or in high-moisture climates. It features reinforced lugs for mounting, ensuring the box stays fixed even when wind loads or vibrations occur.

Always utilize the appropriate thread-sealing gaskets and plugs to maintain the NEMA rating. If the seal is compromised by improper installation, the box becomes a collection point for condensation, leading to early component failure.

Cantex 5133709U PVC Box: Best Non-Metallic Box

Non-metallic boxes are the preferred choice for areas prone to corrosion, such as basements with high humidity or crawl spaces. The Cantex 5133709U offers a lightweight, rust-proof alternative that won’t degrade over time like exposed steel.

The material is naturally flame-retardant and provides excellent dielectric strength. It is remarkably easy to drill for custom cable entries, allowing for precise customization on the job site without needing specialized metal-cutting tools.

However, keep in mind that non-metallic boxes have lower weight ratings for fixtures. Do not use these for heavy ceiling fans or large, ornate light fixtures without confirming they are specifically rated for that load.

Southwire MSB44: A Contractor’s Go-To Metal Box

For new-work construction where the studs are exposed, the Southwire MSB44 provides a rapid installation solution. It features integrated mounting brackets that allow for direct nailing or screwing into wooden framing members.

The metal construction allows for efficient grounding and superior mechanical protection for internal splices. It is a standard choice in framing rough-ins because it keeps the box perfectly aligned with the wall surface, preventing “sunken” outlets.

Ensure the box is flush with the stud face to accommodate the thickness of the drywall. Failure to account for the finish material thickness during rough-in often results in a crooked installation that requires unsightly extenders.

Arlington DBVMA1: Best for Exterior Wall Mounts

Mounting electrical components over uneven surfaces like lap siding or textured stucco can be a nightmare for maintaining a weatherproof seal. The Arlington DBVMA1 solves this by using a mounting flange that fits over various exterior finishes to prevent moisture intrusion.

It serves as a comprehensive kit, providing a box and a decorative cover plate in one package. This minimizes the risk of gaps forming between the box and the siding, which is the primary entry point for water in exterior electrical installations.

It is built with high-impact UV-rated plastic. This is crucial for long-term exposure to direct sunlight, which would otherwise cause cheaper, standard plastics to turn brittle and crack over several seasons.

Metal vs. Plastic Boxes: Which One Does Your Job Need

Metal boxes offer superior durability and fire resistance, making them the standard for commercial projects and areas exposed to physical impact. They provide a continuous ground path, which is a major advantage in rugged environments.

Plastic boxes, conversely, excel in residential settings where corrosion is a concern or where ease of installation is the priority. They are cheaper, easier to handle, and provide built-in insulation against accidental contact with live wires.

The decision often comes down to the environment. If the box is behind drywall in a dry climate, plastic is usually sufficient. If the installation is in a high-traffic area, an unfinished basement, or outdoors, metal is the safer, more durable bet.

Understanding NEMA Ratings for Weatherproof Boxes

NEMA ratings are not just suggestions; they are performance standards that define how well an enclosure handles the environment. NEMA 1 boxes are for indoor use only, while NEMA 3R or higher is mandatory for any exterior installation subject to rain, snow, or ice.

Look for the NEMA rating stamped on the box or packaging before purchasing. A box that is merely “water-resistant” is not the same as one that is “weatherproof,” and misapplying a lower-rated box outdoors will eventually lead to a short circuit.

Always ensure the cover plate matches the box’s NEMA rating. An expensive, high-rated box provides zero protection if the cover plate is flimsy or missing the rubber gasket.

How to Calculate Junction Box Fill the Right Way

Code requires specific volume calculations for junction boxes based on the number and gauge of the conductors entering the box. Overcrowding a box with too many wires or oversized wire nuts leads to heat buildup and physical stress on the conductors.

The calculation involves assigning a specific cubic-inch value to each wire, ground, and internal clamp or device. If the sum of these values exceeds the box’s volume capacity, the installation is code-noncompliant and unsafe.

Always check the cubic-inch volume stamped inside the back of the box. If the wire count looks tight, bump up to a larger box size; it is far easier to install a deeper box during the rough-in than to rework an overfilled one later.

Pro Tips for Mounting and Securing Junction Boxes

Secure mounting is the difference between a professional finish and a rattling, loose outlet. Always use the specified mounting holes rather than drilling through the side of a metal box, which can leave sharp edges that fray wire insulation.

Ensure all wires are clamped properly at the entry point of the box. This prevents the wire from pulling out of the terminals if the cable is tugged, which is a common cause of arcing and intermittent power loss.

Finally, keep the “box fill” orderly by folding wires neatly into the corners of the enclosure. Cramming them in the center often leads to pinched wires when the device is finally screwed into the wall, which can cause an immediate and dangerous short circuit.

Selecting the right junction box requires balancing environmental needs, structural requirements, and local electrical codes. By choosing the material that matches the site conditions and strictly adhering to volume and grounding requirements, you ensure a safe and long-lasting installation. Never cut corners on these enclosures; they are the foundation of a reliable electrical system.
