6 Best magnetic locks for high traffic entryways
Discover the 6 best magnetic locks for high-traffic entryways to ensure building security and durability. Explore our top expert recommendations and upgrade today.
High-traffic entryways demand hardware that can withstand thousands of cycles without mechanical fatigue or alignment drift. A maglock failure in a commercial setting doesn’t just cause an inconvenience; it creates a significant security vulnerability and potential life-safety liability. Selecting the right magnetic lock requires balancing holding force, environmental protection, and integration capabilities. These six options represent the industry standard for durability in demanding, high-use environments.
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Securitron M62 Magnalock: Top Overall Pick
The M62 is the gold standard for heavy-duty traffic, much like choosing a premium synthetic underlayment for a high-end metal roof project. It features an integrated architectural housing that resists tampering and provides a clean, professional aesthetic for office buildings or high-end residential entries.
Where this unit shines is in its internal construction. It utilizes an automatic dual-voltage sensing system, which eliminates the risk of field-wiring errors that often lead to coil burnout. When mounting this on a steel door frame, the pre-drilled holes align perfectly with standard templates, saving valuable time during the install.
The M62 includes a built-in bond sensor and door status switch, providing essential feedback to an access control system. It is the most reliable choice when the project requires a “set it and forget it” solution that will handle years of slamming and high-frequency engagement.
RCI 8310-IQ IntelliMag: Best Smart Maglock
Intelligence in locking hardware is no longer optional for modern facility management. The RCI 8310-IQ offers advanced diagnostics that alert property managers to magnetic bond issues before they become security failures.
Think of the “IQ” feature like a smart ventilation system on a roof; it monitors the health of the hardware in real-time. If the magnetic contact is weak due to debris or a misaligned door closer, the system flags the error. This proactive approach saves the headache of emergency service calls during off-hours.
The unit also features a field-selectable delay and adjustable relay output. It is the ideal fit for integrated security systems where immediate notification of door status is a requirement for compliance or liability insurance.
Seco-Larm E-941SA-1K2Q: Best Value Maglock
Budget-conscious projects often require cost-effective hardware without sacrificing the integrity of the opening. The Seco-Larm E-941SA-1K2Q provides a reliable 1200 lbs of holding force at a price point that makes it accessible for smaller commercial retrofits.
Installation is straightforward, as it features a removable mounting plate that simplifies the initial hardware setup. It serves as an excellent workhorse for interior doors where extreme weather resistance is not a factor but constant, daily usage is expected.
While it lacks the sophisticated diagnostics of more expensive units, its build quality remains high. It is a practical selection for projects where the client requires code compliance on a strict budget, much like opting for a high-quality asphalt shingle over a metal roof when the structural framing or budget demands it.

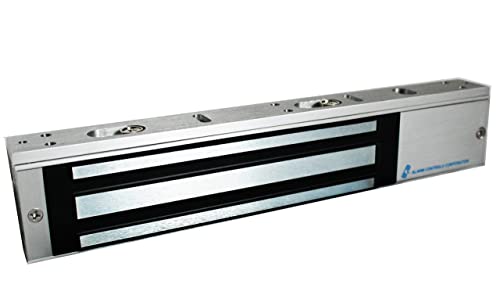

Alarm Controls 600S: A Solid Contractor’s Choice
Contractors gravitate toward the Alarm Controls 600S because it is unfussy and incredibly durable. It is built to survive the rigors of an installation environment where hardware might be handled roughly before it is finally secured to the frame.
The 600S is specifically designed for ease of installation, offering a wide array of mounting brackets that adapt to almost any door header geometry. It is the “utility player” of magnetic locks, fitting into standard door frames with minimal modification.
This lock is best utilized in interior hallways or secondary entry points where a reliable, basic maglock is needed. Its reputation for longevity in the trade is well-earned, as these units frequently outlive the doors they are mounted on.
Dortronics 1100 Series: Best for Outdoor Gates
Outdoor applications are the ultimate test for any hardware, specifically regarding oxidation and galvanic corrosion. The Dortronics 1100 series is encased in stainless steel, providing the weather resistance necessary for gate applications.
When installing these on exterior gates, consider the moisture exposure levels; the stainless housing prevents the “weeping” of rust that occurs with standard powder-coated steel locks. It is the hardware equivalent of using stainless steel fasteners on a coastal project—non-negotiable if the goal is to prevent long-term degradation.
Beyond the weather resistance, the 1100 series is built for sheer structural strength. It handles the vibrations and shifting of gate structures better than most indoor-rated units, making it the top pick for high-traffic perimeter security.
Schlage M490DE: Top Delayed Egress Option
Delayed egress is a critical feature for institutions like hospitals or pharmacies where unauthorized exit management is a priority. The Schlage M490DE integrates this functionality directly into the lock, providing a managed delay before the door unlocks.
This unit integrates seamlessly with fire alarm systems, ensuring that life safety always overrides security. When the alarm triggers, the lock releases immediately, regardless of the egress delay state.
Choosing this model requires a deep understanding of local fire codes. It is the professional choice for environments where protecting people is as important as protecting property, providing a reliable, code-compliant mechanism for controlled exiting.
Choosing Holding Force: 600 lbs vs. 1200 lbs
The choice between 600 lbs and 1200 lbs of holding force is dictated by the door type and the potential for forced entry. 600 lbs is sufficient for standard, lightweight interior doors where the primary goal is simply keeping unauthorized personnel out of a room.
For exterior doors, main entryways, or high-security areas, 1200 lbs is the standard requirement. A stronger magnet is not just about raw pull force; it’s about overcoming door movement and environmental pressure, such as wind loads that can cause the armature plate to oscillate.
Never undersize the holding force to save a few dollars. If a door experiences high traffic, the mechanical strain of constant closing will eventually cause a lightweight magnet to lose its optimal seal, creating an easy point of entry for someone pulling on the handle.
Fail-Safe vs. Fail-Secure: Code & Safety
Magnetic locks are inherently fail-safe devices. This means that if the power is cut, the magnet deactivates and the door opens. This is a non-negotiable requirement for life safety codes in almost every jurisdiction.
Never attempt to modify a maglock to function as a fail-secure device (where it locks when power is lost). Creating such an arrangement is a massive fire code violation and poses a lethal risk in an emergency, as occupants would be trapped during a power outage or fire.
Always check local building codes regarding the integration of a secondary power source or battery backup. In some jurisdictions, the lock must stay powered for a specific duration after a main power loss, necessitating a dedicated battery backup system for the entire access control circuit.
Power Supplies and Brackets You Can’t Forget
The maglock is only as reliable as the power supply providing its current. Inconsistent voltage leads to weak holding force and internal component failure, so always use a filtered and regulated power supply.
Installation brackets are equally vital. If the door frame does not provide a perfectly flush mounting surface, an L-bracket, Z-bracket, or filler plate is required to achieve the correct alignment.
Without proper alignment, the magnetic bond is compromised, leading to that annoying buzzing sound and decreased holding efficiency. Much like ensuring the proper reveal on a window installation, spending the time to shim and align the maglock mounting bracket is what separates a professional install from a failure.
Integrating Maglocks With Access Control Systems
Integration is where the magic happens, but it is also where most installation errors occur. A proper maglock installation must communicate with the Request-to-Exit (REX) sensor, the fire alarm panel, and the card reader simultaneously.
The REX sensor is the most critical component, as it ensures the lock de-energizes the moment a person approaches the door from the inside. If the REX is poorly positioned or improperly calibrated, users will struggle to open the door, leading to frustration and physical abuse of the hardware.
Always use a dedicated circuit for the access control hardware to avoid electrical interference from other building systems. Proper planning for cable runs and relay connections ensures that the security system functions exactly as intended without ghosting or false triggers.
Selecting the right magnetic lock is about understanding the specific demands of your entryway, from environmental exposure to security requirements. By focusing on quality hardware and proper installation techniques, you ensure that your entry points remain secure, code-compliant, and functional for years to come.
