High-wind events transform a roof from a static shelter into a massive wing designed to lift a structure right off its foundation. Gravity is no longer the primary force acting on the framing; instead, suction and lateral pressure become the enemy. Choosing the right timber connectors is the difference between a house that sheds a few shingles and one that loses its entire roof assembly. Trusting high-quality hardware is the only way to ensure the load path remains unbroken when a hurricane or severe storm hits.
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Simpson H10A Hurricane Tie: The Rafter-to-Plate MVP
The Simpson H10A is the industry benchmark for securing rafters to wall plates in high-wind regions. It provides a robust connection that resists both uplift and lateral forces, essentially locking the roof framing to the top of the wall.
When working on steep-slope roofs where wind gusts create significant leverage, the H10A offers a symmetrical design that simplifies installation. It eliminates the need for toe-nailing, which is notoriously unreliable in high-wind conditions because nails can easily pull out of the grain under stress.
For the best results, use the manufacturer-specified nails in every pre-punched hole. Skipping nails to save time is a dangerous gamble that compromises the uplift rating of the entire connection.
USP RT7 Roof Truss Tie: Best for Truss-to-Wall Grip
The USP RT7 stands out when dealing with engineered roof trusses rather than site-built rafters. Its design accounts for the specific geometry of truss heels, ensuring the load is transferred directly into the wall structure without damaging the truss web.
This connector shines in multi-story residential builds where truss stability is paramount. The wrap-around design provides more surface area contact than standard clips, offering superior resistance against the sliding forces typical of high-wind shear events.
Always ensure the truss sits flush on the plate before tightening these ties. A gap between the truss and the wall plate creates a pivot point that can cause the connector to deform under heavy cyclic loading.
Simpson HDU Holdown: Essential for Shear Wall Uplift
Shear wall failure is a primary cause of structural collapse during extreme wind events. The Simpson HDU holdown is engineered to anchor the main structural posts directly to the foundation or floor system below.
Unlike simple straps, the HDU is a heavy-duty bolt-through connector that prevents the house from literally lifting off its anchor bolts. It is a critical component for the corners of a home, where wind uplift forces are at their peak.
Installation requires precise alignment and the use of high-strength anchor bolts. If the holdown isn’t perfectly plumb, the eccentric loading can cause the bolt to bend or the wood to split when the wind pressure hits.
MiTek MSTA Strap Tie: For a Continuous Load Path
Continuous load path engineering requires that every structural element is tied to the one below it, all the way to the foundation. The MiTek MSTA strap tie is the perfect tool for bridging connections between studs, plates, and rafters.
These straps are highly versatile and can be bent or wrapped to suit complex framing transitions. In areas where framing members don’t align perfectly, the MSTA provides the flexibility needed to maintain structural continuity without custom fabrication.
Always verify the required gauge of steel for the specific wind zone. Using a lighter-gauge strap than the engineered plan calls for will create a weak link that compromises the integrity of the entire structure.

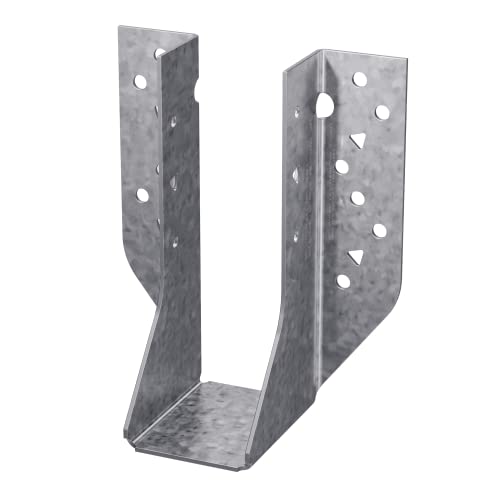

Simpson HU/HUC Joist Hanger: A Heavy-Duty Workhorse
High winds can cause roof rafters to twist and rotate, leading to catastrophic failure of the connections. The Simpson HU/HUC series acts as a cradle, providing the lateral support necessary to keep heavy timbers locked in place.
These hangers are indispensable when dealing with larger dimensional lumber or heavy timber framing. By supporting the bottom and sides of the joist, they ensure that the gravity load is distributed evenly across the supporting beam.
When installing, verify that the hanger seat matches the depth of the joist exactly. A joist that hangs too high in the hanger loses the lateral support the device was designed to provide.
Simpson LSTA Strap Tie: Versatile Uplift Resistance
Ensure structural connections resist wind and seismic forces with the Simpson Strong-Tie LSTA24 strap tie. This precut, load-rated galvanized strap enables fast installation in floor-to-floor applications.
The LSTA strap tie is the go-to for securing top plates to studs or rafters to wall members where side-access is limited. It provides high-tension uplift resistance in a low-profile package, making it ideal for tight spaces.
This strap is often used in retrofitting older homes to meet modern building codes. Because it can be nailed into the face of the framing, it is an efficient way to reinforce existing connections without tearing apart finished walls.
Do not overlap or double-up straps unless the engineering design specifies it. Improper overlapping can cause the fastener pattern to fail, reducing the effective load capacity of the installation.
Understanding the Continuous Load Path Is Non-Negotiable
A building is only as strong as its weakest connection. A continuous load path ensures that forces—gravity, wind, and seismic—are transferred from the roof through the walls and down into the foundation.
If the roof is tied to the wall, but the wall isn’t tied to the foundation, the entire wall section can shift or lift. Every joint from the ridge beam to the anchor bolt must be calculated to handle the total uplift force expected in the region.
Avoid the temptation to focus only on the roof-to-wall connection. Consult with an engineer or local code official to ensure the bottom-of-wall connections are equally robust.
Why Your Fastener Choice Is as Critical as the Connector
A connector is only as effective as the fasteners holding it in place. Using standard framing nails in hurricane-rated hardware is a mistake; always use the specific length and diameter of connector nails (often called “joist hanger nails”) identified on the spec sheet.
Standard nails often have smaller heads, meaning they can pull through the connector holes under high-tension loads. Connector nails are engineered with thicker shanks and larger heads to prevent pull-through and shear failure.
Never swap out specified nails for generic alternatives found in the shop bin. The connector’s rated performance is strictly tied to the hardware used during the certification testing process.
Galvanized vs. Stainless: Pick Your Corrosion Defense
Corrosion is a silent killer that eats away at structural integrity over decades. In coastal areas with salt spray or regions with high humidity, galvanized steel may eventually succumb to rust, leading to a loss of material thickness and strength.
- G90 Galvanized: The standard for most interior and protected exterior applications.
- Hot-Dip Galvanized: Required in high-moisture or coastal environments to prevent premature degradation.
- Stainless Steel: The gold standard for extreme environments, though significantly more expensive.
If you are building within five miles of the ocean, skip standard galvanized steel entirely. Invest in 304 or 316 stainless steel to ensure the hardware doesn’t turn to powder before the structure reaches its expected lifespan.
Proper Installation: Don’t Guess on Nailing Patterns
Installation is where the structural integrity of the hardware is either confirmed or destroyed. Manufacturer nailing patterns exist for a reason: they are calculated to prevent the wood from splitting while maximizing the connector’s grip.
Over-nailing into the same spot, or installing nails too close to the edge of the timber, causes the wood fibers to split. Once the wood is split, the fastener loses its bite, and the connector becomes essentially ornamental.
Always fill the designated holes, but never add extra holes. Adding un-engineered fastener points can create stress risers that lead to premature wood failure during high-wind events.
Investing in high-quality timber connectors and installing them with precision is the ultimate insurance policy for a roof. While these components remain hidden behind drywall and siding, they are the quiet defenders holding the structure together against the fury of nature. Adhere to the code, use the right fasteners, and prioritize long-term corrosion resistance to ensure peace of mind for the life of the building.
