6 Best pressure switches for system automation Professionals Use

Pressure switches are the unsung heroes of system automation, acting as the bridge between fluid dynamics and electrical control. Whether managing water delivery for a job site or regulating pressure in a pneumatic roofing tool setup, selecting the correct device prevents system failure and costly downtime. Reliability under stress remains the primary metric for any contractor relying on these components. Understanding the specific application—be it high-pressure air or a residential water line—is the only way to avoid premature burnout.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Square D Pumptrol 9013FSG2: Best for Well Pumps

The Square D Pumptrol 9013FSG2 is the industry standard for residential water well systems. Its reputation for longevity comes from a straightforward design that handles thousands of cycles without drifting out of calibration.

When a job requires a simple, set-it-and-forget-it solution for a submersible pump, this switch dominates. It features a visible contact bridge that allows for quick visual inspection, which is vital when troubleshooting water delivery issues at a remote build site.

The heavy-duty construction ensures it holds up in damp basement environments where moisture often corrodes lesser components. Always ensure the diaphragm material matches the fluid type, as well-water chemistry can occasionally degrade standard internal gaskets over long periods.

Honeywell L404F: Top Choice for HVAC Control

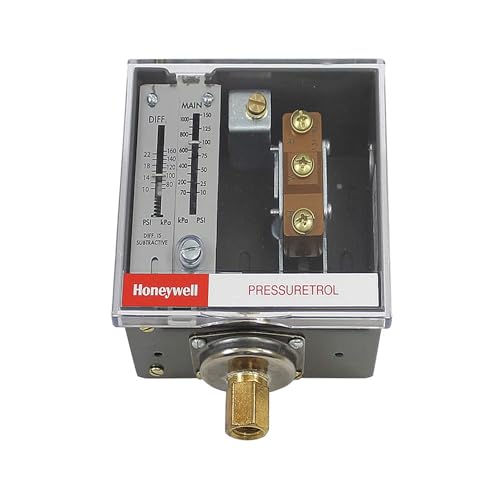

In the world of commercial HVAC, the Honeywell L404F is the go-to for pressure-sensitive limit control. It handles refrigerant high-pressure cutouts with precision, ensuring that compressors do not operate under dangerous stress levels.

This switch excels in systems where space is at a premium and reliability is non-negotiable. Its robust bellows assembly responds instantly to pressure spikes, effectively acting as a safety valve for expensive cooling equipment.

Contractors favor this unit for its ease of adjustment during seasonal system tuning. If a roof-top unit is struggling with high head pressure during a summer heatwave, the L404F provides the dependable cutoff necessary to save the compressor from a total blowout.

WIKA A-10: Best Electronic Pressure Transmitter

The WIKA A-10 moves away from mechanical clicking and into the world of precise, continuous data monitoring. It converts pressure into an electrical signal, allowing a building’s automation system to track fluctuations in real time.

This device is essential for complex fluid management systems where simple ON/OFF logic is insufficient. By outputting a consistent signal, it allows for proactive maintenance, catching small leaks or blockages before they cascade into major system failures.

The stainless steel housing makes it rugged enough for harsh environments, whether in a dusty mechanical room or exposed to the elements on a commercial roof deck. Use this when the goal is data-driven efficiency rather than basic relay operation.

Ashcroft B400 Series: Most Durable for Industry

When the project environment involves high vibration, extreme temperatures, or corrosive media, the Ashcroft B400 Series provides the necessary structural integrity. This is a heavy-duty mechanical switch built to withstand the rigors of industrial manufacturing.

The enclosure is designed to meet NEMA 4X standards, meaning it is effectively sealed against dust and water spray. It is the preferred choice for process control systems where the cost of failure includes significant plant downtime or safety hazards.

Its snap-action switch design ensures a clean contact, minimizing the risk of arcing and contact welding. For high-cycle applications where the switch triggers multiple times per hour, the Ashcroft provides a level of durability that cheaper alternatives simply cannot match.

Danfoss KP35: Reliable for Refrigeration Duty

The Danfoss KP35 is a specialized pressure switch engineered for refrigeration and air-conditioning systems. It provides reliable switching in response to pressure changes, maintaining optimal cycle rates for cooling equipment.

Key features include a compact footprint and a very high contact rating relative to its size. This makes it an ideal fit for modern, high-efficiency cooling units where panel space is constrained and electrical loads are significant.

Proper setup is critical, as refrigeration systems require precise differential adjustments to prevent short-cycling. A well-calibrated KP35 keeps the system running smoothly, reducing the energy bill and extending the lifespan of the condenser unit.

Baumer PBMN: For High-Precision Automation

The Baumer PBMN stands out for applications requiring extreme accuracy and long-term stability. It is often integrated into sophisticated laboratory or industrial automation setups where even minor pressure deviations must be recorded.

This device combines a high-quality sensor with a user-friendly digital display, simplifying the calibration process for the technician on site. Its ability to handle high-frequency pressure pulses makes it highly effective in hydraulic systems that experience rapid load changes.

It is best suited for high-stakes projects where performance metrics are logged for compliance or efficiency reports. When precision is the priority over cost, the Baumer PBMN offers the diagnostic clarity that standard mechanical switches lack.

Mechanical vs. Electronic: Which Switch Is Best?

Mechanical switches function via physical bellows or diaphragms, making them ideal for simple ON/OFF logic in rough, high-vibration environments. They require no external power to trigger, which is a major advantage in remote or failsafe-critical scenarios.

Electronic transmitters provide high-fidelity data, allowing for predictive maintenance and remote monitoring. They are superior in systems requiring complex control algorithms but necessitate a more stable electrical infrastructure to function correctly.

• Choose Mechanical if: The system is isolated, ruggedness is prioritized, or you need a simple, low-cost safety cutoff.
• Choose Electronic if: You need constant status monitoring, integration with a PLC (Programmable Logic Controller), or high-precision control across a wide range.

Understanding Pressure Switch Specs and Ratings

Every pressure switch comes with a set of ratings that define its operational envelope. Understanding these is the difference between a system that lasts for years and one that fails in weeks.

• Set Point: The exact pressure at which the switch activates or deactivates.
• Deadband (Differential): The difference between the set point and the reset point; a narrow deadband is essential for precise control, while a wider one prevents rapid cycling.
• Proof Pressure: The maximum pressure the device can withstand without sustaining permanent damage.

Always check the “Maximum Operating Pressure” against the peak surges of the system. Operating a switch consistently near its max limit will drastically reduce its cycle life.

How to Wire and Calibrate Your Pressure Switch

Correct wiring begins with verifying the voltage and amperage requirements against the load of the pump or motor. Using the wrong gauge of wire or failing to properly ground the enclosure is a common cause of premature relay failure.

Calibration should be performed using a calibrated master gauge as a reference. Never rely on the factory scale for critical applications, as shipping and installation can shift the internal spring settings.

Follow these steps for a solid installation: 1. Mounting: Ensure the switch is mounted in a vertical position unless specified otherwise. 2. Sealing: Use proper thread sealant for the pressure port connection to prevent leaks. 3. Adjustment: Gradually adjust the set point screw while monitoring the system gauge, performing multiple test cycles to confirm the deadband remains consistent.

Troubleshooting Common Pressure Switch Failures

The most frequent culprit for switch failure is “contact welding,” where the internal electrical contacts fuse together due to excessive arcing. This is usually caused by installing a switch that is undersized for the inductive load of the motor it is controlling.

Another common issue is debris buildup in the pressure port. If the switch stops responding, the diaphragm or bellows might be obstructed by mineral deposits, pipe scale, or sediment from the system fluid.

If the switch is rapidly cycling—the classic “chatter”—the pressure differential is likely set too narrow for the system’s current pipe diameter. Always check for air pockets in the lines, as trapped air is highly compressible and causes the switch to cycle erratically.

Mastering the selection and installation of pressure switches is vital for any professional who maintains the integrity of mechanical systems. By matching the switch type to the specific demands of the environment and carefully calibrating during installation, system longevity is virtually guaranteed. Choose the right component for the load, respect the system’s physical limits, and you will spend far less time on emergency repairs.
