6 Best Signal Relays for Automated Control Integration

Signal relays are the silent workhorses behind automated controls, bridging the gap between low-voltage controllers and high-power mechanical systems. Choosing the wrong relay for an automated irrigation system, a motorized roof vent, or a complex industrial climate control setup can lead to premature failure or costly system downtime. These components serve as the critical interface that translates logic into physical movement, much like selecting the right fastener type determines the integrity of a roof deck under wind load. Prioritize reliability and load compatibility over cost to ensure the installation holds up under long-term environmental stress.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Omron G2R-1-S Series: The All-Around Workhorse

The Omron G2R-1-S series remains the industry standard for a reason. Its build quality is consistent, offering a robust mechanical life that handles thousands of cycles without degradation.

When configuring a complex HVAC or lighting control panel, this relay provides a predictable baseline performance. The inclusion of a mechanical indicator and a locking test button allows for rapid troubleshooting during commissioning, saving significant time when the deadline is tight.

Consider this the “asphalt shingle” of the relay world: reliable, widely available, and functional for the vast majority of standard applications. It fits almost any DIN rail setup and won’t throw curveballs during installation.

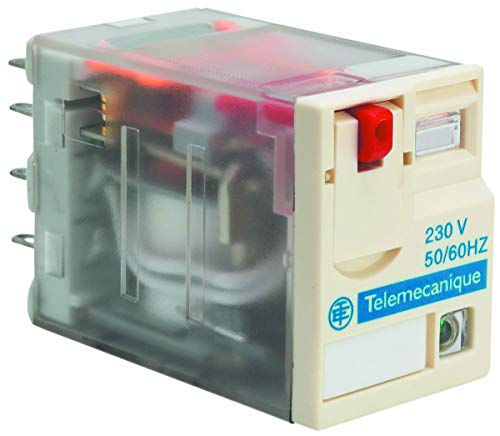

Schneider Electric Zelio RXM: High-Density Panels

When panel real estate is at a premium—such as in a tight control cabinet for a multi-zone commercial building—the Schneider Electric Zelio RXM excels. The design focuses on space efficiency without sacrificing the ease of wiring that seasoned contractors demand.

These relays feature a multi-pole contact arrangement that allows for high-density switching in a smaller footprint. They are particularly effective when managing multiple auxiliary circuits simultaneously, such as when integrating fire suppression triggers with HVAC shutoff systems.

Reliability is high, but the denser wiring requirements demand clean, well-organized cable management. Avoid using these in areas with extreme debris or dust accumulation unless the panel is NEMA-rated to match the environment.

Phoenix Contact PLC-RSC: Slim Smart and Scalable

Phoenix Contact is recognized for the modularity of its PLC-RSC line, which is designed for modern, high-precision automation. The slim design allows for mounting directly onto a DIN rail without consuming the excessive space typical of older, bulky relays.

This product is ideal for systems requiring high-frequency switching. If the application involves frequent cycling—like a precision motorized damper system or rapid-response pump control—these relays hold up exceptionally well compared to heavier, slower alternatives.

The plug-in nature of these relays makes replacement a one-minute job. For systems requiring minimal downtime, the ability to hot-swap a unit without rewiring the base is a massive advantage on the job site.

IDEC RU Series: A Solid General-Purpose Choice

The IDEC RU series offers a unique “non-polarized” LED indicator, which simplifies the wiring process by eliminating the need to worry about polarity during installation. This is a subtle but significant feature that prevents basic errors when working in dim lighting or cramped control rooms.

These relays are built to handle the incidental surges common in older buildings where electrical noise might be an issue. They feel substantial in the hand and exhibit the kind of build quality that withstands the vibration often found in mechanical rooms near large blowers or motors.

Choose these when the project requires a straightforward, “install and forget” component. They are less specialized than the slim-line alternatives but offer a high degree of confidence for general-purpose automation.

Weidmüller RIDERSERIES RCM: Built for Tough Jobs

In environments prone to humidity or temperature fluctuations, such as an unconditioned mechanical penthouse, the Weidmüller RIDERSERIES RCM stands out. These relays are designed with high-quality gold-plated contacts in many variations, ensuring consistent signals even in environments where corrosion is a potential risk.

The housing is exceptionally durable, and the locking mechanism on the base is secure enough to withstand vibrations from nearby heavy machinery. This level of build quality is comparable to selecting stainless steel hardware for a metal roof installation in a coastal, high-salt-air environment.

If the installation environment is less than ideal, this is the safe choice. Investing here reduces the likelihood of oxidation-related signal loss, which is a common phantom failure point in low-voltage automation.

Allen-Bradley 700-HK: Slim Line for Tight Spaces

Allen-Bradley represents a familiar name for contractors accustomed to high-end industrial automation. The 700-HK series is a slim-profile relay that proves efficiency does not have to result in fragile construction.

This series is frequently utilized in control cabinets where space is limited, yet the need for reliable, rapid signal transmission is paramount. They fit perfectly into the cramped junction boxes that often result from “creative” space management in renovation projects.

Be mindful of the current rating on these slim-line units, as they are not meant to handle the same heavy inrush loads as larger, chassis-mounted relays. Use them for signal-level switching and leave the power-hungry motors to larger, dedicated contactors.

Electromechanical vs. Solid State Relays: Which Wins?

Electromechanical relays (EMRs) rely on a physical coil and moving contact points. They are generally more tolerant of voltage spikes and offer a clear “on/off” status that is visible to the eye.

Solid State Relays (SSRs) use semiconductors to perform the switching, meaning there are no moving parts to wear out. They are silent, incredibly fast, and ideal for applications requiring frequent, high-cycle switching, but they generate heat and are sensitive to power surges.

For general automation, EMRs remain the default due to their resilience. If the project requires millions of cycles, or if noise and physical wear are significant concerns, transition to SSRs, provided you have the cooling capacity to manage their thermal output.

Key Specs: Coil Voltage and Contact Load Ratings

Understanding the coil voltage is the first step toward preventing immediate failure. A 24V DC relay connected to a 120V AC circuit will destroy the coil instantly, creating a headache that could have been avoided with a simple multimeter check.

Contact load ratings are equally critical. You must differentiate between resistive loads (like heaters) and inductive loads (like motor windings or transformers). Inductive loads create high back-EMF (electromotive force) during shutdown, which will weld standard relay contacts shut over time.

Always verify that the relay’s max switching current is higher than the load’s draw, including the startup inrush current. It is standard practice to spec a relay rated for at least 20-30% more than the calculated load to ensure longevity.

Installation Tips for DIN Rail and Panel Mounting

DIN rail mounting is the gold standard for clean, professional control panels. Ensure the rail is properly grounded to the cabinet chassis, as this acts as the common reference point for the entire automation system.

When mounting relays, maintain proper spacing if they are operating near their maximum thermal capacity. Heat is the enemy of all electrical components; a crowded panel with poor airflow will shorten the lifespan of even the highest-rated relays.

Always use wire ferrules on stranded conductors when connecting to relay bases. This prevents individual wire strands from fraying or creating short circuits, ensuring a secure mechanical connection that won’t loosen due to thermal expansion or vibration.

Troubleshooting Common Relay Failure Points on a Job

The most frequent point of failure is not the relay itself, but the base or the wiring connection. Loose screw terminals are notorious for causing intermittent signal drops; always give them a final torque check before closing the cabinet.

Check for “pitted” or blackened contacts if a relay is behaving erratically. This is a clear indicator that the relay has been pushed beyond its load rating or is struggling with an inductive load that needs a snubber diode or arc-suppression circuit added.

If the relay clicks but the load doesn’t fire, test the output side of the relay before condemning the device. Frequently, the issue lies in a faulty field sensor or a broken conductor out in the system, rather than a failure of the relay internal coil.

Selecting the right relay involves balancing the physical constraints of the panel with the electrical requirements of the system. By matching the relay’s load profile to the actual hardware and ensuring clean, secure terminations, the risk of failure is significantly reduced. Proper planning at the control panel stage is just as vital as proper flashing around a chimney; both are essential to keeping the elements—and the voltage—exactly where they belong.
