6 Best Phase Monitors For Three-Phase Pump Protection

Three-phase motors driving water pumps are the backbone of site drainage and irrigation, but they are unforgiving when the power supply wavers. A single lost phase or a voltage imbalance can cook a motor winding in minutes, turning a routine job into an expensive service call. Installing a phase monitor is the cheapest insurance policy available for protecting heavy-duty equipment from preventable electrical failure. Choosing the right unit depends on whether the priority is advanced diagnostics, budget constraints, or ease of field integration.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

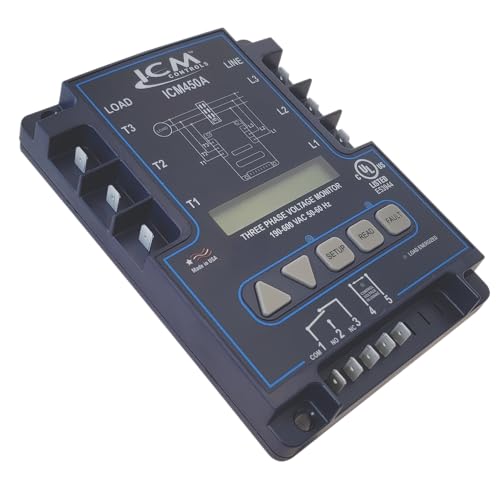

ICM Controls ICM450: Best for All-Around Value

The ICM450 is a workhorse that provides granular control over voltage monitoring without the price tag of high-end industrial automation units. It features a backlit display that allows for real-time monitoring of voltage and fault codes, which saves significant time when troubleshooting on a remote site.

This unit excels at tracking line-to-line voltage and detecting phase reversal or unbalance. It is a smart choice for contractors who need to bridge the gap between basic protection and high-end diagnostic capability.

The menu-driven setup is intuitive, ensuring that maintenance crews can dial in settings like under-voltage or over-voltage thresholds without digging through a massive manual. When the budget is tight but the equipment protection is non-negotiable, this unit remains the industry standard.

Macromatic PMPU: Top Pick for Pump Applications

When protecting submersible pumps, the PMPU series stands out due to its ability to handle specific pump-related power irregularities. It is designed to ignore the brief voltage fluctuations that often occur during motor startup, preventing nuisance trips that plague less sophisticated monitors.

The unit’s construction is rugged, designed to withstand the vibrations and thermal cycling common in electrical cabinets located near heavy machinery. Its secondary function of detecting “dry run” conditions or phase loss makes it an essential component for critical lift station setups.

Choosing a Macromatic unit simplifies the logistics of complex pump control panels by combining protection functions into one footprint. For anyone managing a large fleet of submersible pumps, this monitor reduces the frequency of replacement motors significantly.

Siemens 3UG4615: Most Reliable Industrial Choice

Reliability is the primary metric for industrial-grade installations, and the Siemens 3UG4615 is built to satisfy the most stringent engineering requirements. Its digital architecture provides precise measurement values that remain consistent even in environments with high electromagnetic interference.

The 3UG4615 excels in its ability to detect phase sequence errors, which is a common hazard when utility power is reconnected after a storm or grid work. It is designed for longevity, surviving years of operation in dusty or damp mechanical rooms where cheaper components often fail.

While the configuration software can feel more technical than other options, the performance payoff is a stable system that rarely requires manual reset. It is the go-to for permanent, high-value infrastructure where equipment downtime is simply not an option.

Schneider Electric RM17-TG20: Best Compact Option

Space is a premium commodity in secondary control panels, and the RM17-TG20 is designed to fit where other units simply cannot. Despite its diminutive profile, it provides robust protection against phase loss and phase sequence errors.

Because it does not require a neutral wire for operation, it simplifies the wiring process for technicians working on legacy panel upgrades. This makes it an excellent candidate for retrofitting older installations that lacked proper phase protection.

The simplicity of the RM17-TG20 is its greatest asset; it provides “set and forget” protection for smaller three-phase motors. If the goal is a rapid installation that occupies minimal DIN rail space, this unit is the practical winner.

Eaton D65PM: Easiest to Install and Program

Eaton designed the D65PM with the field technician in mind, focusing on accessible terminals and a straightforward programming interface. The setup process is almost entirely plug-and-play, allowing for rapid commissioning on active jobsites where time is money.

The visual status indicators are large and easily readable, even under poor lighting conditions inside a dark utility closet. It bridges the gap between digital accuracy and analog simplicity, making it the preferred choice for those who prefer physical knobs over complex digital menus.

This monitor is particularly effective for contractors who handle a wide variety of site conditions and need a reliable solution that doesn’t require specialized training to calibrate. It provides excellent baseline protection for most standard pump applications.

Littelfuse 201A-AU: Best for Basic Protection

Sometimes the best protection is the most straightforward, and the Littelfuse 201A-AU is built for durability and simplicity. It handles the core threats to three-phase motors—loss of phase and voltage unbalance—without unnecessary frills.

The unit is ruggedly housed to survive extreme temperatures, making it a reliable performer in outdoor or non-climate-controlled environments. Its track record in the field is long, and its performance consistency is widely respected by those who maintain industrial pumping stations.

For projects where high-level digital diagnostics are secondary to the basic need for hardware protection, this unit is the most efficient choice. It is a cost-effective, no-nonsense solution that keeps critical motors running through power grid instability.

Why Your Three-Phase Pump Needs a Phase Monitor

Three-phase motors rely on the balanced interaction of three AC power lines, and when one line fails, the motor attempts to compensate by drawing excessive current from the remaining two. This “single-phasing” event rapidly creates intense heat, which degrades winding insulation and ultimately causes total motor failure.

A phase monitor interrupts the control circuit the moment it senses a phase loss, sequence error, or significant voltage imbalance. By cutting the power before the motor has a chance to overheat, the monitor transforms a potential multi-thousand-dollar motor replacement into a simple electrical reset.

Key Features to Compare in a Phase Monitor

• Voltage Unbalance Tolerance: Check if the monitor has adjustable thresholds, as some motors are more sensitive to imbalance than others.
• Time Delay Settings: Look for adjustable “restart” or “trip” delays to prevent the device from cutting power during harmless, momentary voltage spikes.
• Fault Memory: High-end models store the last few fault codes, which is invaluable for diagnosing power grid issues versus internal pump failures.
• Form Factor: Confirm the unit fits the existing space in your control panel and utilizes the mounting style required (DIN rail vs. surface mount).

How to Correctly Wire Your Phase Monitor

Wiring a phase monitor requires tapping the three input lines before they reach the motor starter or VFD (Variable Frequency Drive). The output relay of the monitor should be wired in series with the coil circuit of the motor starter.

This configuration ensures that if the monitor detects a fault, it physically opens the circuit, causing the starter to drop out and stop the motor immediately. Always confirm that the monitor’s voltage rating matches the supply voltage, and verify all connections with a multimeter before energizing the system.

Troubleshooting Common Phase Monitor Faults

If a monitor frequently trips, first verify the incoming voltage at the line side of the monitor using a calibrated true-RMS meter. A common misconception is that the monitor is faulty when, in reality, the power utility may be providing an unbalanced or unstable supply.

Check for loose connections at the terminal blocks, as thermal expansion and contraction can cause lugs to loosen over time. If the monitor trips during startup, consider increasing the time delay setting to allow for inrush current, provided the pump manufacturer supports this adjustment.

Protecting a three-phase pump with a quality monitor is a small investment that yields massive dividends in equipment longevity and peace of mind. By matching the right monitor to the specific needs of the installation, you ensure that the system remains resilient against the inevitable fluctuations of the power grid.
