6 Best End Clamps For Festoon System Termination

A failing festoon termination point is often the silent killer of productivity on a job site. When cable tension isn’t properly anchored, the entire electrification system starts to sag, leading to frayed wires and costly downtime for cranes or material handling equipment. Choosing the right end clamp is not just about mounting hardware; it is about ensuring the structural integrity of the power delivery system. This guide breaks down the six most reliable clamps on the market to keep your systems running smoothly and safely.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Conductix-Wampfler 02410: The Industry Standard

The Conductix-Wampfler 02410 is widely considered the gold standard for C-track festoon systems in industrial settings. Its design centers on simplicity and robust materials, providing a secure anchor point that resists the constant vibration inherent in overhead crane operations.

For contractors dealing with heavy-duty factory installations, this clamp offers peace of mind through its high-grade steel construction. It locks cables firmly in place without cutting into the insulation, a critical factor when dealing with expensive multi-conductor festoon cables.

Expect to see this model in almost any high-cycle environment where equipment longevity is the primary concern. It is the baseline against which all other clamps are measured, proving that proven engineering often beats flashy, proprietary alternatives.

Gorbel Festoon End Clamp: Heavy-Duty Champion

When the application involves high-capacity gantry cranes or long-span festoon tracks, the Gorbel end clamp stands out as a heavy-duty powerhouse. These units are built to withstand significantly higher tension loads than standard residential or light-commercial components.

These clamps excel in environments where the cable festoon is exceptionally heavy, such as those carrying large gauge power cables or pneumatic hoses. The reinforced bolt assembly ensures that even under the stress of high-frequency starting and stopping, the anchor point remains perfectly seated.

Opt for the Gorbel system when your load calculations suggest the standard hardware will reach its mechanical failure point. It is an investment in durability that prevents the “sag and drag” common in poorly spec’d heavy-duty systems.

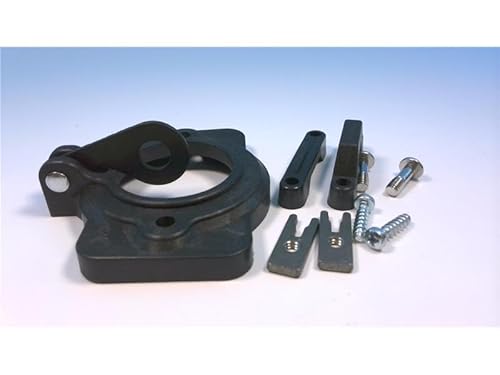

Duct-O-Wire C-3 End Clamp: Simple & Effective

The Duct-O-Wire C-3 is a straightforward, no-nonsense solution for standard C-track festooning. It lacks the bells and whistles of high-end industrial systems, but it delivers exactly what is promised: a rock-solid termination point at a price point that makes sense for smaller scale projects.

Installation is rapid, often saving significant man-hours on jobs where a dozen or more festoon lines need to be anchored. Its lightweight design doesn’t compromise on grip, making it a favorite for contractors who need reliable inventory that fits a variety of standard track widths.

If the job scope involves medium-duty material handling, this is the go-to component for balancing cost and performance. It doesn’t pretend to be an aerospace part, but it performs reliably year after year in warehouse environments.

Kundan C-Track Clamp: The Budget-Friendly Pick

Budget constraints often dictate hardware choices, but the Kundan C-Track clamp proves that low cost does not have to mean low quality. This clamp is an excellent choice for DIYers or facility managers looking to replace worn-out components without breaking the project budget.

While it lacks the heavy-duty certifications of higher-priced competitors, it is more than sufficient for lighter festoon loads. It features an intuitive design that is easy to adjust, allowing for quick cable tensioning even in tight or awkward spaces.

Use the Kundan option when the duty cycle is light to moderate and you have a high volume of terminations to perform. It is a pragmatic choice that provides enough strength for standard electrical cable runs while keeping the bottom line healthy.

Sim-Tran I-Beam Clamp: For Heavy Gantry Cranes

Transitioning from C-track to I-beam systems changes the mechanical requirements entirely. The Sim-Tran I-Beam clamp is specifically engineered to grip the flange of a structural I-beam, providing a rigid, non-slip termination point that won’t migrate over time.

Because these clamps rely on a screw-tightening mechanism against steel beams, they are designed to handle significant vibration. They are essential for massive outdoor gantries where wind loading and structural thermal expansion can put immense strain on the festoon anchor.

Always check your beam flange width against the clamp’s spec sheet before ordering, as compatibility is specific. When properly torqued, this clamp offers the highest level of stability available for I-beam track profiles.

Anver VPF-EC-1 End Clamp: Vacuum Lifter Systems

Vacuum lifter systems place unique stresses on festoon cables due to the rapid movement and often vertical orientation of the equipment. The Anver VPF-EC-1 is designed specifically for these high-movement applications, prioritizing cable longevity and precise positioning.

This clamp minimizes cable fatigue by providing a smooth radius at the transition point, preventing the sharp kinks that eventually cause core wire breaks. It is a specialized tool, but it is indispensable if your workflow involves frequent, rapid-fire material handling.

If you are maintaining vacuum lift systems, do not settle for standard C-track clamps that may not account for the vertical whip of the cables. Investing in a system-specific clamp like the Anver unit will drastically extend the service life of your power lines.

Choosing Your Clamp: C-Track vs. I-Beam Systems

The fundamental decision is matching the clamp to the track type. C-track systems house the trolleys inside a protective channel, while I-beam systems hang trolleys from the lower flange.

• C-Track: Use for clean, indoor environments where protection from debris is necessary.
• I-Beam: Use for heavy industrial outdoor environments where durability and high load capacity are paramount.

Never attempt to shim a clamp meant for a narrow flange onto a wider beam. The mechanical failure risk is too high, and the potential for a dropped festoon line could lead to catastrophic equipment damage or site injuries.

How to Properly Install a Festoon End Clamp

Proper installation starts with the tensioning sequence. A common error is installing the clamp too tightly before the cable sag is dialed in, which prevents proper adjustment of the festoon loop length.

1. Secure the clamp to the track, ensuring all teeth or grip pads are fully seated.
2. Loosely insert the cable to establish the initial loop drop.
3. Adjust the loops to match the trolley spacing across the entire run.
4. Fully torque the clamp bolts to manufacturer specifications, ensuring no cable slippage occurs.

Avoid overtightening to the point of deforming the cable jacket. The goal is to create a stationary anchor that holds the cable bundle firmly without damaging the insulation or the internal conductors.

Understanding Load Ratings and Cable Sag Factor

Load ratings are not merely suggestions; they are safety limits defined by the weight of your cables and the physical forces of the festoon movement. A cable that is too taut will snap under the strain of a full-speed trolley move, while a cable that is too loose will tangle in the tracks.

Calculate your sag factor by measuring the distance between trolleys and ensuring that the cable loop hangs at a consistent depth. If the festoon is outdoor-rated, account for wind load, which acts like a sail on the loops, pushing them against the tracks.

When in doubt, consult the manufacturer’s documentation for the maximum allowable loop weight. If you are adding more cables to an existing system, you must re-verify that the end clamp can handle the increased total mass.

When to Replace Your Festoon System Clamps

Fatigue is invisible until it is too late. Inspect your end clamps during every quarterly preventative maintenance cycle for signs of corrosion, loose bolts, or “track walking,” where the clamp has slowly migrated away from its intended position.

Replace any clamp that shows signs of deep oxidation, as compromised steel strength can lead to sudden failure. Additionally, if you notice the cable insulation is being scored by the clamp’s teeth, replace the unit and ensure the new hardware is appropriately sized for your specific cable diameter.

Treating the festoon system as a set-and-forget component is the fastest way to trigger an emergency repair call. Consistent inspection of your termination points is the cheapest insurance policy against unexpected system downtime.

The festoon system is the lifeline of your overhead equipment, and the end clamp is the anchor that keeps that lifeline secure. By matching the right hardware to your track type and load requirements, you move beyond simple repairs into a cycle of long-term reliability. Always prioritize high-quality, application-specific components to avoid the cycle of frequent, frustrating replacements.
