6 Best Cable Organizers For Neat Motor Control Wiring

Messy control panels are more than just an eyesore; they are a direct path to troubleshooting nightmares and potential code violations. When wires are packed haphazardly into a panel, tracing a single signal during a diagnostic check becomes nearly impossible. Professional-grade wire management ensures that motor controls remain serviceable and reliable over the long haul. Proper organization protects the integrity of the terminations and keeps heat buildup under control within the enclosure.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Panduit PanelMax: Pro’s Choice for Control Panels

The Panduit PanelMax system is specifically engineered to maximize usable space in crowded electrical enclosures. Unlike traditional wire ducts that consume valuable mounting real estate, this design utilizes corner-mount configurations to reclaim the often-wasted space in the corners of a panel.

For the installer working on complex automation or large motor control arrays, this efficiency is invaluable. It keeps the side channels clear, allowing for easier access to DIN-rail-mounted components. When space is at a premium, this is the gold standard for maintaining a tidy, high-density layout.

However, the precision required for installing corner-mounted ducts is higher than with standard center-mount options. Precise measuring is essential to ensure that the ducting does not interfere with the door swing or internal component clearance. Always verify the depth of the cabinet before ordering to avoid fitment issues.

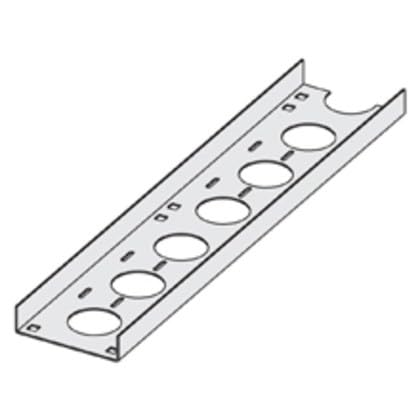

Eaton B-Line Cable Tray: For Heavy-Duty Wire Runs

Eaton B-Line cable trays are the preferred solution for routing massive amounts of wire between motor drives and remote control stations. These trays provide a rigid, structural pathway that keeps heavy bundles off the panel floor.

Strength and accessibility are the primary benefits here. Unlike enclosed raceways, these open-style trays allow for heat dissipation, which is critical when dealing with high-amperage runs that generate significant thermal energy. They offer a clear path for expansion if additional sensors or motors are added to the system later.

When specifying metal trays for industrial environments, account for the weight of the cables and the span between supports. Using under-sized supports leads to sagging, which puts unnecessary strain on wire connections. Always follow the manufacturer’s load-bearing specifications to prevent long-term structural failure.

Techflex F6 Woven Braid: Flexible Abrasion-Proof

Techflex F6 is a split-braid tubing that offers a perfect balance of protection and flexibility for moving machine parts. Its unique “wrap-around” design allows for installation over existing wire runs without the need to disconnect a single terminal.

The material provides superior abrasion resistance, shielding critical signals from sharp edges or mechanical vibration. This is essential for wiring connected to moving motor platforms where constant flexing would otherwise degrade standard insulation.

The primary trade-off is that it does not provide the same degree of rigid, organized routing as a plastic duct. It is meant to bundle, not to map. Use it for the final leg of a run from a junction box to a motor terminal where movement is inevitable.

Wago 221 Series: Fast Clean Wire Terminations

Wago 221 lever-nuts have changed the landscape of wire termination by replacing cumbersome wire nuts with reliable spring-pressure technology. These connectors ensure a consistent, vibration-proof connection every time, regardless of the installer’s hand strength.

In a motor control panel, these allow for rapid troubleshooting and modular swaps. If a relay needs replacing, simply flip the lever, extract the wire, and move on. This speed is a major advantage when downtime is costing money.

While these are incredibly effective, they must be used within the specified wire gauge range for the best results. Over-stripping the wire or using incompatible gauges can create loose connections that cause high resistance and heat. Keep a few different sizes on hand to ensure every circuit is terminated properly.

3M Adhesive Cable Mounts: Secure Stick-On Routing

3M adhesive mounts provide a way to secure wire runs where drilling into an enclosure is either impossible or strictly prohibited by the warranty. They offer a clean, professional aesthetic for low-voltage signal lines that run along the sides of panels.

Surface preparation is the deciding factor in whether these stay stuck for ten years or fall off within a month. Wipe the surface with an alcohol-based cleaner to remove any residual machine oil or dust before applying the mount.

These are not intended for heavy power cables or wire bundles that carry significant weight. Use them strictly for light control wires and sensor cables. When installed correctly, they provide a clean routing path that keeps the panel interior looking sharp.

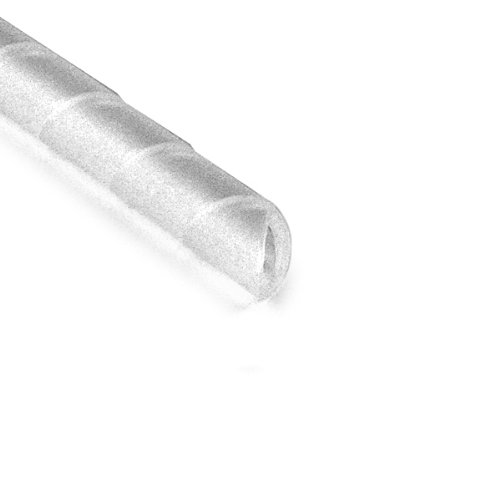

HellermannTyton Spiralwrap: Versatile Cable Bundling

HellermannTyton Spiralwrap is the classic, economical choice for bundling wires that need to exit the main raceway at different points. Its helical structure allows wires to break out of the bundle at any interval, making it highly adaptable for custom configurations.

It provides a decent layer of protection without sacrificing the accessibility of the individual wires. If you need to add or remove a single conductor from a bundle later, you can simply pull it through the gaps in the spiral.

The limitation is that it does not provide the rigid structure of a hard plastic duct or the high-impact protection of braided sleeves. It is best suited for internal panel use where the environment is relatively clean and protected. Use it as a secondary organization tool, not as the primary backbone of your wire management.

Choosing Your Organizer: Duct Tray or Loom?

Selecting the right organizer depends on the environment and the nature of the wiring. Rigid plastic ducts, such as the Panduit variety, are ideal for high-density, stationary control panels where wire counts are high and order is paramount.

Conversely, flexible looms like Techflex or Spiralwrap are superior for applications involving motion, vibration, or erratic cable exits. Trying to force a rigid duct into an application that requires movement will lead to wire breakage at the rigid transition point.

Assess the “mobility” of the installation site. If the cabinet is fixed and stable, go with rigid ducting. If the wires are routed to a motor that vibrates or moves on a track, prioritize flexible protection.

How to Size Duct and Tray for Your Cable Fill

Calculating the wire fill capacity is often overlooked, leading to overloaded trays and damaged insulation. Always follow the 40% fill rule: the total cross-sectional area of the wires should not occupy more than 40% of the interior space of the duct.

This creates the necessary “breathing room” to dissipate heat and allows the installer to pull future wires through without damaging existing ones. Overstuffing a duct makes maintenance nearly impossible, as you cannot extract a specific wire without removing the entire harness.

When planning your run, measure the diameter of your largest cable bundle and add a 20% margin for future additions. It is always cheaper to install a slightly larger duct now than to replace a full raceway system two years down the road.

Best Practices for Mounting and Securing Raceways

Installation quality starts with the mounting surface. Whether you are using rivets, screws, or adhesive backing, the raceway must be perfectly aligned and securely fastened to prevent vibration from loosening the components over time.

Always use a level when installing long runs of ducting. A slight misalignment across three feet can result in a significant gap or uneven look by the time you reach the end of the panel. For screw-mounted ducts, tighten until firm, but do not overtighten, as this can crack the plastic or cause it to bow.

Clean up the “burrs” after cutting your ducts to length. Using a sharp deburring tool ensures that the wires do not snag on the edges during the pull. A clean, smooth-edged duct protects the insulation and speeds up the entire assembly process.

Grounding and Bonding Your Metal Cable Trays

Metal cable trays must be properly grounded to ensure the safety of the entire system. When you use metal trays, the tray sections themselves must be bonded together to create a continuous electrical path to the ground.

Failing to bond the sections creates a hazardous condition where the tray could become energized during a short circuit. Use approved bonding jumpers across every connection point, especially where expansion joints or directional changes occur.

Local electrical codes dictate the specific requirements for grounding in your area. Always verify these requirements during the design phase. A metal tray system is only as safe as the grounding connection at its origin point.

Proper cable management is the hallmark of a professional installation. By selecting the right organizers—whether rigid ducts for static panels or flexible looms for moving parts—you ensure the longevity and serviceability of the entire motor control system. Spend the extra time planning your wire paths now to avoid the inevitable frustration of a disorganized, unserviceable panel later.
