6 Best fluid reservoirs for manifold expansion to Consider

Managing fluid expansion within a pressurized system is the silent workhorse that prevents catastrophic pipe failure and costly water damage. Whether dealing with a sprawling hydronic manifold or a residential water heater loop, these reservoirs provide the necessary cushion for thermal expansion. Choosing the wrong unit often leads to weeping relief valves and premature pump wear. This guide cuts through the technical clutter to identify the most reliable reservoirs for real-world mechanical systems.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Amtrol EXTROL EX-30: The Industry Standard

The EXTROL EX-30 remains the benchmark for residential hydronic systems due to its robust construction and predictable performance. Built with a heavy-duty steel shell and a high-grade diaphragm, it consistently handles the pressures generated by fluctuating water temperatures.

Contractors favor this unit because its failure rate is remarkably low, which reduces callbacks after a system installation. When working on a mid-sized boiler setup, the EX-30 offers the precise volume needed to stabilize pressure without overhauling the entire system footprint.

Reliability is the primary selling point here. While other brands might offer bells and whistles, the EX-30 is a workhorse that simply functions as intended for years. If a stable, no-nonsense solution is required for a standard hydronic installation, this remains the go-to choice.

Watts ETX-30 Non-Potable Expansion Tank: Best Value

The Watts ETX-30 provides a compelling balance between professional-grade durability and cost-effectiveness. It is specifically engineered for non-potable closed-loop heating systems, making it a favorite for budget-conscious retrofits where performance cannot be sacrificed.

Its lightweight design makes it easier to mount in tight utility closets or cramped mechanical rooms. Even when space is limited, the unit offers enough capacity to manage significant fluid expansion without bulky dimensions.

Value in this context does not mean cutting corners; it means paying for the necessary engineering without the premium price tag of high-end specialized units. For projects where the client requires a budget-friendly but code-compliant solution, the ETX-30 is consistently reliable.

Caleffi 557 Series Thermo-Expansion Tank: Top Pick

Caleffi is widely regarded for precision engineering, and the 557 Series is a standout in the hydronic space. These tanks feature a specialized internal bladder design that prevents the common issue of system water becoming trapped or stagnant.

Installation is notably intuitive, which saves labor time when swapping out an old, waterlogged tank on a job site. The material quality is superior, resisting corrosion significantly longer than standard steel tanks found in big-box retailers.

This is the top pick for installations where longevity is the priority over upfront savings. For complex manifold systems that require high-performance components to protect expensive pumps and sensors, Caleffi is the professional standard.

Taco 309-3 Potable Water Expansion Tank: Potable Water Choice

When the system involves potable water, compliance with health standards is non-negotiable. The Taco 309-3 is designed specifically for this environment, featuring a stainless steel connection and food-grade internal components that prevent water contamination.

This tank is the professional choice for domestic hot water loops where thermal expansion can quickly blow out a temperature and pressure relief valve. Its construction prevents the buildup of bacteria, a critical concern for homeowners and inspectors alike.

The engineering behind Taco products reflects years of hydronic expertise. While it requires a slightly higher initial investment, the peace of mind provided by a potable-rated, high-pressure vessel is well worth the cost in any residential plumbing application.

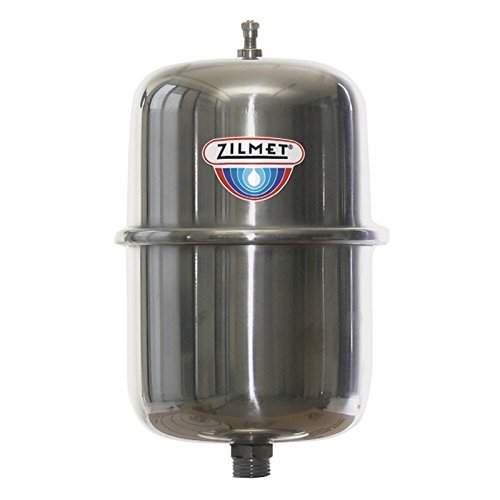

Zilmet Cal-Pro 2.1 Gallon Expansion Tank: Compact

In modern high-efficiency mechanical rooms, space is often at a premium. The Zilmet Cal-Pro series is the answer for those working in tight spots, offering a streamlined profile that fits where standard-sized tanks simply won’t clear.

Despite the reduced footprint, the Cal-Pro does not compromise on its ability to handle pressure fluctuations. Its internal membrane is highly flexible, allowing for efficient displacement during rapid temperature shifts common in modern high-output boilers.

Choosing the Cal-Pro is a strategic move when retrofitting systems in older buildings where mechanical closets were never designed for modern expansion hardware. It keeps the installation neat and prevents the “cluttered pipe” syndrome that often haunts DIY projects.

Webstone 41603WPR Expansion Tank Pro-Pal: Smart

The Webstone 41603WPR is more than just a tank; it is a system-integrated solution that simplifies maintenance. Its design incorporates a service valve, which is the most critical feature for anyone planning to service the system in the future.

By allowing the tank to be isolated, drained, and serviced without shutting down the entire manifold loop, this unit saves hours of labor during routine maintenance cycles. This feature is particularly valuable for commercial setups where downtime must be kept to a minimum.

Smart design in the plumbing world isn’t about electronics—it’s about accessibility. Investing in a Pro-Pal unit means prioritizing the long-term ease of service, a decision that pays off the moment the first maintenance check arrives.

How to Size Your Manifold Expansion Reservoir

Sizing a tank is not a guessing game, and relying on the “eyeball test” is a recipe for system failure. Use the total system volume, the minimum and maximum operating temperatures, and the set pressure of the relief valve as your primary data points.

If a tank is too small, the pressure will spike rapidly, forcing the relief valve to discharge water. If a tank is too large, it is simply a waste of material and space, though rarely a performance issue.

Always consult the manufacturer’s sizing charts, which are based on specific expansion coefficients of water. When in doubt, sizing slightly larger provides a safety margin that can extend the life of the entire system.

Potable vs. Non-Potable Tanks: Know the Difference

Potable water tanks are built to maintain water quality and must meet strict NSF standards to ensure no harmful materials leach into the supply. They are typically lined with antimicrobial materials and have specific coatings on the inner shell.

Non-potable tanks, used in closed hydronic heating loops, do not require these health certifications and are often built with different internal diaphragms. Using a non-potable tank on a drinking water line is a code violation and a significant health risk.

Never swap these categories; the structural requirements and the internal chemistry are fundamentally different. Always check for the “potable” rating stamped directly onto the tank body before installation.

Properly Charging and Installing Your New Tank

A tank must be pre-charged with air to match the system’s cold-fill pressure before any water is introduced. If the air pressure is incorrect, the diaphragm will stretch prematurely, significantly shortening the tank’s lifespan.

Install the tank on the suction side of the system pump whenever possible to prevent cavitation and pressure drops. A simple, well-supported mounting bracket is essential to ensure the weight of the tank doesn’t strain the pipe fittings over time.

Use a high-quality gauge to check the pre-charge pressure annually. It is a five-minute task that ensures the tank remains a functional buffer rather than becoming a heavy, dead-weight pipe strain.

Signs Your Old Expansion Reservoir Is Failing

The most common sign of failure is a waterlogged tank, which happens when the internal bladder leaks or ruptures. If the tank sounds solid when tapped with a screwdriver, rather than hollow, it is likely full of water and needs immediate replacement.

Frequent weeping from the pressure relief valve is another red flag, indicating that the tank is no longer absorbing the thermal expansion. Inspect the air valve for signs of moisture; if water sprays out when the valve is depressed, the diaphragm has already failed.

Ignoring these signs leads to increased pump stress and potential leaks throughout the system piping. Replace a failed unit promptly to restore pressure stability and protect the remaining components of the manifold.

Selecting the right expansion reservoir is a balance of volume requirements, spatial limitations, and the specific demands of the water supply. By prioritizing durability, proper sizing, and ease of service, you ensure that the system functions efficiently for the long haul. Properly installed and maintained, these units provide the reliable foundation every robust mechanical system requires.
