6 Best Pipe Hangers For Hydraulic Line Routing

Hydraulic lines under pressure are the arteries of heavy machinery and industrial systems, and their longevity depends entirely on how well they are anchored. Improper clamping leads to micro-vibrations that eventually manifest as catastrophic seal leaks or fatigue-cracked tubes. Selecting the right hardware is not just about holding a line in place; it is about managing the kinetic energy generated by pumps and actuators. Proper routing ensures that maintenance remains straightforward while protecting the structural integrity of the entire hydraulic circuit.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Stauff Standard Series: The Industry Benchmark

The Stauff Standard Series clamp is the undisputed king of hydraulic routing for a reason. These polypropylene blocks provide a rock-solid mounting surface that cradles the tube without creating stress points. When lines run across high-vibration equipment, these clamps dampen harmonic frequencies effectively.

Installation involves a base plate, the block halves, and a top cover plate. This design captures the line securely, preventing both axial movement and lateral rattling. In high-pressure applications where tube wall thickness is critical, these clamps ensure the line maintains its structural centerline.

For the contractor, the bottom line is reliability. These are the clamps specified on blueprints for a reason, and substituting them with cheaper hardware often results in premature line failure.

ZSI-Foster Cush-A-Clamp: Best for Vibration

When dealing with high-cycle equipment, vibration is the silent killer of hydraulic systems. The Cush-A-Clamp utilizes a thermoplastic elastomer cushion that sits between the tube and the metal clamp housing. This soft interface absorbs shock and prevents the “metal-on-metal” rubbing that eventually wears through tube coatings.

This system is particularly effective in environments where lines are exposed to rapid pressure spikes. By decoupling the tube from the rigid frame of the machine, the cushion acts as a mechanical fuse. It absorbs energy that would otherwise travel directly into the fitting threads.

If the job site involves heavy-duty excavators or industrial presses, this is the gold standard for long-term protection. It keeps lines quiet and keeps the joints from backing off due to constant oscillation.

Brennan Loop Clamp: Versatile & Cost-Effective

Loop clamps are the lightweight workhorses of the hydraulic world. Consisting of a simple steel or stainless band coated in EPDM rubber, they are designed for lighter duty routing where space is at a premium. They are ideal for securing lines along panels or tight bulkheads where a bulky block clamp simply will not fit.

While they lack the heavy load-bearing capacity of a block style, they excel in tidy, non-pressurized or low-vibration runs. They hold the tube firmly in position during assembly, ensuring that the final install looks professional and organized.

These are best kept in the service truck for quick repairs or secondary line routing. They offer enough stability for basic tasks without the weight or cost of full-scale industrial mounting blocks.

Parker ParKlamp: Pro-Level Hydraulic Systems

Parker’s ParKlamp system is engineered for the rigors of modern hydraulics, focusing on ease of assembly and high-pressure performance. These clamps are designed to withstand significant hydraulic shock, making them the preferred choice for systems operating with high-flow control valves.

The design features a unique stacking capability that allows for multiple lines to be routed in a clean, vertical profile. By interlocking the clamps, the force is distributed across the entire mount rather than being concentrated on a single bolt.

For a system that needs to be torn down and rebuilt frequently for maintenance, the ParKlamp interface is incredibly user-friendly. It reduces the likelihood of over-tightening, which is a common error that leads to crushed tubes.

B-Line Strut Clamp: For Fast Unistrut Runs

When routing hydraulics through a facility, mechanical contractors frequently use Unistrut as the backbone for pipe and tube support. B-Line strut clamps are specifically designed to lock into these channels, allowing for rapid adjustment along the entire length of the strut.

These are invaluable for long, linear runs through a shop or warehouse. The clamp design allows for sliding the assembly into place before final tightening, which saves hours of layout time. It provides a level of rigidity that matches the building structure itself.

They are rugged, zinc-plated for corrosion resistance, and fully modular. If the system design changes, the clamp can be moved along the strut without drilling new holes in the host structure.

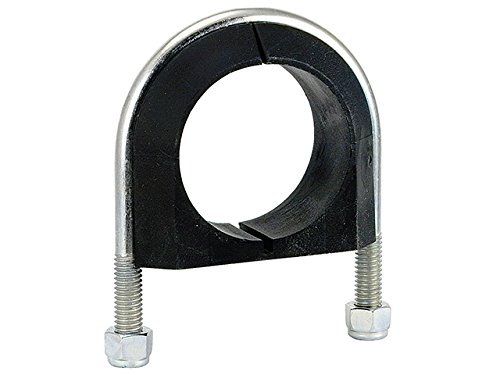

Anvil Cushioned U-Bolt: Heavy-Duty Anchoring

For larger hydraulic pipes—those exceeding an inch in diameter—a standard clamp often isn’t enough. Anvil cushioned U-bolts are the go-to for securing heavy-wall tubing or pipe directly to steel beams or structural framework.

The cushion prevents galvanic corrosion between dissimilar metals, which is essential if a steel tube is mounted to a high-tensile steel frame. Because they utilize a U-bolt design, they provide superior clamping force that can withstand heavy side-loading.

These are strictly for structural integration where heavy vibrations or thermal expansion are expected. They aren’t meant for delicate, thin-walled tubing, but for the main arteries of a high-capacity system, they provide unmatched security.

Clamp Materials: Steel vs. Stainless vs. Plastic

Choosing the material for your clamp is just as important as choosing the style. Use the following guide to match the material to the job site environment:

• Polypropylene: The best all-rounder. It is vibration-dampening, resistant to oils and chemicals, and effective in a wide temperature range.
• Steel (Zinc-Plated): Ideal for interior environments. It offers the best strength-to-weight ratio for heavy-duty anchoring.
• Stainless Steel: Mandatory for marine environments or food-grade processing plants where corrosion resistance is non-negotiable.

Always consider the galvanic reaction potential when choosing hardware. If the machine frame is aluminum and the clamp is stainless, ensure there is an insulating layer to prevent localized corrosion at the mount point.

How to Properly Space Hangers on Hydraulic Lines

There is an old rule of thumb in hydraulics: support lines at intervals that prevent sagging but allow for thermal expansion. Generally, for tubes under 1/2 inch in diameter, aim for spacing between 3 and 5 feet. As the diameter increases, the stiffness of the tube increases, but the weight of the fluid does as well.

If the lines are routed vertically, support them more frequently to prevent the weight of the oil column from putting strain on the fittings. Always place a support within 6 inches of any bend or connection point.

A line that is unsupported near a fitting acts like a lever, creating a mechanical advantage that will eventually crack the flare or the solder joint. Keep the span short, and the system will remain tight for years.

Sizing Your Clamps: Tube OD vs. Pipe Size Guide

Confusion between Outside Diameter (OD) and Nominal Pipe Size (NPS) causes more installation failures than any other factor. Hydraulic tubing is almost always sized by its actual OD. If the tube is 1/2 inch OD, you must buy a 1/2 inch clamp.

Pipe, however, is sized by its internal capacity (NPS). A 1/2 inch pipe is significantly larger than 1/2 inch tubing. Always measure the tube with a pair of calipers before ordering hardware to ensure the clamp fits the tube perfectly.

A loose clamp offers no vibration protection, while a clamp that is too small will pinch the tube, potentially restricting flow or creating a stress riser. Accuracy here is the difference between a system that runs for a decade and one that fails in a month.

Preventing Vibration and Shock with Proper Clamping

The primary goal of a clamping system is to eliminate the resonant frequency of the hydraulic lines. If a line vibrates at the same frequency as the pump, the resulting harmonic motion will destroy joints in short order.

Always orient clamps to brace against the direction of the vibration. If the line is subject to high-pressure pulses, ensure the clamps are anchored to a structural member that has enough mass to absorb the energy.

By treating the hydraulic routing as a structural component rather than an afterthought, the risk of failure drops drastically. Secure the lines properly, and the system will reward that effort with years of trouble-free operation.

Proper hydraulic routing is an investment in machine uptime. By choosing the right clamp for the environment and installing it with attention to support spacing and sizing, you eliminate the most common failure points in fluid power systems.
