6 Best Panel Lights For Illuminating Control Switch Indicators

Control switch indicators are the silent sentinels of any electrical control panel, signaling the status of critical systems from industrial roof vents to site lighting arrays. Choosing the wrong indicator leads to premature failure, poor visibility under harsh job site sunlight, or frustrating compatibility issues during final commissioning. Reliable illumination isn’t just about brightness; it is about durability in environments defined by vibration, dust, and temperature swings. This guide breaks down the industry’s most dependable panel lights to keep your systems running without a hitch.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

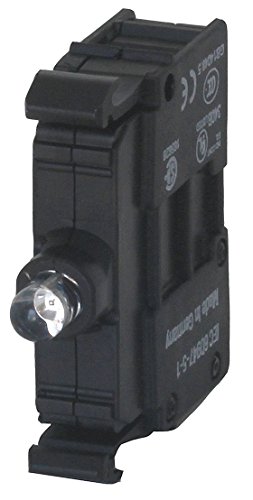

Eaton M22 LED Indicators: The Gold Standard Pick

[lasso id=”16590″]

Eaton M22 indicators are the go-to choice for contractors who refuse to return to a site twice for the same repair. These units are engineered with a focus on longevity, utilizing high-quality LEDs that resist the vibration common in heavy-duty industrial environments.

When fastening heavy equipment controls or complex roof-integrated machinery, these indicators provide a consistent, clear light output that remains visible even in brightly lit staging areas. The modular design allows for rapid assembly, significantly reducing downtime during high-pressure installation phases.

• Vibration resistance: Exceptional, ideal for equipment with high-torque motors.
• Maintenance: Low-profile lens design minimizes dust accumulation.

Bottom line: If the project budget allows, the M22 series is the smartest insurance policy against recurring indicator failure.

Schneider Harmony XB5: Best for Modular Setups

[lasso id=”16591″]

The Harmony XB5 series excels when space is at a premium and the panel layout is subject to last-minute design changes. Its snap-together architecture allows for rapid configuration adjustments, which is vital when you are managing complex control schemas on a tight schedule.

These indicators are lightweight yet robust, making them ideal for plastic enclosures where weight distribution matters. They provide a crisp, clean aesthetic that makes control panels look professional and well-ordered, a hallmark of high-quality electrical work.

• Versatility: Highly adaptable for both light-duty and medium-duty applications.
• Installation: Tool-free mounting clips save significant time during final assembly.

Bottom line: Choose the XB5 if the panel design involves frequent updates or requires a high level of modular flexibility.

VCC CNX 722 Series: Brightest for Outdoor Panels

In outdoor settings, especially on roofs or exposed exterior walls, ambient sunlight often washes out standard indicators. The VCC CNX 722 series is specifically engineered for high-visibility applications, punching through intense glare to ensure status is readable from a distance.

These lights are built to handle the elements, featuring rugged construction that prevents water ingress during heavy rain. They are an essential spec for remote control cabinets that don’t get the benefit of being tucked away inside a climate-controlled room.

• Visibility: Superior brightness even in direct sunlight.
• Durability: Integrated gaskets provide a reliable seal against moisture.

Bottom line: For exterior panels that must remain visible during high-noon conditions, the CNX 722 is the clear winner.

APEM Q Series Indicators: Best for Custom Panels

[lasso id=”16592″]

APEM’s Q Series is designed for those who need to fit a specific aesthetic or unique cutout dimension without sacrificing durability. These indicators offer a wide array of bezel styles and color options, perfect for distinguishing between multiple functions on a crowded custom control board.

When the architectural demands of a project require the panel itself to be as visually clean as the building structure, these indicators provide a flush-mount finish that is hard to match. They are built for precision, ensuring that the light profile remains uniform across the entire array.

• Customization: Extensive range of bezel finishes and lens colors.
• Precision: Tight tolerance manufacturing ensures a perfect fit every time.

Bottom line: When the project specs demand a specific look or custom interface, the APEM Q Series offers the most flexibility.

Bulgin Polysnap: Best Switch-Indicator Combo

[lasso id=”16593″]

Sometimes the most efficient move is to eliminate redundant panel holes by using a single integrated component. The Bulgin Polysnap combines the switch and the indicator in one housing, drastically simplifying the wiring and reducing the total panel footprint.

This is a massive advantage in retrofit scenarios where panel real estate is extremely limited. You get a reliable switch mechanism coupled with an LED indicator that tells you exactly when the circuit is energized, saving space without compromising on performance.

• Footprint: Reduces the number of cutouts required by half.
• Convenience: All-in-one installation is faster than mounting separate components.

Bottom line: Opt for the Polysnap when space constraints make mounting separate switches and lights impractical.

Allen-Bradley 800F: Toughest for Industrial Use

[lasso id=”16135″]

Allen-Bradley components have a reputation for surviving the harshest job sites on the planet. The 800F series is built with reinforced materials that stand up to the daily abuse of a construction environment, including accidental impacts, chemical exposure, and extreme vibration.

If you are working on a heavy industrial site where tools are dropped and panels are regularly bumped by machinery, this is the hardware you need. It isn’t the cheapest option, but it is effectively indestructible under normal operating conditions.

• Build Quality: Industrial-grade plastic and metal components resist cracking and degradation.
• Reliability: Long-term performance in high-duty cycles.

Bottom line: For critical systems where failure is not an option, the 800F series is the industry standard for durability.

Matching Indicator Voltage to Your Control Circuit

Always verify the supply voltage before choosing an indicator, as applying 24V to a 12V bulb will result in an immediate, smoky failure. Standardize on one voltage throughout the control panel if possible to keep spares simple. If mixing voltages is unavoidable, color-code the wiring or label the terminal blocks clearly to avoid future confusion.

• 12V/24V: Best for low-voltage logic circuits and PLC interfaces.
• 120V/240V: Common in direct line-voltage applications; ensure the housing is rated for higher dielectric strength.

Panel Cutout Size: Getting the Mounting Right

Precision is key when cutting holes for panel indicators, as an oversized hole ruins the seal and a tight one makes installation a struggle. Most indicators require either a 16mm, 22mm, or 30mm hole. Always use a dedicated hole punch tool rather than a standard drill bit to ensure clean, burr-free edges that won’t compromise the gasket.

NEMA and IP Ratings: What Your Job Site Demands

Indicators are only as good as the seal between them and the panel. For indoor, dry environments, IP65 is usually sufficient, but any outdoor project requires at least IP67 or NEMA 4X to prevent moisture from causing internal shorts. If the panel is in a high-washdown area or exposed to saltwater, don’t skimp on the ingress protection—moisture is the primary enemy of electrical longevity.

Wiring Terminals: Quick-Connect vs. Screw vs. Solder

The choice of terminal depends on the vibration environment and how often you expect to replace the component. Quick-connect terminals are ideal for rapid assembly and modular systems, though they require a high-quality crimp to prevent loose connections. Screw terminals offer a more permanent, high-torque bond, while solder terminals are the best for long-term reliability in high-vibration machinery where loose connections are simply not acceptable.

Selecting the right indicator is a foundational step in ensuring the safety and operational visibility of any control system. By matching the durability of the hardware to the severity of the environment, you ensure that the interface remains functional for the entire life of the project.
