7 Best Signal Wires For Low Voltage Control Circuits

Low-voltage control circuits are the nervous system of modern residential and commercial builds, from HVAC systems to automated security arrays. Choosing the wrong wire can lead to ghost signals, intermittent power drops, or outright system failure after the walls are closed up. Reliability in these circuits is non-negotiable because troubleshooting a buried signal line is a costly nightmare. This guide narrows down the top cable choices to keep your systems running exactly as designed.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Southwire 18/5 Thermostat Wire: Best Overall

Southwire’s 18/5 thermostat wire is the industry standard for a reason. It offers the perfect balance of conductivity and physical durability for most multi-stage HVAC systems.

The insulation is stripped easily, which saves time when working in cramped mechanical closets or on precarious ladders. The 18-gauge conductors ensure minimal voltage drop across standard residential runs.

Avoid the temptation to use thinner gauge wire for long runs just to save a few dollars. Reliable signal integrity is the difference between a system that cycles correctly and one that requires a mid-season service call.

Belden 5200UE Security Cable: Best Shielded Wire

When running cables near high-voltage lines or fluorescent lighting, interference becomes a genuine concern. Belden 5200UE provides the shielding necessary to keep low-voltage data clean and crisp.

The shielded construction acts as a barrier against Electromagnetic Interference (EMI), preventing the “noise” that plagues unshielded lines. This is critical for high-end security cameras or precision sensor arrays where signal accuracy is paramount.

While shielding makes the cable slightly stiffer, it is a necessary tradeoff for performance. Use this when running lines through industrial spaces or areas saturated with heavy electrical infrastructure.

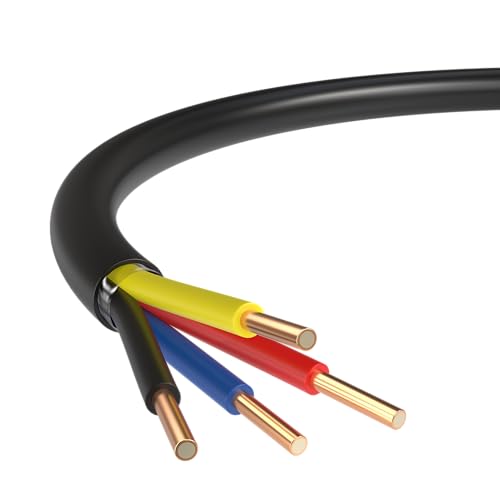

Genesis 22/4 Direct Burial Cable: For Outdoors

Outdoor control circuits face extreme thermal cycling, moisture, and potential UV degradation. Genesis 22/4 is specifically engineered to survive these harsh environmental conditions without cracking or failing.

The jacket is ruggedized to handle direct soil contact or outdoor conduit exposure. Unlike standard indoor wire, this material won’t become brittle after one season of exposure to direct sunlight.

Always ensure that outdoor splices are housed in waterproof junction boxes filled with silicone sealant. Even the best direct-burial wire will fail if moisture wicks into the connection point.

TrueCABLE Cat6 Riser (CMR): For Versatility

Cat6 cable is no longer just for internet routers; it is a powerhouse for modern low-voltage control and smart home integration. TrueCABLE’s Riser-rated option offers the high-speed data capacity required for advanced automation.

Because it features four twisted pairs, it allows for multiple control signals in one slim profile. This significantly reduces the amount of wire bundle crowding inside wall cavities.

Ensure the cable is handled with care during installation, as kinking or over-tightening during pulls will degrade performance. When precision matters for long-distance data transmission, this is the go-to solution.

Honeywell 18/2 Thermostat Wire: Simple Circuits

For basic heating or cooling controls that do not require extra stages, Honeywell 18/2 is the definition of reliability. It is simple, effective, and manufactured to hold up under the demands of daily equipment operation.

The jacket is color-coded and easy to identify, which speeds up the termination process on the terminal board. It is thin enough to tuck neatly behind wall plates without adding unnecessary bulk.

Keep a spool of this on the truck for basic repairs or simple, single-stage installs. Over-engineering a simple circuit often introduces more points of failure than are necessary.

Syston Cable 22/6 Shielded: For Alarm Panels

Alarm panels require consistent connectivity to sensors and contacts across a building. Syston’s 22/6 shielded cable provides the density needed to connect multiple zones back to a central hub.

The shielding provides peace of mind that false alarms won’t be triggered by nearby electrical interference. It is flexible enough to pull through studs and joists without kinking, which is a major time-saver during a rough-in.

Always label both ends of the six conductors immediately upon installation. With that many wires in a single sheath, misidentifying a zone is a common error that leads to wasted time during testing.

GearIT 16-Gauge Speaker Wire: Budget-Friendly Pick

While marketed for audio, high-quality 16-gauge speaker wire is a highly effective, cost-efficient solution for low-voltage LED lighting or simple relay triggers. The thicker gauge handles current well and is remarkably durable.

The clear or color-coded insulation makes it easy to track polarity during installation. Because it lacks a heavy outer jacket, it is exceptionally flexible, making it ideal for running through tight furniture gaps or behind moldings.

Be aware that this wire lacks fire-rating certification for plenum or riser spaces. Use it only for exposed runs or basic internal projects where stringent building codes do not require high-fire-rating jackets.

Choosing the Right Wire Gauge (AWG) for Your Run

Wire gauge is about managing resistance; the longer the run, the thicker the wire needs to be to prevent voltage drop. An 18 AWG wire is standard, but you should move to a 16 AWG or larger if the distance exceeds 100 feet.

Ignoring voltage drop is a recipe for intermittent equipment behavior that is notoriously difficult to troubleshoot. If a device has a specific amperage draw, check the manufacturer’s manual for recommended gauge limits.

When in doubt, upsizing the gauge never hurts the system. The extra cost of the copper is significantly cheaper than the labor required to pull new wire later.

Solid vs. Stranded Core: Which One Do You Need?

Solid core wire is rigid and maintains its shape, making it the superior choice for punch-down blocks and fixed terminal screws. It is the preferred option for permanent installations inside wall cavities.

Stranded wire, by contrast, offers excellent flexibility and vibration resistance. It is the better choice for patch cables, moving parts, or equipment that might be shifted frequently.

Avoid using solid wire in areas subject to constant vibration or mechanical movement, as it will eventually fatigue and snap. Match the core type to the environment to ensure a permanent connection.

Understanding Wire Ratings: Plenum Riser & CM/CL2

Wire ratings are not just suggestions; they are code-dictated safety requirements. A Plenum (CMP) rating is required for spaces used for air circulation, as these jackets are designed to emit minimal smoke in a fire.

Riser (CMR) wire is rated for vertical runs between floors, requiring a higher level of flame resistance than standard CM/CL2 cable. Using the wrong rating in an inspection-heavy build can lead to a red tag and expensive rework.

Always confirm the local code requirements before pulling wire through walls or ceilings. When the environment is concealed, prioritize safety ratings over convenience to protect the structure and its occupants.

Selecting the right wire is the quiet work that ensures a building’s systems perform reliably for years. By matching the gauge, shielding, and rating to the specific demands of the project, you eliminate potential points of failure before they even happen. Take the time to spec the right cable, and the finished installation will prove the value of that effort every time.
