6 Best Weather-resistant Sensor Housings for Outdoor Use

Protecting sensitive electronic sensors on a roof or building facade requires more than just a basic plastic box. Whether mounting a weather station on a standing seam metal roof or a thermal sensor under a soffit, environmental exposure will eventually find any weakness in the seal. Selecting the right enclosure means balancing impact resistance, UV degradation, and the inevitable thermal expansion that occurs under direct sunlight. Professional installations rely on proven hardware to ensure that delicate circuitry survives decades of temperature swings and high-wind moisture intrusion.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Polycase WH-14 NEMA 4X: Best Overall Housing

The Polycase WH-14 stands out because it balances rugged protection with a clean, professional aesthetic suitable for high-end residential projects. This enclosure features a built-in mounting flange, which is a massive advantage when fastening to vertical surfaces like brick chimneys or concrete parapet walls. By keeping the mounting hardware outside the sealed electronics cavity, the risk of water ingress via the screw holes is eliminated entirely.

Construction-grade performance is baked into the NEMA 4X rating, ensuring the internal components stay dry during wind-driven rain. Unlike cheaper boxes that crack after a few years of high UV exposure, the polycarbonate material remains stable. It handles the structural stress of thermal expansion well, preventing the casing from warping or popping the seal during mid-summer heat cycles.

The bottom line is simple: if the project requires a reliable, “set-it-and-forget-it” housing for a primary sensor, this is the industry standard. It provides the necessary depth for most sensor arrays and maintains an airtight environment that keeps humidity and corrosion at bay.

Bud Industries NBF-32022: The Budget-Friendly Pick

When budget constraints dictate the project scope, the Bud Industries NBF series provides a competent alternative without sacrificing critical moisture protection. This unit is built from a high-impact, flame-retardant polycarbonate that is surprisingly resilient against accidental drops or impacts from tools. For secondary sensors or non-critical remote monitoring stations, it offers excellent value.

However, saving money on the box requires stricter attention to the mounting technique. Since this unit lacks the integrated external mounting feet found on premium models, it often requires drilling through the base to secure it. Every hole drilled into an enclosure creates a potential failure point for moisture, so using high-quality EPDM rubber washers or silicone-backed fasteners is non-negotiable here.

If the site is sheltered—perhaps tucked under an eave or inside a covered walkway—this housing is more than capable. It offers a solid seal and a secure locking mechanism that prevents tampering. Use it where the exposure isn’t extreme, and keep a tube of high-grade marine sealant ready for the mounting holes.

Vynckier RVJ806HWPL1: For Harsh Coastal Areas

Coastal projects introduce the dual threats of salt spray and relentless high-velocity wind, which act as a corrosive cocktail for standard outdoor enclosures. The Vynckier RVJ806HWPL1 is engineered with fiberglass-reinforced polyester, a material that outperforms standard plastics when dealing with salt-heavy environments. It is effectively impervious to the chemical breakdown that turns brittle, standard-grade housings into liabilities.

In marine or industrial settings, the internal gear is often more expensive than the box itself, making this a smart insurance policy. Its structural rigidity ensures that the door seal remains compressed evenly, even when buffeted by gale-force winds. The lack of metallic components on the exterior also means there is nothing to rust or stain the building’s finish.

Avoid the urge to use lightweight, off-the-shelf plastic boxes on jobs located within five miles of the coast. The cost difference for this industrial-grade enclosure is negligible when compared to the downtime caused by a corroded sensor. For long-term viability in harsh zones, invest in the Vynckier.

Hammond 1554C2GYCL: Easiest for Customization

The Hammond 1554 series is a favorite for custom builds because of the clear lid option, which allows for visual verification of sensor status without opening the enclosure. When troubleshooting a sensor array that is performing poorly, being able to verify a status LED from the ground with binoculars can save a trip up the ladder. This is a game-changer for rooftop equipment diagnostics.

The internal layout is highly intuitive, featuring integrated standoffs that make mounting a printed circuit board or a DIN rail quick and painless. Because the plastic is easy to machine, adding custom ports or cable glands for multiple sensors is far less of a chore than with fiberglass alternatives. Contractors who build custom sensor arrays on-site often prefer this model for its sheer flexibility.

The trade-off is that the clear plastic may be slightly less UV-resistant than opaque gray housings over a 20-year span. Plan to install this in a location that receives moderate shade rather than full, direct southern exposure. If the project requires constant tinkering or sensor upgrades, the Hammond is the most efficient choice available.

Bopla E 235 Universal Enclosure: Most Versatile

Versatility in the field often comes down to how many different mounting configurations a single product can support. The Bopla E 235 excels in this regard, offering multiple mounting points and a modular internal design that adapts to almost any configuration. Whether it is housing a battery pack, a radio transmitter, or a complex array of environmental sensors, the space is laid out logically.

Its high-quality thermoplastic construction provides excellent insulation, which is helpful if the sensors are sensitive to internal temperature spikes. Many installers overlook the fact that heat build-up inside a black or dark grey box can skew sensor readings. The light finish and thermal properties of the Bopla help mitigate this, keeping the internal environment closer to ambient temperatures.

This enclosure is the “Swiss Army knife” of the sensor world. It is robust enough for light industrial applications yet refined enough for professional home automation setups. When the sensor requirements are complex or likely to change during the construction phase, keeping a few of these in the work truck is a smart play.

STEGO Enclosure with Vent: For Heat-Generating Gear

Some sensors, particularly those integrated with small processors or wireless transmitters, generate their own heat that can lead to drifting data or early component failure. The STEGO enclosure with an integrated vent is specifically designed to manage this micro-climate. By allowing the box to “breathe” while keeping liquid water out, it maintains an equilibrium that standard airtight boxes cannot achieve.

The pressure equalization provided by the vent is vital for installations that experience rapid temperature shifts, such as moving from a cold night into a blazing afternoon sun. Without this ventilation, internal condensation—often called the “sweat effect”—will eventually form on the electronics, regardless of how well the lid is sealed. This is common when mounting on dark metal roofing where temperatures can fluctuate by fifty degrees in a few hours.

If the sensor is drawing significant power or running a localized controller, do not rely on a standard sealed box. Spec the STEGO to ensure long-term reliability. It is the only way to effectively balance heat management with the strict requirements of a NEMA 4X rating.

NEMA & IP Ratings: What Do They Mean on the Job?

Understanding the technical rating is the difference between a housing that survives the season and one that leaks on day one. NEMA (National Electrical Manufacturers Association) ratings define how well an enclosure handles environmental factors like splashing, hosed-down water, or even external ice formation. For exterior use, look for NEMA 4 or 4X, as 4X specifically signifies extra protection against corrosion.

The IP (Ingress Protection) rating is the international standard, written as two digits like “IP66.” The first number measures protection against solids, and the second against liquids. An IP66 rating means the enclosure is dust-tight and protected against powerful water jets.

When bidding or sourcing, never assume “outdoor rated” is sufficient. Always verify the specific NEMA or IP code against the local climate. A box that is perfect for a dry desert climate may fail miserably during the humid, freeze-thaw cycles of a northern winter.

Housing Materials: Polycarbonate vs. ABS vs. Metal

The material choice determines the enclosure’s lifespan in harsh exterior conditions. Polycarbonate is generally the gold standard for roof-mounted sensors because it is tough, impact-resistant, and maintains its structural integrity over a wide temperature range. It is the best choice for any installation subject to high wind or physical debris.

ABS plastic is cheaper and easier to mold, but it is notoriously susceptible to UV degradation. Over time, ABS will become chalky, yellow, and brittle under direct sunlight, eventually cracking and losing its ability to keep water out. Only use ABS in applications where it will remain shielded from direct sunlight, such as under deep soffits or covered porches.

Metal enclosures, while incredibly strong, introduce the challenge of grounding and signal interference. If the sensor utilizes wireless communication, a metal box can act as a Faraday cage, blocking the signal entirely. Stick to high-quality polycarbonate for 90% of rooftop sensor tasks to avoid these complications.

Pro Tips for Mounting and Sealing Your Housing

Proper mounting starts with orientation. Always aim to mount the enclosure with the cable entry points facing downward. This uses gravity to prevent water from wicking along the cable and into the seal. Even with the highest-rated NEMA enclosure, a cable entering from the top is a direct invitation for water to pool against the gasket and eventually breach the interior.

When fastening to a roof or wall, use stainless steel hardware to prevent rust streaks from staining the building facade. For standing seam roofs, utilize clamp-based mounting brackets rather than penetrating the metal panels, as penetrations are the primary source of future roof leaks. If you must penetrate, ensure the area is flashed correctly with high-temperature membrane tape.

Finally, check the gasket seal before final closure. A single stray wire or a piece of debris can prevent the gasket from seating properly, rendering a 4X-rated box useless. A quick wipe of the seal with a clean rag before closing the lid is a simple step that saves a return trip to the site.

Don’t Forget Cable Glands and Vent Plugs

The weakest link in any enclosure is the point where the wire enters the box. A standard hole drilled with a bit will never be watertight. Always use proper cable glands (also known as cord grips) that tighten down onto the cable jacket. These ensure a compression-style seal that prevents both moisture intrusion and physical stress on the internal connections.

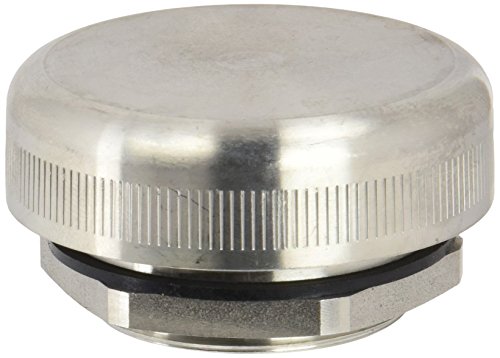

If the internal sensors require air movement or if the box is subject to extreme temperature swings, install a dedicated pressure-compensation vent plug. These allow the air pressure inside the box to equalize with the outside atmosphere without letting liquid water in. Without these, the changing pressure will eventually pull moisture past the seals.

Consider these accessories part of the enclosure kit, not an optional afterthought. A high-quality enclosure with a loose, unsealed wire entry is nothing more than a bucket that holds water. Ensure the gland size matches the cable diameter exactly for the most effective seal.

Selecting the right enclosure is a fundamental step in ensuring the longevity of any outdoor electronic system. By prioritizing UV-resistant materials, proper cable management, and appropriate weather ratings, you avoid the most common causes of system failure. Take the time to verify the mount, the seal, and the ventilation needs before finalizing the installation. A disciplined approach to these details ensures that the sensors remain functional and protected, regardless of what the weather throws at the building.
