6 Best Power Supplies For Multi-Sensor Arrays To Trust
Power your multi-sensor arrays reliably with our top 6 tested power supplies. Read our expert guide to choose the best solution for your project needs today.
Reliable power distribution is the silent backbone of any sophisticated site-monitoring array. Whether managing moisture sensors on a commercial low-slope roof or tracking structural deflection in a metal frame, inconsistent power leads to faulty data and wasted site visits. Selecting the right supply is as critical as choosing the correct fastener for an uplift-rated metal panel. Trusting the wrong hardware turns a high-tech installation into a troubleshooting nightmare.
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Mean Well LRS-150: The Workhorse for Most Arrays
The LRS-150 is the gold standard for projects where budget meets reliability. It handles the fluctuating current demands of multi-sensor arrays without breaking a sweat, provided it stays within a climate-controlled enclosure.
Think of this as the framing nailer of power supplies; it is robust, ubiquitous, and gets the job done consistently. It lacks the bells and whistles of industrial-grade, sealed units, but it offers a high mean-time-between-failure rate for standard site-monitoring tasks.
Avoid using this unit in exposed environments or areas with high humidity, as the open-frame design is susceptible to corrosion. If the enclosure isn’t NEMA-rated for the site’s climate, moisture will eventually find the PCB. Stick to internal cabinet mounting to ensure a long service life.
Phoenix Contact QUINT4: For Critical DIN Rail Power
When a project demands 24/7 uptime for sensitive environmental sensors, the Phoenix Contact QUINT4 is the professional choice. It features advanced diagnostic LEDs and signal contacts that inform the controller exactly when the supply needs attention, long before it fails.
This unit excels in industrial settings where vibration or electrical noise from nearby heavy equipment could interfere with data logging. The ability to monitor output current allows for preventative maintenance, which is a massive advantage on large commercial projects where site access is difficult.
The cost is significantly higher than off-the-shelf alternatives, but the trade-off is superior protection against surges and brownouts. Do not spec this for simple, temporary installs, but prioritize it for permanent monitoring systems where service calls are expensive.
Mean Well HLG-120H: Best Weatherproof Option
The HLG-120H is the go-to choice when sensors are mounted in exposed locations, such as parapet walls or rooftop mechanical zones. Its IP67 rating ensures that rain, snow, and dust stay out of the electronics, eliminating the need for an expensive, separate NEMA enclosure.
This supply is essentially a sealed brick, making it perfect for direct mounting in harsh, exterior conditions. It is frequently used in high-moisture climates where internal cabinets might still succumb to condensation buildup over the winter months.
While it is remarkably durable, ensure the cabling transitions are also sealed properly with appropriate cord grips. A waterproof power supply is only as effective as the integrity of the connection points feeding into it.
Traco Power TPI 50A-J: Compact and Efficient
Space is a premium commodity in small, integrated control boxes. The Traco TPI 50A-J provides high-density power in an incredibly small footprint, allowing for cleaner, more organized wiring inside tight junction boxes.
Compact power supplies often sacrifice efficiency, but this unit maintains high power density without excessive thermal output. This is vital when the enclosure has little room for heat dissipation or airflow, preventing the supply from overheating its neighbors.
Because of the small size, these units are best suited for lower-wattage sensor arrays rather than heavy-duty control systems. Keep the load within 80% of the rated capacity to prevent thermal degradation over the long haul.
PULS UB10.241: For Uninterruptible Reliability
In the event of a power flicker, the PULS UB10.241 steps in to bridge the gap using an integrated battery buffer. It prevents the data loss that occurs when sensors reboot, which is a common problem in sites prone to unstable grid power.
This is not just a power supply; it is an insurance policy against lost data. The installation is straightforward, fitting onto standard DIN rails alongside the main power supply, making it an easy add-on for projects with unstable local power.
Ensure the battery module is kept in an environment that stays within the manufacturer’s recommended temperature range. Extreme cold and heat are the enemies of battery longevity, so avoid placing these in uninsulated exterior compartments during peak summer or winter.

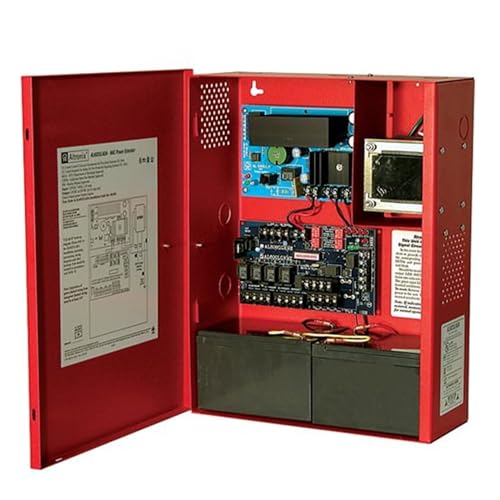

Altronix AL602ULADA: Multi-Voltage Made Simple
When a project requires mixed voltages—such as 12V for some sensors and 24V for others—the Altronix AL602ULADA simplifies the entire power management scheme. It offers built-in power distribution and individual protection for each output circuit.
This setup prevents a single faulty sensor from shorting out the entire array. If one circuit draws too much current, the specific fuse trips, leaving the rest of the monitoring system functional and online.
This level of granularity is essential for complex arrays where troubleshooting an entire bus of sensors would be impossible. It is slightly bulkier, but the convenience of having everything housed in one lockable steel enclosure is worth the space.
Sizing Your Power Supply: Calculating Total Load
Never size a power supply based on the nominal draw of the sensors alone. Always calculate the peak startup current, as many sensors draw a surge of power when they initiate communication or activate internal heaters.
A safe rule of thumb is to calculate the total current draw of all devices and then add a 20% safety margin. If the total load is 5 amps, spec a power supply capable of at least 6 amps to ensure the unit operates comfortably without running at its thermal limit.
Running a power supply at its absolute maximum capacity is the fastest way to shorten its lifespan. Consistent thermal stress leads to capacitor failure, which is the leading cause of power supply death on construction sites.
Planning for Voltage Drop on Long Cable Runs
Voltage drop is the hidden killer of sensor accuracy on large rooftops. As current travels over thin-gauge wire, the voltage at the end of the run decreases, often causing sensors to behave erratically or produce noisy data.
If the sensors are more than 50 feet from the power unit, calculate the resistance of the wire to ensure the voltage drop remains within the operating range of the devices. If the drop is too significant, either increase the gauge of the wire or move the power supply closer to the load.
Using thicker wire may seem like an added expense, but it pays for itself by preventing recurring data errors. Always check the sensor manufacturer’s minimum operating voltage; if it requires 24V and the drop leaves you with 22V, the system will fail.
Choosing the Right Enclosure for Your Power Unit
An enclosure does more than just protect the power supply from the elements; it manages heat and prevents unauthorized tampering. For exterior installations, always choose a NEMA 4X rated enclosure, which provides the best protection against water ingress and UV degradation.
Ensure the enclosure has proper cable glands (cord grips) installed at every entry point. If wires enter from the top, water will inevitably follow them inside, regardless of how tight the lid is sealed. Always route cables into the bottom or sides of the box.
For internal installations, ensure the box is vented if the power supply generates significant heat. A trapped heat bubble will fry even the highest-quality components over time, turning a safe enclosure into an oven.
AC vs. DC Power: What’s Right for Your Jobsite?
Most sensor arrays prefer stable DC power, which is why switching power supplies are so common. DC is less prone to interference from external electromagnetic fields and is safer for sensitive logic controllers and low-voltage communications.
AC power is typically reserved for long-distance runs or powering heavy heating elements, as it can be transmitted over thinner wire with less loss. However, converting back to DC at the sensor location introduces another point of failure.
Stick to a central DC power architecture whenever possible to minimize complexity. Use DC-to-DC converters if different voltage levels are needed, rather than trying to distribute high-voltage AC across a building roof.
Quality power infrastructure is the difference between a system that serves its purpose and one that serves as a burden. By selecting the right supply, sizing for peak loads, and managing voltage drops effectively, any monitoring array can achieve the reliability needed for professional-grade performance. Always prioritize environmental sealing and proper enclosure selection to ensure the hardware lasts as long as the roof itself.
