Protecting sensitive access control hardware is just as vital as ensuring a roof’s dry-in layer prevents water infiltration. A short in a mag-lock or a faulty card reader can cascade into a full system failure if the circuit protection isn’t spec’d correctly. Much like choosing the right underlayment for a high-slope versus a low-slope roof, selecting a breaker requires matching the device to the load and the environment. This guide breaks down the industry-standard options for keeping security systems running through power surges and equipment faults.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Altronix ACM8CB: Best for Multi-Door Systems

When managing a facility with eight or more doors, the Altronix ACM8CB is the standard for organized power distribution. It functions as a distribution module with individually resettable PTCs, which act as circuit breakers for low-voltage lines.

This unit allows for individual control of each output, meaning a single short-circuit on one gate reader doesn’t kill the entire building’s security grid. It acts like a well-installed roof cricket, diverting the “pressure” away from the main structure to prevent localized damage.

The biggest advantage here is the fault isolation capability. If one door lock draws excessive current due to a binding strike or a pinched wire, the specific channel trips while the remaining outputs stay energized.

Eaton FAZ-NA-C1: Best DIN Rail Breaker Overall

For contractors who prefer DIN rail mounting, the Eaton FAZ-NA-C1 offers industrial-grade reliability. These miniature circuit breakers (MCBs) are designed to handle the inductive spikes common with electromagnetic locks and electric strikes.

These breakers excel because they are “branch rated,” which provides a higher level of protection than standard glass fuses. If the application involves high-traffic commercial zones where reliability is non-negotiable, the FAZ-NA series is the go-to choice.

Ensure the thermal-magnetic trip curve is appropriate for the inductive load. Much like checking the wind uplift rating on a metal roof panel, miscalculating the trip curve leads to nuisance tripping every time a heavy door releases.

Siemens 5SY Series: Most Reliable Single Circuit

Siemens 5SY series breakers are the heavy hitters when a single, critical circuit needs absolute protection. These units are built with high-quality arc chutes that suppress the plasma generated during a fault, preventing the internal contacts from welding shut.

They are particularly effective in environments where power quality might be shaky or where the load is constant. Relying on these is similar to using premium-grade, high-temp underlayment on a South-facing slope; it’s an investment in longevity that prevents the “callback” headache later.

These are best reserved for centralized control panels or primary power feeds. Don’t waste the budget on minor sensors, but definitely use them for the main brain of the access control system.

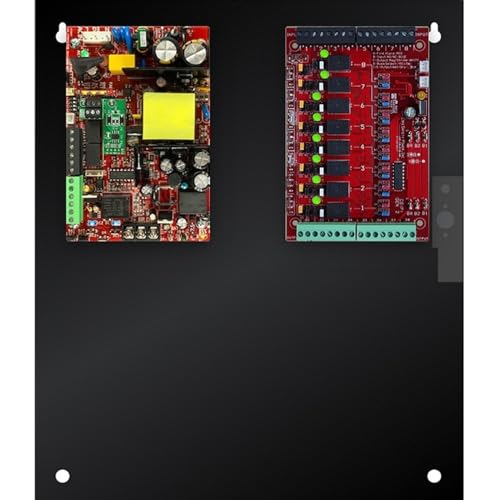

LifeSafety Power FPO: Best All-In-One Solution

The LifeSafety Power FPO platform is essentially the high-performance integrated system of the access control world. It combines power supply, battery backup, and individual circuit protection into a modular, plug-and-play chassis.

Using an FPO is like specifying a complete, manufacturer-warranted roofing system rather than mixing and matching flashing, shingles, and felt from different suppliers. It ensures that the power supply’s current-limiting characteristics perfectly match the distribution board’s protection.

This reduces troubleshooting time significantly. When the system reports a fault, the diagnostic LEDs tell exactly which circuit is down, saving hours of chasing continuity on a ladder or in a cable tray.

Securitron BPS Series: Pro Choice for Security

Securitron is a name synonymous with locking hardware, and their BPS Power Supplies are engineered with the same focus on durability. These units are built to withstand the physical and electrical abuse typical of high-security door environments.

They are the “architectural shingle” of the power world: robust, proven, and built to handle harsh conditions. The output protection is specifically tuned for the surge requirements of mag-locks and solenoids.

The major benefit is the synergy with other locking hardware. Since the same engineers often design the locks and the power supplies, the compatibility is virtually guaranteed.

Bussmann 165 Series: Best Value Panel-Mount Pick

When the project budget is tight but the installation must meet code, the Bussmann 165 series serves as a reliable panel-mount breaker. They are simple, mechanical, and highly effective at interrupting currents in low-voltage DC applications.

Think of these as the reliable 3-tab shingle of circuit protection—they might lack the advanced features of high-end modules, but they get the job done reliably every time. They are easily accessible and simple to reset, which is a major plus for facilities maintenance crews.

Keep a handful in the job box for quick field replacements. Their compact footprint allows for dense mounting in tight cabinets, which is a common requirement in retrofit jobs.

Weidmuller ECBs: Best for Selective Protection

Weidmuller Electronic Circuit Breakers (ECBs) are the modern choice for precision. Unlike traditional thermal-magnetic breakers that can be slow to react to sensitive electronics, these provide rapid, intelligent load shedding.

They act with the precision of a laser-guided fastener system. If the current exceeds the threshold by even a small margin for a specific duration, the ECB trips instantly, shielding the delicate semiconductor components in modern access controllers.

The added cost is justified by the reduction in replacement equipment costs. If you are protecting a high-value biometric scanner or an IP-based controller, standard fuses are rarely sufficient.

Choosing Your Amp Rating: Don’t Guess The Load

The most common mistake in system design is guessing the amperage based on a hunch. Always calculate the total inrush current of all locks connected to the circuit, not just the steady-state holding current.

• Continuous Load: The power drawn when the door is held shut.
• Peak Load: The spike during the initial activation of the lock.
• Derating: Always leave a 20% margin above your peak calculation to account for ambient heat and aging components.

Ignoring these metrics is like ignoring the weight of a snow load on a low-slope roof. You might get away with it for a season, but the system will eventually collapse under the stress.

Fuses vs. Breakers for Access Control Systems

Fuses are single-use devices that are often replaced with the wrong size by well-meaning but ill-informed maintenance staff. A 10-amp fuse replacing a 2-amp fuse is a fire waiting to happen.

Breakers, conversely, provide a reset switch that makes troubleshooting cleaner and safer. While a fuse is cheaper initially, the labor costs of frequent trips and the risk of improper replacement make breakers the superior long-term choice.

For systems that require high reliability, move toward resettable circuit breakers. It’s the difference between a roof repair that lasts five years versus one that lasts twenty.

NEC Code & Low-Voltage Wiring Best Practices

Even though access control is low-voltage, the National Electrical Code (NEC) still applies regarding wire sizing, overcurrent protection, and fire-stop penetration. Always use cable rated for the specific environment, such as plenum-rated (CMP) cable for ceiling air-handling spaces.

Proper bonding and grounding are just as important as the circuit breaker itself. If the system isn’t grounded back to the main building electrode, transient surges can bypass your breakers and fry your controllers anyway.

Treat the electrical pathway with the same respect as a roof drainage system; if there’s a bottleneck or a leak in the integrity, the whole system fails when the pressure is highest.

Choosing the right circuit protection is the final step in ensuring that an access control system remains an asset rather than a liability. By prioritizing fault isolation and correct load calculations, you ensure the system remains operational for the long haul. Keep these guidelines in mind during the design phase to avoid the costly downtime that comes with inadequate protection.
