7 Best Linear Bearings For High Load Precision Motion

Precision motion in heavy-duty machinery relies on the same principle as a perfectly flashed valley: if the foundation is off by a fraction, the entire system eventually fails. Linear bearings serve as the load-bearing tracks for automated systems, CNC routers, and heavy-duty gantries. Choosing the wrong rail is like using under-spec roofing nails on a high-wind site—it might hold for a week, but it won’t survive the first real stress test. Reliability here is measured in microns and millions of cycles, not just price tags.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

HIWIN HG Series: Best Overall for Most Projects

The HIWIN HG series is the standard-issue workhorse of the industry for a reason. These rails offer a predictable balance of load capacity and stiffness that fits 90% of structural automation projects.

Think of these like high-quality asphalt shingles with a solid wind-uplift rating; they aren’t the exotic, premium-priced option, but they get the job done reliably every time. The four-row recirculating ball design provides equal load ratings in all four directions.

This omnidirectional capability simplifies the design phase significantly. If the application involves side-loading or variable forces, the HG series handles the distribution without requiring complex custom mounting hardware.

THK HSR Series: The Pro’s Choice for Precision

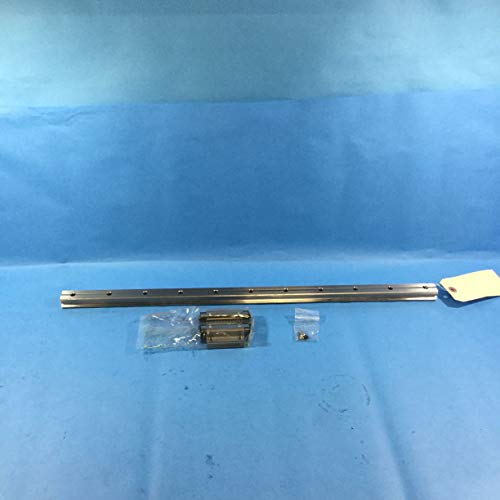

THK effectively invented the linear motion guide, and the HSR series remains the gold standard for high-precision environments. When the project demands absolute repeatability—like a custom metal-folding jig or a precision laser cutter—this is the professional’s preference.

The internal geometry of the HSR series allows for a degree of “self-alignment.” This is crucial when mounting to a base that isn’t perfectly machine-flat, much like how a specialized drainage mat compensates for slight imperfections in roof decking.

While the price point is higher, the ROI comes through in reduced downtime and lower maintenance frequency. For critical production lines where a shutdown costs thousands per hour, skimping on the rail is a false economy.

Bosch Rexroth Ball Rail: For Heavy Automation

Bosch Rexroth is the go-to for industrial-grade automation that needs to run 24/7 without a hiccup. These rails are engineered for extreme durability under continuous, high-speed movement.

In construction terms, this is the heavy-duty structural steel of the linear motion world. They excel in environments where vibration or high-impact loads are constant.

The real advantage here lies in the modularity of the system. Whether swapping out blocks or extending the rail length, the system is designed for field-serviceability. It mirrors the convenience of modular metal roof panel systems that allow for individual section replacement without tearing off the entire roof.

Thomson 500 Series: Top Pick for Durability

Thomson is a name synonymous with long-term survival in harsh environments. The 500 Series is designed specifically to offer high performance without the need for constant, pampered maintenance.

If the workspace is prone to dust, debris, or fluctuating temperatures, these bearings are built to keep moving. They feature robust sealing technology that keeps the rolling elements clean, similar to how heavy-duty pipe boots prevent water infiltration around roof penetrations.

Because they are forgiving of minor alignment errors, they are a solid choice for shop-built frames where welding distortion might be a factor. They offer a “set it and forget it” reliability that many DIYers and smaller shops crave.

NSK LH/LS Series: Smoothest Motion Under Load

The NSK LH/LS series is engineered for applications where silence and smooth movement are the priority. The ball circulation path is designed to minimize vibration, making it ideal for precision measuring equipment or high-end aesthetic gantries.

Quiet movement is usually a sign of high manufacturing tolerance and excellent surface finish. When the motion is smooth, the bearing experiences less friction-induced heat, which significantly extends the life of the lubricant.

Use these when the project requires a “premium” feel. It is the equivalent of moving from standard roofing underlayment to a high-end, self-adhered membrane that provides a superior, seamless barrier.

SKF LLT Profile Rail: A Solid Industrial Pick

SKF is widely recognized for superior metallurgy and high-grade steel processing. The LLT profile rail series benefits from this expertise, resulting in rails that resist wear over immense cycle counts.

These are exceptionally stable, providing high rigidity under heavy loads. Because the rails are interchangeable between the carriage and the rail itself, it simplifies the supply chain if a single component needs replacing years down the road.

This is a professional-grade component that bridges the gap between mid-range hobbyist equipment and full-scale factory automation. It provides consistent performance regardless of the specific task load.

IKO LWL Series: Best for Compact Applications

When the design footprint is tight, the IKO LWL series provides a miniaturized solution that doesn’t compromise on precision. These are essential for smaller precision instruments or tight mechanical linkages.

Designing a machine with limited space is similar to trying to flash a roof with minimal clearance around chimneys or dormers; there is zero room for error. The LWL series is engineered specifically to function flawlessly in these confined, low-profile layouts.

Even with their small stature, they maintain impressive load capacities for their size class. They are the ideal component for projects where bulky rails would simply not fit the aesthetic or mechanical design.

Choosing Your Bearing: Load Speed and Life

Selecting the right bearing requires an honest assessment of the operating environment. Always calculate the Dynamic Load Rating based on the maximum weight the system will move, not just the static weight.

• Speed: High-speed motion increases heat and wear.
• Precision: If the application requires sub-millimeter accuracy, choose high-grade ground rails over rolled rails.
• Environment: If the shop is dusty, ensure the bearing comes with advanced seals and scrapers.

Do not overlook the L10 life expectancy—a standard calculation of how long the bearings will run before signs of material fatigue appear. A cheaper bearing might look identical on the spec sheet, but its metallurgical life will be a fraction of a premium model.

Mounting Rails: Getting Perfect Alignment

Even the best bearing in the world will fail prematurely if it is bolted to a twisted frame. The rails must be parallel, and the base surface must be perfectly flat or shimmed to tolerance.

Use a precision level and, if possible, a dial indicator to check for parallelism along the entire length of the travel. This is the mechanical equivalent of snapping chalk lines; if the reference point is wrong, the entire assembly will be crooked.

Tighten mounting bolts in a cross-pattern to avoid inducing stress into the rail during installation. Always check the manufacturer’s torque specs, as over-tightening can physically deform the rail channel and cause binding.

Bearing Maintenance: Lubrication Is Everything

Lubrication is the lifeblood of a linear bearing, yet it is the most commonly neglected maintenance item. Most carriages come with grease nipples; use a high-quality lithium-based grease designed for rolling-element bearings.

Establish a regular maintenance schedule based on the number of duty cycles. Think of it like inspecting your roof flashing and gutters every season; proactive maintenance prevents a catastrophic failure that could cost the price of the entire system.

Keep the rails wiped down and free of grit. Even microscopic metal shavings or wood dust acting as an abrasive will score the raceways, leading to “chatter” and eventual total bearing failure.
