6 Best Digital Pressure Transducers for Automated Systems

Precision sensors are the backbone of modern automated systems, much like the structural integrity of a roof depends on the unseen fasteners beneath the shingles. Just as a roof needs to handle varying wind loads and thermal expansion, these transducers must manage fluctuating pressures without drifting or failing. Choosing the wrong unit for a HVAC system or a high-pressure line is as costly as selecting the wrong underlayment for a coastal climate. Getting the specifications right the first time prevents the kind of rework that eats into profits and ruins reputations.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Setra Model AXD: Top Pick for HVAC Systems

The Setra Model AXD is a standout for building automation where reliability is the primary concern. When managing airflow in large commercial HVAC systems, you need a sensor that holds its calibration even when the temperature swings during seasonal shifts.

Its design focuses on long-term stability and high accuracy in environments where air pressure fluctuates constantly. For contractors balancing large-scale ventilation projects, this unit minimizes the need for follow-up calibration trips, which is a major advantage in maintaining a maintenance-free installation.

The bottom line is that the AXD is built to be installed and forgotten. If you are dealing with high-end commercial HVAC, do not gamble on budget sensors that require quarterly recalibration.

WIKA A-10: A Tough All-Purpose Transducer

The WIKA A-10 is the workhorse of the transducer world, fitting into almost any general industrial application. Think of this as the reliable nail gun you keep on the truck; it may not be flashy, but it works reliably on every job site.

It handles high vibration and shock loads with ease, which is critical if the sensor is mounted on equipment with moving motors or pumps. The rugged stainless steel housing protects the internal circuitry from the moisture and dust often found in mechanical rooms or manufacturing floors.

When you need a solid, no-nonsense sensor for a standard pressure monitoring job, the A-10 provides excellent value. Its broad pressure range options make it a versatile choice for inventory stocking.

Omega PX309 Series: Most Versatile Option

The Omega PX309 series offers a modular approach that shines when project requirements change mid-stream. This versatility is vital for contractors who take on diverse jobs, from custom residential HVAC builds to industrial plumbing systems.

This series features a wide range of output signals and pressure ranges that can be tailored to specific system controllers. Having that flexibility allows the equipment to integrate seamlessly with existing PLC (Programmable Logic Controller) systems without needing complex signal conversion hardware.

While the customization options are extensive, be sure to confirm your range requirements before ordering. Buying the right range the first time is essential, as these units are built to be precise at their designated scale.

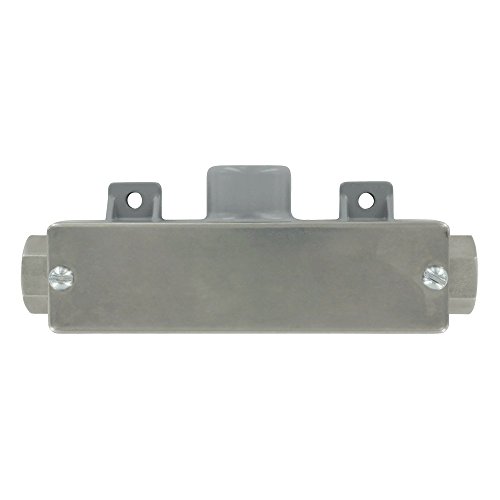

Dwyer Series 629C: For Wet Differential Pressure

When the task involves measuring differential pressure in wet environments, such as chilled water loops or glycol systems, the Dwyer 629C is the go-to component. It is specifically designed to handle liquids rather than just dry air.

The stainless steel construction prevents the internal corrosion that inevitably kills lesser sensors when exposed to water-based fluids over time. Its compact design also allows for easier installation in tight manifolds where space is at a premium.

Always ensure the media compatibility of your sensor matches the fluid in your system. Installing a dry-air sensor in a wet-loop application is a recipe for an immediate, expensive failure.

Gems 3100 Series: Best for Compact Spaces

The Gems 3100 Series is designed for OEMs and installers who are constantly fighting for real estate inside crowded control panels. These transducers pack professional-grade accuracy into a footprint that is significantly smaller than the average industrial sensor.

Despite their size, they do not compromise on durability. The all-welded stainless steel design ensures that these sensors can withstand harsh environments despite their compact dimensions, making them ideal for automotive or specialized hydraulic applications.

If you are retrofitting a tight utility cabinet or building a high-density automated manifold, the Gems 3100 is the clear winner. It removes the stress of trying to shoehorn a bulky component into a cramped space.

Sensata 2CP5: High-Volume OEM Choice

The Sensata 2CP5 is the standard for high-volume automated systems where cost-efficiency and repeatability are the main drivers. Manufacturers prefer this model because it maintains high performance standards across thousands of units.

It is built for resilience in demanding environments, including exposure to aggressive chemicals or high-pressure spikes. This level of durability means fewer replacements over the life of the system, which is vital for maintaining uptime in a production facility.

While this is often sold to OEM manufacturers, it remains a fantastic choice for large-scale facility projects. Reliability is always the cheapest option in the long run.

Choosing the Right Pressure Range for Your Job

Selecting the correct pressure range is the most common mistake made during the specification phase. A sensor that is oversized for the system will suffer from poor resolution, essentially losing its accuracy at lower pressures.

• Operating Pressure: Always ensure the expected operating pressure sits in the middle 50% of the sensor’s range.
• Proof Pressure: Check the proof pressure rating to ensure it can handle system spikes without suffering permanent damage.
• Over-range Limits: Understand the difference between the operating range and the maximum limit the sensor can handle before failure.

Ignoring these parameters is akin to using a sledgehammer to drive a finish nail; you will lose all nuance and control. Always verify the maximum system pressure before finalizing your order.

Transducer Output Signals: 4-20mA vs. Voltage

The choice between 4-20mA and voltage signals often comes down to the distance between the sensor and the controller. Current-based signals (4-20mA) are far more resistant to electromagnetic interference and signal degradation over long wire runs.

Voltage signals (0-5V or 0-10V) are perfectly fine for short, local connections inside a single cabinet. However, if the signal must travel across a building or through a noisy electrical environment, choose 4-20mA to avoid ghost readings.

Never assume all controllers are compatible with both. Check your PLC input specs early, or you will find yourself needing signal conditioners that add cost and points of failure.

Gauge Absolute or Differential Pressure?

Understanding your measurement baseline is critical to getting meaningful data. Gauge pressure measures relative to atmospheric pressure, which is standard for most water and air systems where the “zero” moves with the weather.

Absolute pressure measures against a perfect vacuum, which is essential for specialized applications like high-altitude manufacturing or sealed chemical processes. Differential pressure measures the difference between two separate ports, which is the standard requirement for checking filter health or flow rates across a pump.

Confusing these can lead to readings that appear accurate but are fundamentally wrong for the control system. Determine what the system is actually reacting to before finalizing the sensor type.

Installation Tips: Avoiding Common Failures

Failure is rarely caused by the transducer itself; it is almost always an installation error. Ensure you use proper pipe sealant that is compatible with your process media to prevent leaks at the threads.

Do not use the sensor body to torque it into the fitting. Always use a wrench on the dedicated hex nut at the base, otherwise, you risk twisting the internal wiring or cracking the seal between the body and the connector.

Lastly, protect the electrical connection. If the unit is installed outdoors or in a wash-down area, use a sealed conduit or a waterproof connector to prevent moisture from wicking up the cable into the sensor.

The effectiveness of any automated system rests on the quality of the data it receives. By selecting the right transducer for the application and installing it with care, you eliminate the guesswork that plagues poorly designed projects. Stick to these reliable choices to keep your systems running precisely and profitably.
