6 Best Relay Modules For Lighting Automation Pros Trust

Lighting automation is much like selecting the right fastener for a metal panel roof; choose the wrong one, and the entire system compromises under pressure. High-quality relay modules serve as the workhorses of a smart home, providing the physical bridge between low-voltage digital signals and high-voltage electrical circuits. Reliability in these components prevents the kind of “callback” scenarios that keep contractors up at night. Professional-grade hardware ensures that when a command is issued, the lights actually respond, regardless of network traffic or power fluctuations.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Lutron RMJ-5R-DV-B: Pro-Grade Reliability

The Lutron RMJ-5R-DV-B is the industry standard for commercial and high-end residential lighting control. It utilizes the Clear Connect RF technology, which operates on a proprietary frequency that avoids the congested 2.4GHz bands common in home Wi-Fi.

This module is designed for heavy-duty switching, handling high-inrush currents that often weld the contacts of lesser relays shut. When planning a project with large LED arrays or heavy magnetic ballasts, this unit provides the necessary headroom to avoid premature failure.

Reliability comes at a premium, but the investment pays off in the elimination of intermittent switching issues. For projects where the client expects a “set it and forget it” experience, this is the gold standard.

Shelly Plus 1PM: The Smart & Compact Choice

The Shelly Plus 1PM stands out because of its incredibly small footprint, allowing it to fit into standard junction boxes alongside existing wire nuts. Size matters when working in legacy boxes that are already cramped with multiple neutral wires and grounds.

Beyond the physical dimensions, the integrated power metering provides real-time data on energy consumption. This diagnostic capability is invaluable for identifying failing drivers or checking if a circuit is nearing its rated amperage capacity.

It remains a top choice for both contractors and informed DIYers because it functions perfectly with or without a cloud connection. Reliability is bolstered by an open API that allows for local control, keeping the system functional even when the internet goes down.

Zooz ZEN51 Dry Contact Relay: Ultimate Versatility

Dry contact relays are essential when the lighting load needs to be isolated from the control voltage. The Zooz ZEN51 is a Z-Wave device that acts as a simple switch, allowing it to control low-voltage landscape lighting or even trigger traditional gate openers.

Using a dry contact configuration prevents damage to sensitive equipment by ensuring that the relay only closes the circuit without carrying the load’s power through the internal circuitry. It offers a cleaner installation for specialized systems that don’t share a common power source with the controller.

When working on complex multi-zone outdoor lighting plans, this versatility is a massive advantage. Always ensure the load requirements fall within the relay’s maximum voltage and amperage limits to maintain the integrity of the contact points.

Sonoff ZBMINI-L2: Best No-Neutral Solution

Older residential properties often lack a neutral wire in the switch box, making most smart switches impossible to install without significant electrical rewiring. The Sonoff ZBMINI-L2 bypasses this common construction hurdle by operating exclusively on the live wire.

This is a Zigbee-based device, meaning it expands the mesh network as it functions, improving communication between other smart devices in the home. It is small enough to tuck behind a wall switch, providing a clean, aesthetic finish without modifying the wall plates.

Keep in mind that no-neutral devices require a minimum load to function correctly. If the lighting circuit uses very low-wattage LEDs, a bypass capacitor may be required to prevent flickering or inconsistent operation.

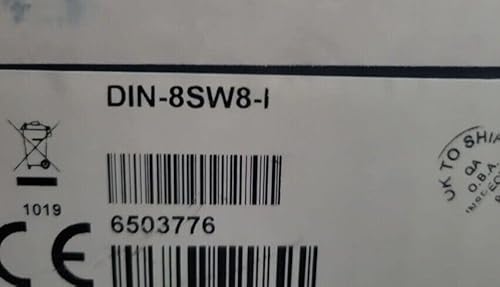

Crestron DIN-8SW8-I: For Complex Pro Installs

When a project moves from simple room control to whole-home automation, DIN rail mounting becomes the preferred method for management. The Crestron DIN-8SW8-I houses eight independent relays in a single, organized unit meant for a centralized electrical panel.

Centralization allows for easier troubleshooting and future-proofing, as all electrical connections occur within the panel rather than scattered throughout the building’s walls. This is the professional choice for new construction where the electrical rough-in can be mapped to a central hub from the start.

While this system requires a professional integrator to program and commission, the level of control over lighting scenes and integration is unparalleled. It is a robust solution that mirrors the permanence of a well-installed architectural roof system.

Fibaro Single Switch 2: A Compact Z-Wave Powerhouse

The Fibaro Single Switch 2 is favored for its Z-Wave Plus compatibility and its ability to handle a variety of load types, including resistive and inductive loads. Its diminutive size makes it one of the most flexible options for retrofitting existing, tight-clearance switch boxes.

This module features active power measurement and an overload protection mechanism, which acts as an internal fuse. This safety feature is critical when dealing with older, potentially compromised wiring or when retrofitting legacy fixtures that might draw unexpected spikes of current.

It is particularly effective in Z-Wave networks because it acts as a signal repeater, strengthening the mesh. When used in a multi-story home, these modules help maintain a robust signal path across floors and through dense framing materials.

Wi-Fi vs. Z-Wave vs. Zigbee: Pick Your Protocol

Selecting a protocol is as fundamental as choosing between asphalt shingles and metal standing seam; the environment dictates the choice. Wi-Fi relays are easy to deploy but can quickly saturate a router if too many are added, leading to performance drops.

Z-Wave and Zigbee are mesh protocols, meaning each device acts as a signal repeater to reach further than a single point-to-point connection. Z-Wave operates on the 900MHz band, which travels through walls better than the 2.4GHz signals used by Wi-Fi and many Zigbee devices.

For a reliable system, avoid overcrowding the Wi-Fi spectrum. Opt for a dedicated Z-Wave or Zigbee hub to keep the lighting traffic off the primary data network.

Matching Relays to Your Lighting Load Type

Not all relays handle all loads equally, particularly when dealing with high-inrush LED drivers. An LED driver can pull a surge of current at startup that is ten times its rated draw, which can weld the contacts on an undersized relay.

Always calculate the inrush current, not just the steady-state wattage. If the relay is rated for 10 amps but the LEDs have a high-inrush characteristic, derating the relay to 50% of its capacity is a standard safety measure.

Using a relay with a built-in “soft-start” feature can mitigate this issue by limiting the initial current flow. Failure to match the load type often leads to “sticky” relays that refuse to turn off.

In-Wall vs. DIN Rail: Where to Install Your Relay

In-wall installation is the standard for renovations where opening walls is not feasible. It keeps the relay close to the fixture or switch but requires patience to fit within existing gang boxes.

DIN rail installation is superior for new builds or major renovations where a central utility room is available. Centralizing relays in a panel makes maintenance straightforward and ensures the heat generated by the relays is properly managed.

Consider the heat dissipation requirements for enclosed spaces. Relays generate heat; if installing in a box, ensure the load does not exceed 80% of the relay’s capacity to prevent thermal buildup.

Integrating Relays with Your Smart Home Hub

The relay is only as useful as the intelligence behind it. A robust smart home hub acts as the brain, allowing for complex logic that goes beyond simple “on-off” commands.

Whether using a platform like Home Assistant, Hubitat, or a professional system like Crestron, ensure the communication protocol matches the hub. Integration allows for lighting scenes—linking the foyer, kitchen, and exterior lights to a single event like “Welcome Home.”

Always prioritize local control over cloud-based control. A system that continues to operate during an internet outage is a hallmark of a professional-grade installation.

Smart lighting automation, much like a well-executed roofing project, relies on the quality of individual components and the integrity of the installation. By prioritizing the right protocols, matching relay loads to actual demands, and choosing the right form factor, the resulting system provides years of reliable service. Focus on the infrastructure first, and the convenience of a modern smart home will follow with ease.
