6 Best Cable Glands for Ingress Protection in Wet Environments

Moisture infiltration is the silent killer of electrical systems in exterior construction, especially when cables penetrate through roof lines or exterior wall assemblies. Standard fasteners might hold a conduit in place, but they rarely prevent water from wicking along the cable jacket into sensitive enclosures. Selecting the right cable gland is not just a code requirement; it is the primary line of defense against short circuits and long-term corrosion. These six options represent the gold standard for maintaining a watertight seal in demanding, high-exposure environments.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Heyco-Tite Cordgrips: The Go-To Workhorse

Heyco-Tite cordgrips are the industry standard for general-purpose outdoor enclosures where budget and reliability must align. These nylon glands provide a solid grip that prevents cable pull-out while maintaining a liquid-tight seal against the elements.

They excel in residential solar installations or HVAC conduit entries where the cable diameter is relatively static. The design features a multi-thread system that makes tightening by hand—or with a pair of channel locks—straightforward, even when working on a ladder or in a cramped attic space.

However, avoid using these in high-vibration zones where the plastic casing might eventually fatigue or embrittle under extreme UV exposure. For standard, protected exterior walls, the Heyco-Tite is the most sensible, cost-effective choice.

Lapp SKINTOP MS-M: Top-Tier Strain Relief

When a cable needs to withstand significant tension or mechanical stress, the Lapp SKINTOP MS-M is the professional’s choice. This nickel-plated brass gland offers superior mechanical strength compared to plastic alternatives.

The specialized design allows for a large variable clamping range, meaning it can accommodate slight discrepancies in cable jacket thickness. This flexibility is critical when working with different cable manufacturers who might spec their jacket insulation slightly differently.

It is highly recommended for commercial projects where the cable runs are long and susceptible to wind-load stress. When the integrity of the electrical connection relies on the cable remaining perfectly seated, the SKINTOP is worth the premium.

Sealcon Nickel-Plated: Built for Durability

Sealcon stands out for its high-performance O-ring design that remains flexible across a wide range of temperatures. Nickel-plated brass construction ensures that these glands will not corrode in coastal environments where salt spray is a constant threat.

These glands are specifically engineered to pass stringent IP68/69K testing, making them ideal for areas that experience heavy wash-downs or high-pressure storm runoff. If the job involves a flat roof with poor drainage, the Sealcon provides the peace of mind that moisture won’t find a path inside.

While they carry a higher price tag than nylon counterparts, the longevity provided by the brass housing pays for itself by eliminating repeat site visits to address leaking penetrations. Invest in Sealcon when the cost of a failed seal far outweighs the initial material expense.

Altech A-Series: Best Value Polyamide Gland

The Altech A-Series is a reliable workhorse for projects where non-conductive plastic is required to avoid ground-fault risks. These polyamide glands are lightweight, impact-resistant, and perfect for standard residential outdoor lighting circuits.

Installation is quick, requiring only basic tools, which speeds up the workflow on jobs with dozens of penetration points. The threads are crisp and engage smoothly with plastic junction boxes, reducing the risk of cross-threading and subsequent leaks.

Keep in mind that these are best suited for static applications rather than dynamic, high-movement cabling runs. For a standard deck lighting or security camera install, the Altech A-Series is a proven, no-nonsense material.

PMA PMAFIX System: Ultimate IP69K Protection

PMAFIX is the heavy hitter for extreme environments where water is expected to hit the equipment with force. This system is designed primarily for use with conduit, offering an ingress protection level that is nearly impossible to breach.

The locking mechanism provides a high-security connection that won’t vibrate loose, even in high-wind zones or on industrial roof structures. It creates a seamless transition between the protective conduit and the enclosure, ensuring there are no gaps for water to enter.

Use this system exclusively for mission-critical infrastructure or high-end commercial work. It is overkill for a simple junction box, but it is the baseline requirement for systems exposed to high-pressure cleaning or constant wind-driven rain.

Hummel HSK-M: Premium German Engineering

Hummel glands represent the pinnacle of precision machining in the cable gland market. The HSK-M series features a specialized clamping claw that distributes pressure evenly around the cable jacket, preventing internal damage to conductors.

The internal seal is crafted from high-grade elastomers that retain their memory even after years of extreme temperature fluctuations. This prevents the “slow leak” phenomenon often seen with lower-quality gaskets that lose their seal as the building materials settle.

When the project specifications demand zero failure over a decade or more, choose Hummel. The difference in engineering is evident the moment the nut is tightened; the movement is smooth, firm, and consistently secure.

What Do Cable Gland IP Ratings Mean for You?

An IP rating tells you exactly how well a gland is shielded against solid objects and liquids. For outdoor use, pay attention to the second digit: a 6 means it is dust-tight, while a 7 or 8 indicates the ability to withstand temporary or continuous submersion.

A rating of IP69K is the gold standard for outdoor construction, as it confirms the gland can withstand high-pressure, high-temperature water jets. Do not settle for anything less than IP67 or IP68 for any penetration that sits on a roof surface or exposed exterior wall.

Always cross-reference the manufacturer’s technical data sheet against your local climate’s annual rainfall data. If the area is prone to heavy, wind-blown storms, assume the equipment will be subject to pressure rather than just falling rain.

Metal vs. Plastic Glands: Which Should You Use?

Plastic (polyamide) glands are excellent for non-corrosive environments and scenarios where conductivity must be avoided, such as plastic-enclosure installs. They are lightweight, cost-effective, and won’t rust, though they are more prone to UV degradation over long periods.

Metal (nickel-plated brass or stainless steel) glands provide superior structural integrity, better strain relief, and vastly improved durability in harsh environments. They are mandatory for heavy-gauge cables or locations where impact damage is a risk.

The decision often comes down to the housing material: avoid galvanic corrosion by matching metal glands to metal enclosures. If the junction box is stainless steel, use stainless steel glands to prevent a chemical reaction between dissimilar metals.

How to Properly Install a Watertight Gland

Tighten the gland securely, but do not overtighten, as this can crush the cable jacket or strip the plastic threads. Use a properly sized wrench on the flats of the gland rather than pliers to ensure even torque and prevent marring the surface.

Always verify that the cable diameter falls within the specific range provided by the manufacturer. If the cable is too small for the gland’s grip, the internal seal will not compress fully, leaving a microscopic channel for water to enter the enclosure.

Finally, ensure the junction box is mounted in a way that allows the cable to enter from the bottom or side, if possible. Gravity is the best secondary defense against water ingress; gravity-fed drainage ensures that any water that does hit the cable will drip off before reaching the gland entry point.

NPT vs. Metric Threads: Getting the Right Fit

NPT (National Pipe Taper) threads are the standard for most North American electrical conduit and boxes. These threads create a mechanical seal through a tapered interference fit, which can be further secured with thread sealant if needed.

Metric threads (M-series) use a straight thread and require a flat gasket or O-ring to create a watertight seal. It is a common mistake to assume a metric gland will thread into an NPT hole; doing so will damage the box and create an immediate leak point.

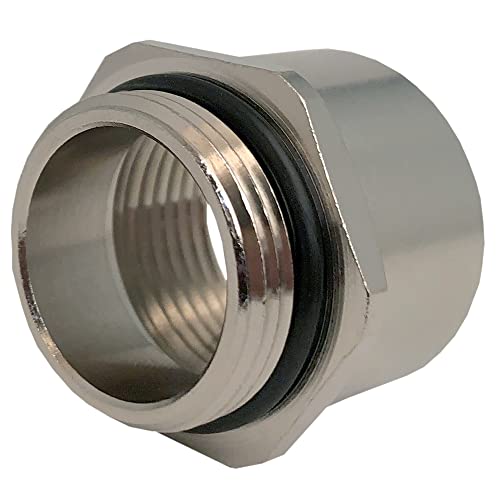

Always confirm the knockout size and thread type of your enclosure before purchasing the glands. If an adapter is required to convert thread types, ensure it is rated for the same environmental conditions as the rest of the cable entry system.

Choosing the right cable gland is a small detail that holds a massive responsibility in maintaining a dry, functional electrical system. Whether you prioritize the cost-efficiency of Heyco-Tite or the industrial-grade performance of Hummel, your decision should always be based on the specific mechanical and environmental demands of the roof or wall assembly. Avoid the temptation to swap in unrated hardware, as the cost of a single shorted circuit far outweighs the price of a high-quality, weather-rated gland. Secure the penetration correctly, verify the seal, and the install will stand the test of time.
