6 Best Anti-Siphon Valves for Effluent Backflow Prevention

Backflow prevention is the silent guardian of any water system, ensuring that contaminated effluent doesn’t find its way back into the potable supply. Choosing the wrong valve isn’t just a minor oversight; it can lead to health hazards and significant code violations during inspections. Understanding the mechanics behind anti-siphon systems is crucial for maintaining both residential irrigation and commercial water distribution lines. Getting the right hardware installed correctly the first time avoids the headache of retrofitting or dealing with a failed plumbing inspection.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Watts 288A Vacuum Breaker: The Go-To Standard

The Watts 288A is a staple in the plumbing trade, recognized for its reliable performance in atmospheric vacuum breaking. It functions by allowing air into the pipe when pressure drops, effectively breaking a siphon before contaminated water can be pulled back.

Reliability defines this model, making it a common sight on commercial projects where consistency is non-negotiable. Its cast copper silicon alloy body stands up to years of service in harsh environments, provided the system is set up for occasional discharge.

Keep in mind that this valve is designed for non-continuous pressure applications. Installing it on a line that remains under pressure for more than 12 hours will lead to premature failure of the internal poppet.

Febco 765 PVB: For Continuous Pressure Systems

When a project requires the valve to remain under constant line pressure, the Pressure Vacuum Breaker (PVB) is the mandatory upgrade. The Febco 765 is the industry benchmark for these setups, featuring a rugged design that handles the stress of constant operation without leaking.

The internal spring-loaded check valve provides a positive seal, ensuring that even under consistent demand, the system remains protected. It is particularly popular in irrigation systems where the water line remains active throughout the peak watering season.

Maintenance is straightforward, which is a major plus for property managers or homeowners handling their own upkeep. The bonnet and poppet assembly are easily accessible for cleaning or replacing internal seals, saving hours on service calls.

Zurn Wilkins 720A: Pro-Grade Pressure Breaker

The Zurn Wilkins 720A is a heavy-hitter often seen on commercial irrigation headers and industrial water lines. Its build quality is superior to standard residential units, utilizing a durable bronze body that resists corrosion in aggressive soil or water conditions.

Contractors favor this model for its low-pressure loss, which is critical when dealing with large-scale irrigation zones. If the system design is already pushing the limits of available water pressure, a high-loss valve can result in uneven spray patterns or inefficient sprinkler output.

The 720A incorporates an internal relief mechanism that is both robust and predictable. It is a set-it-and-forget-it piece of equipment, provided it stays clear of freezing temperatures.

Rain Bird DAS/ASVF: Pro-Grade Irrigation Choice

Rain Bird has built its reputation on the specific needs of the landscape industry, and the DAS/ASVF series reflects that specialized focus. These valves are optimized for direct integration into irrigation zones where an anti-siphon mechanism is built directly into the valve assembly.

By combining the solenoid valve and the anti-siphon component, the unit reduces the number of connections needed in the manifold box. Fewer connections mean fewer potential leak points, which is a massive win when burying a manifold underground.

It is vital to mount these valves at least 6-12 inches above the highest sprinkler head in the zone. If the installation height is compromised, the vacuum-breaking function becomes useless, rendering the entire assembly ineffective.

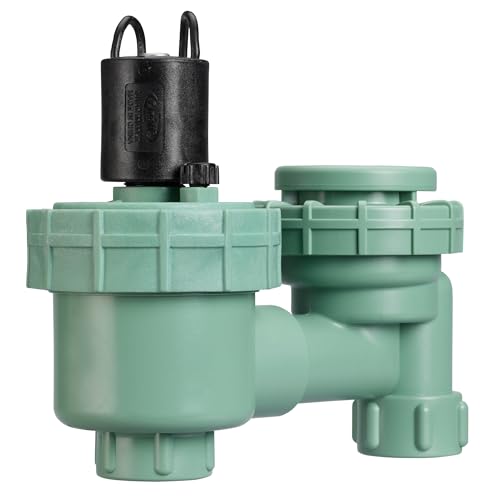

Orbit Jar Top Anti-Siphon: Top DIY-Friendly Pick

The Orbit Jar Top series is the go-to recommendation for the serious homeowner looking to replace a failed valve without calling a professional. The “jar top” design allows for tool-free access to the diaphragm, making it incredibly simple to flush out debris or replace worn-out parts.

While it lacks the heavy-duty industrial specifications of a Zurn or Watts unit, it excels in residential landscape irrigation. Its modular nature means a failure in the solenoid or diaphragm doesn’t require a total repiping of the valve box.

Always verify that the threads are compatible with existing irrigation manifolds before purchase. While the design is intuitive, cross-threading a plastic valve body during a quick Saturday repair is a common way to turn a simple fix into a flooded yard.

Apollo PVB4A Series: A Heavy-Duty Alternative

For those who demand maximum durability, the Apollo PVB4A offers a lead-free bronze construction that exceeds most municipal requirements. It is a workhorse designed for high-stress applications where other valves might crack or fatigue under constant thermal expansion and contraction.

The Apollo line is particularly well-regarded for its high-flow characteristics. If the irrigation setup involves high-volume delivery, this valve ensures the water flow remains consistent throughout the cycle.

Take note of the weight of this unit during installation. Because it is built with high-density materials, it requires proper pipe support to prevent stress on the surrounding PVC or copper fittings.

AVB vs. PVB: Which Backflow Valve Do You Need?

• Atmospheric Vacuum Breakers (AVB): Best for non-continuous pressure applications, such as a single garden hose bib or a temporary water line. These are the most economical option but must be installed at least 6 inches above the highest downstream outlet.
• Pressure Vacuum Breakers (PVB): Necessary for continuous pressure systems where the valve stays pressurized for long durations. These allow for downstream valves and must be installed at least 12 inches above the highest sprinkler head.

Selecting between the two comes down to how the system is operated. If the water remains pressurized 24/7, an AVB will fail almost immediately and cause significant leakage. If the valve only sees pressure during the irrigation cycle, an AVB is likely sufficient and saves on upfront material costs.

Key Installation Rules for Anti-Siphon Valves

Professional installation is defined by attention to elevation and orientation. Anti-siphon valves must be installed in a vertical position to allow the internal poppet to drop freely when the vacuum occurs.

The height requirement is non-negotiable. If the valve sits at or below the level of the highest irrigation head, it cannot effectively break the vacuum. This creates a direct path for contaminated water to be sucked back into the domestic supply, a catastrophic failure that violates almost all local plumbing codes.

Avoid installing these valves in locations prone to standing water or deep burial. While some are designed for valve boxes, ensuring they remain accessible for future testing and maintenance is mandatory for long-term compliance.

Winterizing Your Valve to Prevent Freeze Damage

Freeze damage is the single biggest killer of anti-siphon valves in northern climates. When water inside the valve freezes, it expands with enough force to shatter bronze or PVC bodies, leading to massive leaks once the system thaws.

The best defense is a properly installed blowout system that allows for compressed air to clear the lines before the first hard freeze. If an air blowout isn’t an option, manual draining through a low-point drain cock is the secondary line of defense.

Never rely solely on insulation blankets or foam covers in extreme sub-zero weather. While they offer some thermal protection, they cannot prevent the internal mechanism from freezing if the water hasn’t been drained.

Understanding Local Codes for Backflow Prevention

Always check the municipal building code before finalizing the purchase of a backflow device. Many jurisdictions require that these valves be installed, tested, and certified by a licensed plumber or an irrigation specialist with specific backflow testing credentials.

In some areas, a reduced pressure zone (RPZ) device might be required instead of a PVB or AVB. An RPZ provides a higher level of protection against backpressure and is typically mandated for commercial systems where hazardous chemicals, such as fertilizers or pesticides, are injected into the water line.

Ignoring these local requirements doesn’t just put the public water supply at risk. It also leaves the property owner liable for damages and creates a nightmare scenario during the eventual sale or inspection of the property.

Choosing the right anti-siphon valve is the difference between a system that serves a property for decades and one that becomes an immediate source of leaks and liability. Whether selecting a DIY-friendly Jar Top for a home garden or a professional-grade bronze PVB for an industrial site, prioritizing proper installation height and seasonal maintenance remains the standard for success. When in doubt, consult the local inspector, as they dictate the rules that keep the water supply safe and the project legal.
