6 Best Wire Ferrules For Control Cabinet Wiring Professionals Use

Control cabinet wiring is the silent backbone of any sophisticated electrical installation, much like the hidden layers of a roof determine the longevity of the structure. When dealing with stranded wire, terminating connections without a ferrule is a recipe for intermittent failures, frayed strands, and terminal block damage. Choosing the right ferrule ensures a gas-tight connection that stands up to the thermal expansion and mechanical vibration common in industrial environments. Precision at this stage prevents the kind of callback headaches that plague professionals and DIYers alike.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

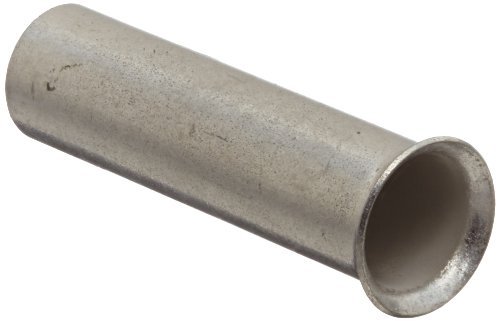

Panduit Pan-Term Ferrules: Best Overall System

Panduit is a staple in high-end industrial control panels because the engineering behind the metal-to-plastic interface is remarkably consistent. These ferrules feature a funneled entry that makes inserting stranded wire significantly faster, especially when working in tight, vertical enclosures.

The material quality here is the standout feature. The copper barrel is plated to prevent corrosion, and the insulation is specifically designed to stay rigid during high-pressure crimping cycles. This reliability makes them the gold standard for professionals who cannot afford a single failed termination in a mission-critical circuit.

Bottom line: If the project budget allows for it, Panduit provides the most repeatable, error-free installation process currently on the market.

WAGO Insulated Ferrules: Best for Versatility

WAGO is synonymous with the spring-pressure terminal block, and their ferrules are optimized specifically for that type of connection. They offer a diverse range of sizes and lengths, which is vital when transitioning between different brands of terminal blocks or varying gauge requirements.

The insulation collar on a WAGO ferrule is sized to match the wire entry port perfectly, ensuring that no copper strands are exposed after installation. This level of compatibility is a major advantage when retrofitting older cabinets or working with modular systems where space is at an absolute premium.

Bottom line: Choose WAGO when the installation involves a mix of different terminal block brands and requires high compatibility across the board.

Phoenix Contact AI-TWIN: Best for Double Wires

The Phoenix Contact AI-TWIN series is an ingenious solution for the common challenge of jumping power to multiple terminal blocks. Instead of cramming two separate wires into a single ferrule and hoping for a secure bite, the TWIN ferrule is designed to house two wires in one insulated entry.

This design creates a secure, uniform connection that effectively replaces the need for cumbersome wire jumpers or shared terminal points. It significantly cleans up the wiring loom and reduces the physical footprint of the connections within the DIN rail assembly.

Bottom line: For dense control cabinets where daisy-chaining or bridge-tying power is required, the AI-TWIN is the only professional-grade solution that holds up under load.

Weidmüller Insulated Ferrules: Top Pro Choice

Weidmüller has built a reputation on extreme durability, making these a favorite for heavy-duty industrial settings. Their ferrules are characterized by a precise wall thickness that avoids the common problem of the barrel cracking or splitting during the crimping process.

When you are wiring a control cabinet in a facility subject to constant machinery vibration, the integrity of the terminal connection is paramount. Weidmüller’s offerings maintain their shape and grip strength over time, which prevents the loosening that leads to arcing and hot spots.

Bottom line: If the cabinet is located in an environment with high vibration or heavy temperature swings, stick with Weidmüller for long-term stability.

TE Connectivity PIDG Ferrules: For High-Vibration

TE Connectivity, or Tyco, utilizes their Pre-Insulated Diamond Grip (PIDG) technology to provide superior vibration resistance. These ferrules are designed with a copper sleeve that reinforces the barrel, ensuring the wire remains firmly anchored even under extreme mechanical stress.

This design is particularly beneficial for equipment mounted on moving bases or machinery that oscillates during operation. The crimp holds with enough force to prevent the wire from working its way out, a common failure point in inferior, thinner-walled ferrules.

Bottom line: For high-vibration applications or mobile industrial equipment, the structural reinforcement of PIDG ferrules provides an essential extra layer of security.

Molex InsulKrimp Ferrules: A Great Value Option

Molex is widely recognized for high-volume electrical components, and the InsulKrimp line is a reliable, cost-effective choice for standard control cabinet work. They offer excellent consistency across their manufacturing batches, which is rare for entry-level pricing.

While they may lack some of the specialized structural reinforcements found in premium lines, they are more than adequate for static environments like climate-controlled server rooms or office-based automation panels. They provide a clean, professional finish without the added cost of exotic materials.

Bottom line: For projects where high-volume, standard-duty wiring is the priority, Molex offers the best balance between price and performance.

Choosing Your Ferrule Crimper: A Crucial Match

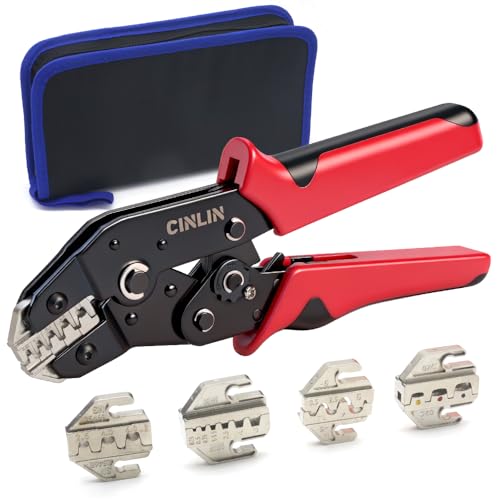

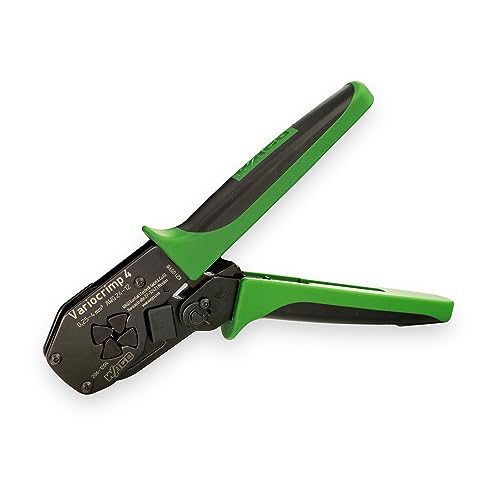

A high-quality ferrule is useless if it is applied with a poor crimping tool. Professionals utilize square or hexagonal profile crimpers, as these shapes maximize surface area contact within the terminal block’s square aperture.

Avoid using generic, multi-purpose crimping pliers meant for insulated ring terminals. These often leave an uneven indentation that can weaken the metal and eventually lead to terminal failure. Investing in a tool with a ratcheting mechanism ensures the crimp is complete before the tool releases, guaranteeing a consistent bite every time.

Bottom line: The tool is just as important as the ferrule; match the crimp profile to your terminal block type for the best electrical contact.

Insulated vs. Non-Insulated: Making the Right Call

Insulated ferrules are the default choice for most control cabinet applications because they provide color-coded strain relief. The plastic collar supports the wire insulation, preventing it from bending sharply and breaking right at the point where the wire meets the metal terminal.

Non-insulated ferrules should be reserved for scenarios where space is so tight that the plastic collar would prevent the wire from seating properly, or in extremely high-temperature environments where the plastic could melt. If the installation is standard, the additional protection of the insulated collar is always the safer, more robust choice.

Bottom line: Default to insulated ferrules for safety and strain relief, and only use non-insulated versions when space or heat constraints dictate otherwise.

Understanding DIN Color Codes for Wire Gauge ID

DIN color coding is the international language of control wiring, providing a quick visual reference for wire gauges. While you should always verify the gauge marking on the spool, knowing the DIN standard is vital for efficiency on the job site.

• White: 0.5 mm² (20 AWG)
• Grey: 0.75 mm² (18 AWG)
• Red: 1.0 mm² (17 AWG)
• Black: 1.5 mm² (16 AWG)
• Blue: 2.5 mm² (14 AWG)

Familiarity with this code speeds up the installation process and makes troubleshooting existing panels significantly easier. Relying on color, however, never replaces checking the specific wire size indicated on the terminal block documentation.

Bottom line: Memorize the common DIN colors to improve your efficiency, but always cross-reference them against the electrical schematics provided for the panel.

Proper Ferrule Installation for a Solid Connection

Successful installation starts with a clean, precise strip of the wire insulation. Use a high-quality wire stripper to ensure no strands are nicked; even a single broken strand in a fine-gauge wire can affect the ampacity and structural integrity of the connection.

Once stripped, twist the strands slightly to keep them bundled, then slide the ferrule over the copper until the wire insulation is flush with the back of the plastic collar. If there is too much exposed copper, trim the wire before sliding the ferrule on. The final crimp should be centered and firm, leaving a clean, uniform shape ready for insertion into the terminal block.

Bottom line: Take the time to strip and seat the wire correctly before crimping, as a sloppy installation will compromise even the best quality ferrule.

Selecting the right ferrule is about more than just keeping the wire strands together; it is about building a connection that will withstand the life of the machine. By focusing on the specific needs of the enclosure, such as vibration, space, and wire density, any technician can ensure a clean, reliable, and professional-grade panel.
