6 Best Step Drill Bits For Mounting Terminal Boxes

Mounting terminal boxes onto metal panels or through tough enclosure materials requires more than just brute force. A standard twist bit often leaves jagged, oversized holes that compromise the weather seal and look unprofessional. Step bits are the industry standard for creating perfectly round, clean-edged holes that fit conduit fittings snugly every time. Choosing the right tool from the start prevents material waste and ensures the structural integrity of the enclosure remains intact.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

DeWalt DWA1790IR Step Bit: The Pro’s Go-To

The DeWalt DWA1790IR features a split-point tip that eliminates walking, which is critical when drilling into slick metal panels on a rooftop. This bit bites into the surface immediately, preventing the tool from skittering across the metal and scratching the finish.

For contractors moving between residential electrical boxes and heavier industrial enclosures, the versatility of the step increments is a major advantage. It handles 1/8-inch to 1/2-inch sizes in one package, allowing for a quick transition between different conduit sizes.

While some bits bind up when exiting the hole, this model cuts smoothly through thin-gauge steel without catching. It is the reliable workhorse for those who need a consistent, daily-use tool that withstands the rigors of a busy job site.

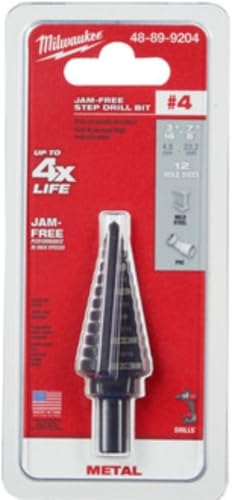

Milwaukee #4 Step Drill Bit: Ultimate Durability

Milwaukee’s reputation for durability is well-earned, and the #4 Step Drill Bit is specifically designed to handle repetitive, high-stress tasks. The “Rapid Strike” tip geometry allows for faster hole starts, which reduces heat buildup during the drilling process.

This bit is particularly effective when working with stainless steel enclosures or thicker electrical panels. The coating is engineered to resist heat, preventing the bit from dulling quickly when pushing through tough, dense materials.

Construction pros often choose this bit when the project scope demands hundreds of holes in a single day. The longevity of the cutting edge justifies the higher initial cost compared to entry-level alternatives.

Irwin Unibit #10234: For Clean Precise Holes

The Irwin Unibit #10234 utilizes a single-flute design that provides a notably smooth cutting action. By removing chips efficiently, this bit prevents the material from clogging, resulting in a cleaner edge that requires minimal deburring after the hole is drilled.

Accuracy is the primary focus of this tool, making it the preferred choice for detailed work where tolerances are tight. When the clearance between a terminal box fitting and a panel rib is minimal, the precision of this bit prevents accidental oversizing.

It is an ideal choice for installers who prioritize a high-quality finish on visible conduit runs. The resulting hole is consistently round, which is essential for maintaining a tight seal against moisture intrusion.

Klein Tools 59001 Step Drill Bit: Electrician’s Choice

Klein Tools is synonymous with electrical work, and the 59001 reflects a deep understanding of field requirements. The bit is optimized for the specific hole sizes required for standard conduit knockouts, saving time on measuring and double-checking dimensions.

The dual-flute design balances speed and control, allowing the user to drill through box material without excessive vibration. This stability reduces fatigue when mounting boxes on vertical surfaces like poles or uneven wall substrates.

Because it is built for the trade, the bit handles the occasional encounter with mild steel or aluminum without skipping a beat. It is a specialized tool that bridges the gap between general construction and precise electrical installation.

Greenlee 30006 Multi-Hole Step Bit: Versatile Power

Greenlee sets the benchmark for high-end hole-making tools, and the 30006 is no exception. This bit features a unique flute design that stays sharp through extensive use, providing a consistent cutting experience across various thicknesses.

This tool is suited for heavy-duty applications where the bit might encounter unexpected material density. It manages heat exceptionally well, ensuring that the temper of the steel isn’t compromised by the friction of high-speed drilling.

It is the definitive choice for crews tackling large commercial or industrial projects. When the cost of downtime is high, this bit provides the reliability needed to keep the project on schedule.

Neiko 10194A Titanium Step Drill Bit: Best Value

For the serious DIYer or the contractor building out a supplemental kit, the Neiko 10194A offers performance that punches above its price point. It provides a broad range of hole sizes in a convenient, durable set, making it a highly practical investment for diverse tasks.

The titanium nitride coating reduces friction, which helps the bit glide through sheet metal and plastic enclosures. While it may not have the longevity of a professional-grade Greenlee or Milwaukee, it performs admirably for the price.

It represents the perfect balance of cost and utility for those who don’t drill holes daily but require a professional-grade result when they do. It is an excellent secondary bit to keep in the truck for occasional, light-duty mounting tasks.

Why a Step Bit Beats a Twist Bit for Boxes

Twist bits are designed for deep holes, not for thin materials like metal electrical enclosures. When used on sheet metal, a twist bit often tears the material, creating a ragged “triangular” hole that makes it nearly impossible to secure a conduit connector tightly.

A step bit, conversely, acts like a mini lathe, shaving the metal progressively larger. This creates a clean, circular hole that matches the exact thread size of the conduit fitting, ensuring a professional, weather-resistant finish.

The pilot step on a step bit also prevents the tool from wandering, which is vital when mounting boxes near the edge of a structural member. Using the right tool effectively eliminates the need for expensive repair work or ugly, oversized holes that invite moisture.

Titanium vs. Cobalt: Which Coating Is Best?

Titanium nitride (TiN) coatings are primarily designed to reduce friction and increase surface hardness. These bits are excellent for most common metals, offering a smooth cutting experience and a longer lifespan than uncoated high-speed steel.

Cobalt, on the other hand, is an alloy rather than just a coating. Cobalt bits are significantly more resistant to the high heat generated when drilling through hardened steel or stainless steel, as they maintain their cutting edge at much higher temperatures.

If the job involves drilling into standard steel electrical boxes, a titanium-coated bit is usually sufficient and cost-effective. For specialized tasks involving stainless steel or high-tensile metal, investing in cobalt-infused options is the only way to prevent rapid tool failure.

Tips for Drilling Clean Holes in Enclosures

Start by using a center punch to create a small dimple exactly where the center of the hole will be. This prevents the bit from walking, especially when drilling into rounded or slick surfaces like round conduit bodies or curved panels.

Always use a cutting fluid or light oil, even when working with thinner metal. This reduces friction, clears the shavings, and keeps the tip temperature low, which significantly extends the life of the bit and results in a much smoother hole edge.

Use a variable-speed drill on a lower speed setting, as high speeds cause the bit to overheat and dull prematurely. Apply firm, steady pressure, and let the tool do the work; forcing the bit will only result in a sloppy hole and a fried cutting edge.

Keeping Your Step Bit Sharp and Cutting Fast

The most common cause of premature dulling is overheating the metal at the tip. If the drill is smoking or creating blue-tinted metal shavings, stop immediately and apply more cutting oil or reduce the drill speed.

Cleaning the bit after every use is mandatory for maintaining performance. Use a wire brush to remove stuck metal shavings and debris from the flutes, as residual chips can act as abrasives that quickly degrade the sharpness of the cutting edges.

When the bit eventually begins to struggle, utilize a small diamond file to lightly hone the edges of each step. Proper maintenance allows a high-quality step bit to remain a fixture in the tool bag for years, paying for itself many times over in efficiency and professional results.

Proper tool selection is the difference between a clean, code-compliant install and a recurring maintenance nightmare. Invest in the right step bit for the material at hand, and you will ensure that every box mounted remains secure, sealed, and aligned for the life of the structure.
