6 best banjo bolts for restricted space plumbing

When you are deep into a mechanical system—whether it’s a high-pressure hydraulic line on a lift or a critical fluid junction on a piece of heavy equipment—space is the primary enemy. A standard fitting that sticks out half an inch too far can lead to pinched lines, vibration wear, or a total inability to connect your plumbing. Banjo bolts are the low-profile solution to these tight-clearance headaches. Choosing the right one prevents catastrophic leaks and saves hours of frustration during maintenance.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

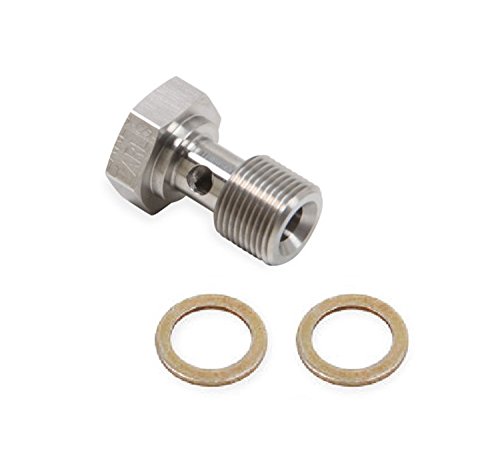

Earl’s Performance Low-Profile Banjo Bolt: Top Pick

When clearance is measured in mere millimeters, the Earl’s Low-Profile Banjo Bolt remains the industry benchmark. Its design minimizes the total height of the assembly, effectively pulling the banjo fitting closer to the mating surface.

This is the go-to component for cramped engine bays or tight structural mounting points where a standard hex head would strike a frame rail. The reduced profile does not sacrifice structural integrity, allowing for full torque application without rounding the bolt head.

For contractors working in tight mechanical quarters, this bolt reduces the risk of vibration-induced interference. If you have a system where a protruding bolt head might rub against a chassis member, this is the safest path forward.

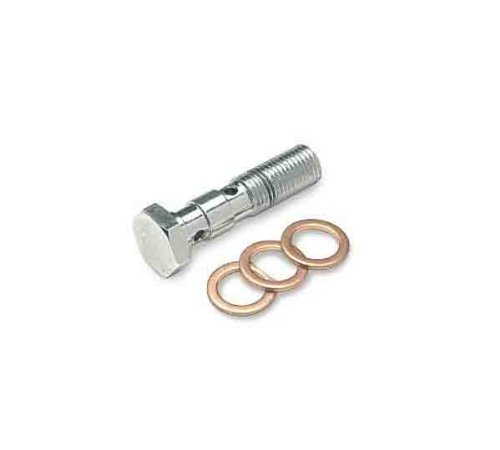

Goodridge Double Banjo Bolt: Best for Dual Lines

Dual-feed systems require efficiency, and the Goodridge Double Banjo Bolt excels by allowing two separate lines to pull from a single port. It effectively turns one mounting point into a distribution hub without the mess of additional T-fittings.

Using this bolt eliminates the need for bulky manifold blocks or excessive adapters, which are notorious for leaking at every additional thread point. Fewer joints mean fewer points of failure in pressurized systems.

These are essential when space prohibits the use of complex plumbing trees. By stacking your banjo fittings, you can route fluid to two distinct locations while keeping the footprint compact and organized.

Aeroquip Stainless Steel Banjo Bolt: Most Durable

Stainless steel is the material of choice when the environment is corrosive or the application is high-stress. The Aeroquip Stainless Steel Banjo Bolt offers superior resistance to oxidation, making it ideal for external equipment exposed to moisture, salt, or harsh chemicals.

While aluminum is lighter, it can be prone to fatigue or thread stripping if overtightened during a field repair. Stainless steel offers a higher margin for error during installation and stands up to the constant heat cycling of industrial machinery.

Choose this bolt for critical applications where a failure would result in significant downtime or safety risks. It carries a higher price tag, but the longevity in punishing environments justifies the initial investment.

Spectre Performance Banjo Bolt Kit: Best Value

For the DIYer or the contractor finishing a budget-conscious project, the Spectre Performance Banjo Bolt Kit provides everything needed to get the line sealed. It offers a standardized solution that covers most common thread pitches without the high cost of premium race-grade hardware.

These kits are often packaged with the necessary crush washers, which saves an extra trip to the parts store. They are perfectly adequate for standard automotive or light-duty pneumatic applications where extreme pressure or vibration isn’t the primary concern.

Understand that these bolts may be slightly larger than top-tier low-profile variants. Always verify your clearance before finalizing the install, as these represent a balance of economy and functional performance rather than ultimate low-profile engineering.

Russell Billet Aluminum Banjo: For Lighter Setups

When weight is a primary factor—such as in specialized equipment or high-performance builds—the Russell Billet Aluminum Banjo bolt is the right choice. The billet construction ensures a high strength-to-weight ratio that cast alternatives cannot match.

The anodized finish also provides a layer of protection against basic corrosion. However, be mindful that aluminum threads are softer than their steel counterparts. They require more precision during the start of the threading process to prevent cross-threading.

Use these in clean, dry environments where every ounce counts and the system is not subjected to extreme mechanical vibrations. They provide a sleek, professional look while maintaining the low profile necessary for tight installations.

Fragola Banjo Bolt with Bleeder: For Easy Purging

The Fragola Banjo Bolt with an integrated bleeder screw is a brilliant design for any hydraulic system that requires frequent purging. It turns a standard fluid junction into a maintenance point, allowing air to be removed without breaking the line.

Trying to bleed a system in a tight space is often a nightmare, involving messy fluid spills and difficult access to release valves. By moving the bleeder point directly to the banjo bolt, you streamline the maintenance process significantly.

This component is a game-changer for hydraulic brakes or steering systems where trapped air causes spongy, inconsistent performance. It is a premium upgrade that pays for itself in time saved during the first service interval.

Choosing Your Banjo Bolt: Threads and Materials

Banjo bolts are not universal, and selecting the wrong thread pitch is a fast track to ruining a housing. Most systems utilize metric (M10x1.0, M10x1.25) or British Standard Pipe (BSP) threads, and the two are never interchangeable.

• Steel/Stainless Steel: Best for high pressure and durability.
• Aluminum: Ideal for weight-sensitive, low-vibration builds.
• Anodized vs. Raw: Anodizing offers minor corrosion resistance and aesthetic appeal.

Always use a thread pitch gauge if you are unsure of the specifications. Forcing a bolt into a housing because it “looks close” will destroy the delicate internal threads of the manifold, turning a simple bolt swap into a major repair.

How to Properly Torque and Seal a Banjo Fitting

A banjo bolt is only as good as the seal it creates with the crush washers. Because the banjo fitting relies on a flat surface contact, you must ensure the bolt head and the washers are clean, dry, and free of debris.

1. Place one crush washer on the bolt, then the fitting, then the second washer.
2. Hand-thread the bolt to ensure it is perfectly square to the port.
3. Use a torque wrench to tighten to the manufacturer’s specific settings.

Never guess the torque. Over-tightening crushes the washers to the point of deformation, leading to leaks, while under-tightening leaves the seal prone to weeping under pressure. Follow the torque spec precisely to maintain the integrity of the fitting.

Banjo Bolt vs. NPT Fitting: When to Use Each

The choice between a banjo bolt and an NPT (National Pipe Taper) fitting usually comes down to space and the need for orientation. A banjo bolt allows the hose to swivel 360 degrees before tightening, making it perfect for confined areas where hose routing is complex.

NPT fittings rely on thread deformation to seal, which makes them permanent and difficult to orient toward a specific direction. If you need a fitting that can be indexed to face a particular way without sacrificing the seal, the banjo bolt is superior.

However, NPT fittings are often cheaper and hold up better under extreme constant pressure without the need for crush washers. Reserve banjo bolts for space-constrained or swivel-critical applications.

Crush Washers: Can You Reuse Them on the Job?

The short answer is no; you should never reuse a crush washer. Once these washers are compressed during the initial torque cycle, they lose the structural memory required to maintain a consistent seal.

Reusing a washer might hold for a short time, but the vibration and pressure cycling will almost inevitably lead to a weep. The cost of a few copper or aluminum washers is negligible compared to the cost of pulling the assembly apart to fix a leak later.

Always keep a variety of sizes on hand in your kit. If you find yourself in a pinch and absolutely must reuse one, inspect it for deep grooves or thinning, but understand that you are taking a risk with the system’s overall reliability.

Selecting the right banjo bolt comes down to understanding the specific demands of your assembly—whether it’s the need for extreme clearance, rapid purging, or sheer structural durability. By matching the material and design to your space constraints and pressure requirements, you turn a potential maintenance nightmare into a robust, leak-free connection. Always prioritize the correct thread pitch and fresh crush washers to ensure your work stays solid long after the tools are put away.
