6 Best Magnetic Particle Inspection Yokes for Structural Steel

Magnetic Particle Inspection (MPI) is the standard for ensuring structural steel integrity, especially when verifying the quality of critical load-bearing welds. Choosing the right yoke isn’t just about brand recognition; it is about matching the flux density and portability to the specific environment of the job site. Whether performing routine checks on primary roof trusses or inspecting complex moment connections in a high-wind zone, the effectiveness of the inspection depends entirely on the equipment’s reliability. Poor magnetic penetration leads to undetected subsurface cracks, potentially risking catastrophic structural failure during high-stress weather events.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Magnaflux Y-7 AC/DC Yoke: Best All-Around Performer

The Magnaflux Y-7 is the workhorse of the industry, offering both AC and DC capabilities in a single housing. AC mode is superior for detecting surface-breaking defects, while DC mode penetrates deeper to uncover sub-surface issues that AC might miss.

This dual-mode versatility makes it the top choice for contractors who transition between different structural materials and code requirements. It eliminates the need to carry two separate tools, saving space in the truck and time on the ladder.

Because of its robust construction, the Y-7 handles the daily abuse of a construction site with ease. If the work involves heavy-gauge structural steel where code requires both surface and subsurface verification, this unit is the most efficient investment.

Parker Research B-300S: The Most Ergonomic AC Yoke

The Parker B-300S is favored for its balanced design and reduced weight, which significantly decreases operator fatigue during long days of weld inspection. When tasked with inspecting hundreds of feet of beam welding, the physical strain of heavy equipment can lead to sloppy technique and missed indications.

Its specialized contouring allows the operator to maintain a steady grip while navigating tight spaces or around structural gussets. The trigger assembly is highly responsive, ensuring that the magnetic field is applied consistently without unnecessary finger strain.

While it is strictly an AC unit, its performance is unmatched for surface-level cracks. It remains the ideal tool for structural inspectors prioritizing physical comfort and high-volume, repetitive inspections.

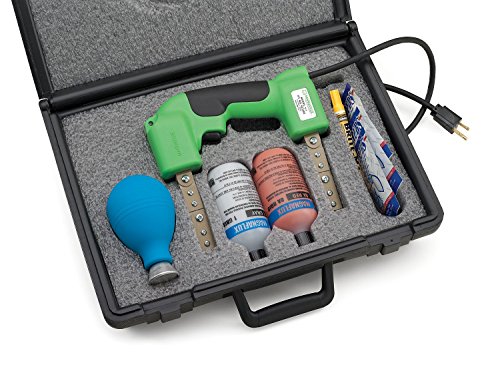

Magnaflux Y-1: Industry Standard Lightweight AC Yoke

The Magnaflux Y-1 is defined by its compact, lightweight frame that makes it highly effective in cramped, overhead positions. When working in tight plenum spaces or maneuvering around complex bridging, the bulk of a standard yoke can quickly become a hindrance.

Despite its smaller footprint, it provides a consistent magnetic field that meets ASTM standards. It is specifically engineered to be low-maintenance, meaning it stays on the job site rather than in a repair shop.

The Y-1 is the gold standard for contractors who primarily perform surface crack checks on structural frames. It is a no-nonsense tool that delivers exactly what is promised without the added weight of internal DC circuitry.

Western Instruments WC-6: Most Durable Yoke for Field Use

Western Instruments builds the WC-6 with a focus on rugged, field-ready durability. If the job involves dusty, wet, or high-vibration environments, this yoke is built to survive conditions that would cause lesser units to short out or fail.

The chassis is designed to withstand the accidental drops and rough handling common on major construction sites. Its sealed electronics provide an added layer of protection against metal shavings and debris, which often infiltrate other magnetic inspection equipment.

For projects in harsh climates or long-term infrastructure sites, the WC-6 is the tool of choice. It prioritizes longevity and toughness, ensuring that field inspections aren’t interrupted by equipment malfunction.

Magnaflux Y-8: Best Battery-Powered Yoke for Portability

The Magnaflux Y-8 is the ultimate solution for inspections where power outlets are non-existent or dangerous to access. It runs entirely on a rechargeable battery pack, allowing inspectors to move freely across the site without trailing extension cords.

This freedom of movement is a game-changer for large-scale steel erection projects where moving a generator or stringing long cords slows down the inspection timeline. It offers the same reliable DC performance as corded units, maintaining consistent field strength throughout the battery life.

The portability does require battery management, so keeping an extra pack charged is essential. However, for sheer mobility on high-altitude steel frames or remote sites, the Y-8 is unmatched.

Johnson & Allen JAM 230: Top Choice for Heavy-Duty Welds

The Johnson & Allen JAM 230 is designed for high-intensity work where massive flux is required to penetrate thick-walled sections. It is a heavier-duty unit that excels in environments where code specifications demand deep, high-sensitivity inspection.

Its build quality is oriented toward professional NDT (Non-Destructive Testing) technicians who perform rigorous, high-stakes assessments. The unit is optimized for superior contact, ensuring that the magnetic field is fully transferred into the steel even on rough or coated surfaces.

While not the lightest option available, its ability to identify flaws in heavy industrial plate welding makes it a necessity for specialized structural projects. It is a tool designed for accuracy above all else.

AC vs. DC Yokes: What’s Right for Your Steel Inspection?

Choosing between AC and DC depends entirely on the type of defects being targeted and the structural requirements of the project. AC (Alternating Current) yokes are best at creating a strong surface field, making them perfect for finding surface-breaking cracks in structural welds.

DC (Direct Current) yokes provide a deeper, more penetrating magnetic field, which is necessary if the inspection requires checking for subsurface weld defects or inclusions. Many modern structural codes require a more thorough subsurface investigation for critical load-bearing joints.

If the site is small and the welds are straightforward, an AC yoke is typically sufficient. For complex infrastructure or deep-penetration weld testing, a dual-mode unit or a dedicated DC yoke is necessary to meet the structural engineer’s specifications.

Key Features to Look For in a Magnetic Particle Yoke

When evaluating a yoke, prioritize the duty cycle, which determines how long the unit can operate without overheating. A high-duty cycle is non-negotiable for large-scale inspections where speed and efficiency are required.

The lift weight capacity is another critical factor, as it indicates the strength of the magnetic field generated by the yoke. Ensure the unit meets the standard test weight requirements (usually 10 lbs for AC) to comply with local building codes.

Also, evaluate the cord durability and the trigger design, as these are the first two points of failure on any job site. A unit with a field-replaceable cord is a significant advantage in terms of long-term cost and reduced downtime.

How to Perform a Yoke Test on Structural Steel Welds

Preparation is everything; the weld must be cleaned of slag, loose rust, and heavy paint before applying any inspection media. Even the best yoke will fail to show a clear indication if the surface contact is compromised by debris.

Apply the magnetic particles either in a dry powder form or as a wet suspension while the yoke is powered and positioned on the steel. Maintain the recommended pole spacing—typically between 3 to 6 inches—to ensure the magnetic field effectively bridges the weld area.

After applying the media, inspect the weld surface carefully while the yoke is energized. The particles will migrate to and outline any defects, creating a visible indication of a crack or flaw in the steel.

Interpreting Indications: What Do Your Results Mean?

Distinguishing between a relevant indication and a non-relevant one is the core skill of a structural inspector. A relevant indication occurs when magnetic particles accumulate due to an actual discontinuity, like a crack, lack of fusion, or porosity in the weld.

Non-relevant indications are often caused by surface geometry, such as the transition between the weld bead and the base metal. These false positives can lead to unnecessary repairs if the inspector lacks the experience to differentiate them from true structural flaws.

Always follow the acceptance criteria provided in the project’s specific weld procedure specification (WPS). If an indication exceeds the allowed size or depth specified for the joint, the weld must be ground out and re-welded according to the structural engineer’s instructions.

Properly executed magnetic particle inspection is the final gatekeeper for structural integrity in steel construction. Investing in a reliable yoke and understanding the nuances of its operation ensures that every weld meets the required safety standards, keeping the entire structure secure for its service life.
