6 Best Crimping Tools For Miniature Electrical Terminals

Working with miniature electrical terminals is much like flashing a complex chimney cricket; precision is non-negotiable, and a single mistake can lead to failure when it matters most. Low-voltage systems and specialized controls on job sites rely on these tiny connections for long-term reliability under vibration and thermal stress. Using the wrong tool for these delicate tasks often results in high-resistance joints that mimic the failure of a poorly sealed roofing boot. Selecting the right crimper ensures that connections remain sealed against the elements and conductive enough to prevent system downtime.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

IWISS IWS-3220M: Best Value for Tiny Terminals

This tool serves as the workhorse for those who need to handle micro-terminals without blowing the budget. It offers a wide range of gauge coverage, making it a sensible choice for general-purpose repairs on small-scale electronic controllers or sensor wires.

The build quality is functional, providing a consistent enough crimp for hobbyists or occasional site repairs. It manages the dual-crimp action required for open-barrel terminals effectively, handling both the wire and the insulation crimp in one motion.

While it lacks the refined feel of premium Japanese or German alternatives, it performs reliably under moderate use. If the scope of work involves intermittent maintenance rather than daily production, this tool delivers the necessary results without the premium overhead.

Engineer PA-09: The Precision Hobbyist Favorite

The PA-09 is widely recognized for its ability to tackle the smallest connectors that leave other tools struggling. It features a range of precision-machined dies that accommodate wire gauges that seem almost impossible to work with, making it essential for delicate instrumentation.

Because it lacks a ratcheting mechanism, the operator has complete control over the pressure applied during the crimp. This manual tactile feedback is invaluable when working with fragile terminals that could be crushed by an over-aggressive, heavy-duty tool.

It is highly recommended for those who prioritize finesse over raw speed. When the job requires absolute accuracy on a microscopic scale, this is the tool to reach for.

Hozan P-707: Pro-Level Open-Barrel Crimper

Hozan tools are a staple for those who demand professional Japanese manufacturing standards. The P-707 is specifically engineered for open-barrel terminals, providing a “B” crimp profile that mirrors the output of factory-automated machines.

The leverage ratio on these pliers allows for a firm, secure connection without requiring immense hand force. The jaws are specifically tuned to guide the insulation and wire tabs into the correct position, preventing the “buckling” often seen with inferior tools.

This tool is a long-term investment for anyone frequently installing small-pin connectors. It bridges the gap between high-end industrial crimpers and handheld manual tools, offering a perfect balance of ergonomics and performance.

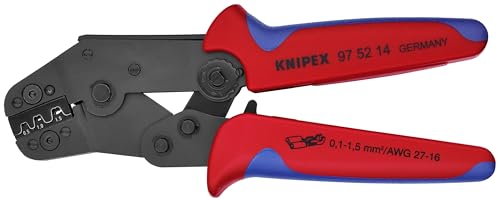

KNIPEX 97 52 14: German Engineering for Crimps

Knipex brings an uncompromising approach to tool design, and this model is no exception. Built to withstand the rigors of a construction site, it features a heavy-duty frame and a precision-calibrated ratcheting system that ensures a perfect cycle every time.

The tool’s eccentric adjustment allows for re-calibration if the crimp pressure drifts over years of heavy use. This longevity makes it a staple for contractors who cannot afford to have equipment failures during critical installation windows.

It is arguably the most robust option for field work. While the investment is higher, the performance under stress and the consistency of the crimp justify the cost for any professional trade application.

Molex 63811-1000: The Official Pro Crimp Tool

When working with specific Molex connector systems, using the manufacturer-certified tool is the only way to guarantee a spec-compliant connection. This tool is built to hold the terminal at the exact tolerance required by the engineering data sheets.

It eliminates the guesswork involved in selecting which jaw size matches a specific pin. By using this tool, you ensure that the contact resistance meets manufacturer standards, which is vital for preventing voltage drops in sensitive control circuits.

While less versatile than a general-purpose crimper, it is the only choice for mission-critical assemblies. If the project specs demand adherence to original manufacturer guidelines, do not attempt to use a substitute.

Delphi 12085271: The Pro’s Automotive Choice

Delphi terminals are common in automotive and heavy-machinery wiring, and this tool is the standard for securing them correctly. It is designed to handle the weather-tight seals often found on these connectors, which require a specific crimp geometry to ensure a watertight bond.

The design focuses on creating a reliable mechanical lock that resists the constant vibration of heavy machinery. In roofing, where sensors might be mounted on vibrating HVAC units or solar inverter arrays, this level of security is necessary to prevent intermittent faults.

It is a specialized tool, but for those who work on heavy equipment or specialized outdoor electronic systems, it is an essential part of the kit. It ensures that the connection remains just as sealed and secure as the rest of the installation.

Choosing the Right Jaws for Your Specific Terminal

Selecting the correct jaw is as critical as selecting the right roofing nail for a specific deck type. If the jaw profile is too wide, the insulation ears will not fold correctly, leading to an insecure connection that can fray over time.

• Look for ‘B’ crimps for open-barrel terminals to ensure the wire and insulation tabs roll properly.
• Check the gauge markings on the tool against your wire insulation; a loose fit results in a high-resistance joint.
• Avoid multi-purpose tools if the terminal manufacturer specifies a dedicated die profile.

Always test a crimp on a scrap piece of wire before committing to the final install. If the terminal pulls off with moderate tension, adjust the gauge setting or die selection immediately.

Open-Barrel vs. Closed-Barrel: What’s the Diff?

Open-barrel terminals have distinct tabs that wrap around the wire and the insulation, creating a mechanical bond that is visible and accessible. These are the standard for most modern electronics and require tools that fold the metal into a specific “B” shape.

Closed-barrel terminals, by contrast, are essentially tubes that you slide a wire into before crimping. These provide a higher degree of environmental protection and are often used in heavier electrical loads where the terminal needs to act as a solid, unified connector.

Knowing which type you are dealing with is half the battle. If you try to crimp a closed-barrel terminal with a tool designed for open-barrel tabs, you will crush the terminal and destroy the connection.

How to Make a Perfect Reliable Crimp Every Time

A perfect crimp begins with proper wire preparation. Ensure the insulation is stripped back only as far as necessary; too much exposed copper leads to potential short circuits, while too little prevents the terminal from gripping the wire casing.

Position the terminal in the jaw so that the “B” fold lines up perfectly with the wire strands. Apply steady, firm pressure until the ratcheting mechanism releases, or until the handles fully close.

Inspect the connection visually. The strands should be securely compressed, and the insulation ears should be tightly folded over the casing. If the metal has sharp burrs, the crimp was either misaligned or applied with too much pressure.

Ratcheting vs. Non-Ratcheting: Is It Worth It?

Ratcheting tools are designed to remove human error from the equation. They force the tool to complete the full crimp cycle before the jaws can open, ensuring that the pressure applied is always consistent regardless of the operator’s strength.

Non-ratcheting tools offer more flexibility and are often smaller and lighter. They are excellent for tight spaces where a bulky ratcheting head won’t fit, but they require the operator to have a high level of consistency and “feel” for the task.

For professional settings where dozens of connections are made daily, ratcheting is the superior choice for fatigue reduction and consistency. For the occasional repair, a high-quality manual tool is perfectly adequate and often more portable.

Selecting the right crimping tool is an investment in the long-term integrity of your electrical work, much like choosing the correct fastener for a metal roof. By matching the tool’s capability to the specific terminal type and project requirements, you ensure a finished product that stands up to the elements and performs reliably under pressure. When in doubt, lean toward precision and manufacturer-recommended specifications to keep your systems running flawlessly.
