6 Best Mounting Plates For Wall Studs Pros Rely On

Roofing mounts are the hidden foundation of any rooftop installation, carrying the burden of structural loads and weather-tight integrity. Choosing the wrong mounting plate often leads to catastrophic water intrusion or mechanical failure long before the shingles wear out. These components must reconcile the rigid requirements of structural framing with the flexible, temperamental nature of exterior roofing systems. Making the right choice requires a deep understanding of uplift ratings, material compatibility, and the specific mechanics of different roof surfaces.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Quick Mount PV QBase: Best For Asphalt Shingles

The QBase system is engineered to solve the primary weakness of traditional flashing: reliance on the fastener itself to prevent water ingress. By separating the structural connection from the flashing process, it creates a robust, isolated anchor point.

This mount is the industry standard when dealing with composition shingles because it utilizes a unique compression-seal design. When fastening into a rafter, the aluminum base is secured with heavy-duty lag bolts, creating a high-strength bond that handles significant vertical and shear loads.

The real advantage lies in the integration of the flashing, which sits flush against the deck. This configuration minimizes the height profile and ensures that shingles lay flat, preventing the “tenting” effect that often leads to blow-offs during high-wind events.

Simpson Strong-Tie MP Plate: Top Value Versatility

When the project scope involves light-duty framing or general-purpose mounting, the Simpson Strong-Tie MP plate provides unmatched utility. It serves as a universal mounting interface for various bracket types, making it a reliable staple for contractors who prioritize compatibility.

The primary strength here is the wide footprint, which distributes mechanical loads across a larger surface area of the timber. This is especially useful when the underlying lumber is older or shows minor signs of checking, as it prevents the hardware from pulling through the wood fibers.

While it lacks the specialized flashing features of dedicated solar mounts, it excels in applications like conduit support, HVAC piping, or small-scale signage. Use this plate when the installation requires a cost-effective, high-tensile connection that doesn’t need to meet the extreme waterproofing standards of a primary roof penetration.

IronRidge All-Tile Hook: The Go-To For Tile Roofs

Tile roofs represent the most challenging substrate for mounting due to the fragility of the tiles and the complexity of the underlayment. The IronRidge All-Tile Hook is specifically designed to bypass these risks by mounting directly to the rafter without necessitating tile grinding or breakage.

The adjustable slot allows for precise positioning, which is critical when the tile layout is slightly irregular or inconsistent. By hooking over the structural element, it avoids putting stress on the tile itself, preventing the cracking that often occurs when inexperienced installers apply pressure to ceramic or concrete units.

Success with this mount relies heavily on the proper application of flashing sheets to maintain the integrity of the secondary water barrier. When installing in high-rain zones, ensure that the hook’s flashing is correctly layered under the upslope tile to maintain a shed-like drainage path.

SnapNRack L-Foot Mount: Most Adaptable System

The L-foot mount is the workhorse of the solar industry, prized for its ability to provide three-axis adjustment. This range of motion is vital for leveling a rack system on a roof plane that is rarely perfectly flat or uniform.

Beyond mere adjustment, these mounts are often paired with proprietary standoffs that elevate the array above the roof deck. This elevation is essential for airflow, as trapped heat can prematurely degrade the life expectancy of roofing materials like asphalt shingles or synthetic underlayment.

When specifying these, focus on the material quality and the finish of the L-foot, such as anodized aluminum, to prevent galvanic corrosion. Avoid using stainless steel hardware directly against aluminum plates without an insulating barrier, as the chemical reaction can weaken the connection over time.

S-5! Corru-Bracket: The Standard For Metal Panels

Metal roofing requires a unique approach, as punching holes through the panel is a recipe for future leaks. The S-5! Corru-Bracket utilizes a clamp-to-seam or a direct-to-purlin approach that respects the thermal expansion and contraction of the metal sheets.

These brackets are specifically contoured to match the profile of the metal panels, such as corrugated or trapezoidal ribs. By matching the geometry perfectly, the bracket creates a secure, non-penetrating or gasket-sealed anchor that maintains the watertight integrity of the roof’s surface.

For high-wind regions, the correct placement of these brackets relative to the structural purlins is non-negotiable. Always verify that the fastener length is sufficient to engage the structural steel or wood purlin beneath, rather than just grabbing the light-gauge metal panel.

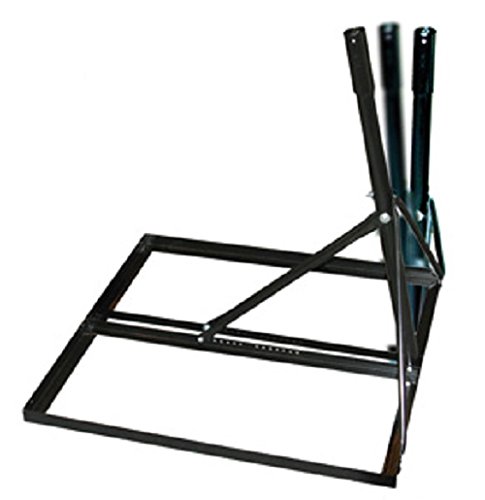

Perfect Vision Mount: For Dishes and Antennas

Mounting telecommunications equipment requires a focus on rigidity and vibration damping rather than just static load capacity. The Perfect Vision mount is engineered to handle the wind-sail effect created by dish antennas, which can create significant leverage on the mounting plate.

These plates are often reinforced with heavy-gauge steel and multiple lag points, ensuring that the anchor doesn’t “walk” or loosen under constant wind oscillation. The design typically incorporates a wide base to prevent the rotational force from tearing at the roof deck.

It is common to over-tighten these fasteners, which can lead to wood splitting or stripped threads in the rafter. Use a calibrated torque driver to ensure the lag bolts are seated firmly but not beyond their elastic limit, maintaining the integrity of the structural timber.

Load Ratings vs. Material: What You Need to Know

Understanding load ratings requires a distinction between vertical (downward) loads and shear (lateral) loads. Roofing mounts are typically rated for both, but the weakest link is almost always the wood rafter itself, not the steel plate.

Consider the following when reviewing load data: * Pull-out strength: The force required to pull a lag bolt straight out of the rafter. * Lateral shear: The side-to-side force exerted by wind or snow sliding off the roof. * Material fatigue: How the connection holds up over thousands of heating and cooling cycles.

Never assume a mount is “universal” across all wood species. A mount secured into dense, old-growth Douglas fir will behave differently than one driven into soft, fast-growth pine; always size the hardware according to the actual species of the roof framing.

How to Properly Flash and Seal a Mounting Plate

Flashing is the most critical element of any roof penetration, yet it is where most failures occur. The goal is to create a multi-layered system that forces water to flow around the mount, never over or into the hole.

Always follow the “shingle fashion” rule: the top edge of the flashing must be tucked at least two inches under the upslope course of shingles. This creates an overlapping effect that prevents water from traveling backward toward the penetration.

For sealants, skip standard silicone, which often fails under UV exposure and lacks the necessary adhesion to diverse roofing materials. Spec a high-grade polyurethane or MS polymer sealant that remains flexible at low temperatures and can maintain its bond during the expansion cycles of a metal or asphalt roof.

Best Ways to Reliably Locate Studs and Rafters

Missing a rafter is an expensive mistake that leaves a permanent hole in the roof deck that is difficult to patch reliably. Relying solely on a stud finder is insufficient, as the density of roofing materials like tile or thick metal can provide false readings.

Instead, use a combination of methods: locate the rafters by observing the roof nail pattern of existing shingles or by measuring from the roof edge or chimney. If the underside of the deck is accessible, drill a small pilot hole from below to mark the center of the rafter before moving to the exterior.

Always verify the rafter’s condition by inspecting the pilot hole for rot or water damage before driving a large-diameter lag bolt. If the wood feels “soft” or shows signs of discoloration, that rafter is not structurally sound enough to support a mount and must be skipped or reinforced.

When to Call a Pro for Structural Mount Projects

The complexity of mounting equipment increases exponentially with the roof pitch and the weight of the hardware. If the installation requires cutting into structural trusses, modifying the roof frame, or working on pitches exceeding 8/12, the project enters the territory of structural engineering.

Furthermore, any mount that requires removing and replacing multiple rows of clay or slate tile should be handled by a professional. These materials are brittle and require specialized skill to avoid causing collateral damage that could compromise the entire roof system.

When in doubt, consult a local building inspector regarding permit requirements. Many jurisdictions require stamped engineering drawings for roof-mounted solar arrays or large antennas, and a professional contractor will already have the systems in place to ensure compliance with local codes.

Selecting the right mounting plate is the difference between a roof that lasts for decades and one that becomes a maintenance headache within a few years. Prioritize hardware that matches your specific roof material and structural needs, and never cut corners on the waterproofing process. With the correct foundation, the rest of the installation becomes a matter of precision rather than damage control.
