6 Best Hydraulic Cylinder Seals for Heavy Duty Use

Hydraulic systems serve as the backbone of heavy machinery, from the boom lifts used to stage shingle pallets to the excavators clearing a building site. When a seal fails, the job stops, fluid leaks contaminate the ground, and costly downtime mounts rapidly. Choosing the right replacement isn’t just about matching dimensions; it is about matching the seal material and profile to the pressure and temperature demands of the machine. Selecting the correct component ensures the equipment keeps running under the heavy loads common to professional construction projects.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

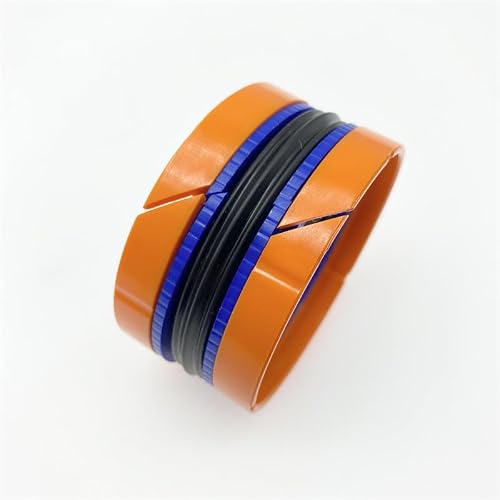

Hallite 605 Piston Seal: The Industry Workhorse

[lasso id=”24318″]

The Hallite 605 is widely recognized as the standard for general-purpose heavy-duty applications. It utilizes a robust, two-piece design that handles a wide range of pressures without losing structural integrity.

When a cylinder is constantly cycling—such as a tilt cylinder on a skid steer—this seal provides the necessary stability to prevent extrusion. It remains effective even when the cylinder bore is not perfectly honed, making it a reliable choice for older equipment.

While it lacks the exotic temperature ratings of specialized fluoroelastomers, its balanced design makes it a versatile go-to for most job sites. For general fleet maintenance, keeping a stock of 605s is a sound strategy to minimize machine downtime.

Parker B-Series Rod Seal: Top High-Pressure Pick

[lasso id=”24319″]

High-pressure systems demand seals that resist deformation under extreme force. The Parker B-Series is engineered specifically to maintain a tight barrier against pressurized hydraulic fluid, even during sudden pressure spikes.

Construction equipment often encounters hydraulic shock when an attachment hits an immovable object like a buried rock or foundation footer. The B-Series excels in these conditions, as its profile is designed to resist rolling or “spiraling” inside the gland.

Because this seal is stiff, it requires precision during installation to avoid damaging the sealing lip. Ensure the rod surface is free of nicks or pitting before seating this seal to guarantee a leak-free performance.

Trelleborg Zurcon U-Cup RU9: For Extreme Temps

Extreme weather environments require specialized materials that don’t become brittle in the cold or lose their elasticity in the heat. The Zurcon RU9 is formulated from polyurethane, offering excellent thermal stability and wear resistance.

In northern climates where equipment sits in freezing temperatures, standard rubber seals often stiffen and crack upon initial movement. The RU9 retains its flexibility, preventing those initial “cold start” leaks that drain a reservoir.

This seal is an excellent investment for equipment utilized in both high-heat desert environments and frigid winter construction. If the machine operates year-round across wide temperature swings, this is the primary choice.

Chesterton 11K: Easiest Seal for Field Repairs

Field repairs are inevitable when a machine is miles from the shop. The Chesterton 11K is designed for situations where a perfect fit is needed without access to a full machine shop.

This seal often comes in a material that can be slightly adjusted or fits a variety of common housing dimensions, reducing the headache of searching for proprietary OEM parts. It is forgiving during the installation process, which is critical when working on a tailgate or in the mud.

While it might not be the highest-rated seal for long-term, ultra-high-pressure industrial use, its ease of use makes it the best friend of any lead mechanic. It gets the machine back into production quickly.

SKF H-ECOPUR Seal: Best for Abrasion Resistance

[lasso id=”17663″]

Construction sites are inherently dirty, and fine dust often makes its way into hydraulic systems despite the best wiper seals. The SKF H-ECOPUR is engineered for superior abrasion resistance, standing up to the microscopic debris that shreds lesser materials.

This material is exceptionally tough and maintains its sealing geometry even after thousands of hours of operation. It is particularly effective in cylinders prone to side-loading, where the rod pushes against one side of the seal more than the other.

If the equipment is working in sandy, silty, or highly abrasive environments, the H-ECOPUR provides significantly longer service intervals. It effectively pays for itself by reducing the frequency of rebuilds.

Freudenberg Omegat OMS-S: Peak Performance Pick

The Freudenberg Omegat OMS-S is the choice when the specs call for zero-leak performance and low friction. Its design minimizes “stick-slip,” which is the jerky motion sometimes seen in cylinders moving at very slow, precise speeds.

This is critical for heavy equipment that requires fine control, such as crane outriggers or precision leveling gear. The PTFE-based material offers an incredibly low coefficient of friction, ensuring smooth, predictable movement.

Expect a higher price point for this level of engineering. However, for critical systems where precision is non-negotiable, the OMS-S is the top-tier performer in the field.

Seal Material: Urethane Nitrile or PTFE?

Choosing the material is just as important as choosing the profile. Urethane is the “king” of toughness, offering extreme resistance to wear and extrusion in high-pressure applications.

Nitrile (Buna-N) remains a classic choice for low-to-medium pressure applications due to its cost-effectiveness and flexibility. However, it lacks the ruggedness needed for heavy-duty earthmoving equipment.

PTFE (Teflon) is used for its chemical compatibility and ultra-low friction properties. Always verify that the fluid type, temperature, and pressure match the material’s data sheet before installation.

Piston vs. Rod vs. Wiper Seals: Know the Diff

Understanding the function of each seal is critical to a successful rebuild. A piston seal stops fluid from bypassing the piston inside the cylinder barrel, ensuring maximum force is generated.

Rod seals keep the fluid inside the cylinder, preventing it from leaking onto the rod surface as it extends. The wiper seal is the “first line of defense,” tasked solely with cleaning dirt and debris off the rod before it retracts back into the cylinder.

Never confuse a rod seal for a piston seal, as their geometry is designed for fundamentally different pressures and flow directions. Replacing one with the wrong type will almost certainly result in immediate, high-pressure failure.

How to Correctly Measure for a Replacement Seal

Accuracy is non-negotiable when measuring for a replacement. Use digital calipers to determine the rod diameter, the groove diameter, and the groove width with absolute precision.

If the old seal is badly damaged, measure the groove in the housing itself rather than the degraded seal. Note the profile of the original seal, as small variations in the lip angle can be the difference between a dry cylinder and a steady drip.

When in doubt, consult the manufacturer’s service manual or use a seal identification kit. Guessing on dimensions usually results in having to disassemble the entire cylinder a second time.

Telltale Signs Your Hydraulic Seals Are Failing

The most obvious sign of failure is external leaking, often appearing as a sheen on the rod. However, internal leakage is often harder to detect and is usually indicated by a loss of lifting power or the cylinder “drifting” while under load.

Listen for unusual squealing or jerky motion during operation, which can indicate that the internal seals are worn or that the rod is no longer properly centered. Fluid temperature spikes can also signal that internal bypass is occurring, causing friction and heat build-up.

Addressing these symptoms early prevents the contamination of the entire hydraulic system. Replacing a seal is far cheaper than replacing a scored cylinder barrel or a ruined hydraulic pump.

Reliable equipment relies on a perfectly maintained hydraulic circuit, and the seal is the most frequent point of failure. By selecting the correct material and profile for the specific duty cycle, heavy-duty machines can achieve significantly longer service lives with minimal unplanned downtime.
