6 Best cable lugs for high amperage power connections

High-amperage electrical connections are just as critical to a job site as the mechanical fasteners holding down a roof. Much like choosing the wrong screw for a metal panel leads to leaks and premature uplift, using subpar cable lugs for power distribution invites resistance, heat buildup, and eventual fire hazards. Professional projects demand hardware that matches the load, regardless of whether the power is running a large HVAC unit or a heavy-duty inverter. Select the right terminal to ensure long-term system integrity.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Panduit LCC Series: The Pro’s Choice for Reliability

Panduit LCC series lugs are the industry gold standard for high-stakes electrical work. These are heavy-duty, two-hole copper lugs engineered for applications where vibration is a constant threat.

The two-hole mounting design prevents the lug from rotating on the busbar or terminal block, which is essential for heavy-gauge cables that carry significant physical weight. If a connection is subjected to the constant hum of a large industrial generator or commercial compressor, this locking mechanism provides peace of mind.

These lugs also feature a flared entry barrel, which makes inserting fine-stranded cable much faster. Time saved on a ladder or in a tight panel enclosure is money saved on the labor budget.

Ancor Marine Grade Lugs: Best for Corrosive Areas

When a project is located near a coastline or in a high-humidity environment, oxidation becomes the primary enemy. Ancor Marine Grade lugs utilize tinned copper to resist the harsh, salty air that ruins standard electrical connections within a single season.

The tin plating acts as a sacrificial barrier against corrosion, preventing the green, chalky buildup that leads to increased resistance. If the electrical box is situated in an area prone to condensation or salt spray, using anything less than tinned terminals is a recipe for maintenance callbacks.

Beyond the plating, these lugs feature a seamless barrel design that ensures a consistent crimp every time. This creates a gas-tight seal that locks out moisture and keeps the copper strands pristine for years.

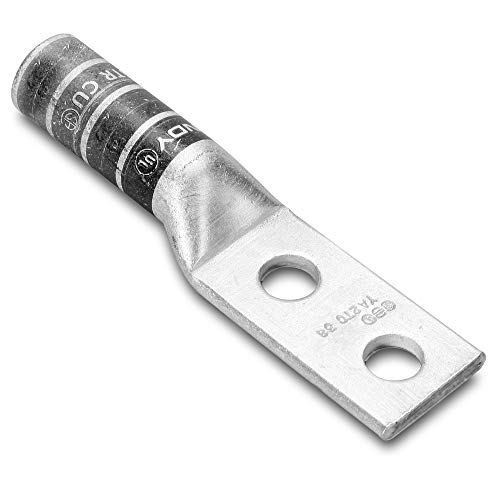

Burndy YA Series: Top Pick for Heavy Industrial Use

Burndy is a name synonymous with utility-grade performance. The YA series is built for the kind of heavy industrial load-bearing that standard hardware simply cannot handle over the long term.

These lugs are marked with die codes that match perfectly with Burndy crimping systems, ensuring a precise, code-compliant connection. When installing heavy service entrance conductors where failure is not an option, having that level of standardized precision provides structural assurance.

These are often thicker and more robust than consumer-grade lugs. While they require a more significant investment, they are the preferred choice for permanent, high-amperage commercial installations that must pass rigorous inspections.

TEMCo Heavy Duty Lugs: Great Value for DIY Projects

For the informed homeowner or the contractor working on a smaller scale, TEMCo lugs provide an excellent balance between cost and performance. They are made from pure, conductive copper, ensuring they meet the necessary amperage requirements without the high price tag of industrial-specific brands.

These lugs feature a closed-end design that keeps out environmental elements like dust and oil. While they may lack the high-end certification stamps of a Burndy or Panduit, they are more than sufficient for solar installs, battery banks, or general workshop upgrades.

The thick wall construction provides enough material for a solid crimp without the metal cracking under pressure. They are a reliable solution for anyone who needs to finish a job without breaking the project’s bottom line.

T-Spec V8 Lugs: Best Option for High-End 12V Setups

T-Spec lugs are designed specifically for the demanding world of high-wattage 12V audio and power systems. These units often come with a satin nickel finish, which looks sharp, but their real value lies in the heavy-duty construction designed to minimize voltage drop.

In a system where every millivolt counts—like a high-end inverter setup or an off-grid cabin power system—these lugs ensure that current flows efficiently. The barrel design is optimized for the soft, multi-strand wire commonly used in mobile power applications.

They are rugged enough to handle the frequent temperature fluctuations found in non-climate-controlled environments. If the setup involves tight spaces and high-current demands, these lugs fit the bill perfectly.

Selterm UL Listed Lugs: The Safe Certified Choice

Certification is the final word when building inspectors walk onto a job site. Selterm lugs carry the UL (Underwriters Laboratories) listing, which verifies they have been tested to specific safety and performance standards.

Using UL-listed components simplifies the approval process significantly. It tells the inspector that the connection point is not the weak link in the electrical chain, and it adheres to the National Electrical Code requirements for conductor termination.

Beyond the certification, the quality control on these pieces is consistent. You won’t find burrs or inconsistent wall thicknesses that cause headaches during the crimping phase.

Crimp or Solder? How to Secure Your High-Amp Lugs

The debate between crimping and soldering is as old as the trade itself. While soldering offers a great connection, it is susceptible to “wicking” where the solder runs up the wire, making it brittle and prone to snapping under vibration.

Mechanical crimping is the preferred industry standard for high-amperage power. A high-quality hex crimp creates a cold-weld bond between the wire and the lug, essentially fusing them into a single, solid mass.

Solder is an acceptable secondary method, but only if the installer possesses the skill to heat the lug without burning the wire insulation. In 99% of professional scenarios, a proper mechanical crimp is stronger, safer, and faster.

Your Crimp Tool Matters: Hammer vs. Hydraulic

The tool used to secure the lug is just as important as the lug itself. Hammer crimpers are common, but they often produce inconsistent results that leave loose strands inside the barrel.

A hydraulic crimper is the only way to ensure a uniform hex-shaped connection that maximizes surface area contact. This is vital for high-amperage flow; if the wire is loose inside the lug, it creates resistance, which creates heat, which eventually melts the insulation.

Invest in a hydraulic tool if the project involves more than two or three connections. It turns a manual struggle into a precise, professional operation that produces a bulletproof connection every time.

Copper vs. Aluminum Lugs: What’s the Difference?

Copper and aluminum are not interchangeable when it comes to power connections. Copper lugs are the gold standard for conductivity, but they can experience galvanic corrosion if they touch aluminum wire without an anti-oxidant joint compound.

Aluminum lugs are often used for massive service-entry cables due to cost, but they require specific care. Always use an oxide-inhibiting paste to prevent the buildup of non-conductive layers between the lug and the wire.

Match the lug material to the wire material to avoid chemical reactions. If the system specs call for copper, do not try to save money by substituting aluminum, as the expansion and contraction rates differ, eventually leading to loose connections.

Sizing Lugs to Wire Gauge for a Rock-Solid Link

An undersized lug is an immediate point of failure. The lug must match the cable gauge precisely to ensure a tight, low-resistance fit that can handle the full rated amperage of the circuit.

Always consult an AWG (American Wire Gauge) chart to verify the ampacity rating before purchasing. If the cable is 2/0, the lug must be rated for 2/0; trying to “make it work” with a 1/0 or 3/0 lug will lead to hot spots and potential electrical arcs.

Consider the physical dimensions of the mounting hole as well. A lug that fits the wire but has a hole too small for the stud will force a field modification, which often compromises the structural integrity of the metal.

Properly executed high-amperage connections are the foundation of a safe, efficient electrical system. By matching the right lug to the environmental conditions and utilizing the correct crimping tools, the risk of heat-related failures drops significantly. Whether the job is industrial-grade or a DIY power upgrade, prioritize quality materials and code-compliant installation methods to guarantee a connection that lasts for the long haul.
