6 Best Isolation Valves for Safe Gauge Maintenance

Reliable gauge maintenance starts with the ability to isolate instruments without shutting down an entire system. Whether managing hydraulic fluid pressures on heavy machinery or monitoring water lines in a commercial facility, the right valve acts as the critical gatekeeper. Failing to choose the correct hardware leads to unnecessary downtime, dangerous fluid discharge, or damaged instrumentation. This guide breaks down the industry’s most dependable isolation valves to ensure every job is both safe and efficient.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

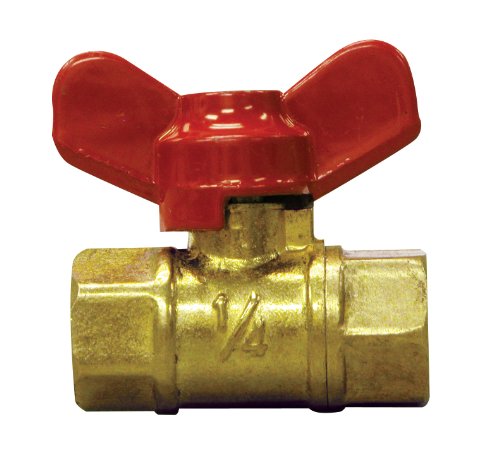

Winters BVI Ball Valve: Simple Reliable Isolation

The Winters BVI is the workhorse of the industry for straightforward shut-off needs. Its quarter-turn handle provides immediate visual confirmation of whether the flow is open or closed, which is vital when working on a busy job site.

The full-port design ensures there is no restriction to the media, preventing debris buildup that often plagues smaller, restricted-port valves. This is especially important in fluid lines where particulate matter might otherwise clog the sensor.

While the BVI lacks advanced venting features, its simplicity makes it nearly foolproof for basic gauge isolation. If the task is just to swap out a standard pressure gauge on a water pump, this valve is the most cost-effective solution available.

Ashcroft 1084 3-Way Valve: For Test and Venting

When calibration is a frequent requirement, the Ashcroft 1084 becomes an essential tool. This three-way configuration allows for seamless switching between normal operation and the test gauge port.

The real advantage lies in its ability to vent the instrument side to the atmosphere while isolating the process pressure. This eliminates the need for a separate bleed valve, saving time and reducing the number of potential leak points in a system.

Precision matters here. The 1084 is built for durability under repeat cycling, making it a staple for maintenance teams that service gauges on a monthly or quarterly schedule.

Swagelok 1RS4 Needle Valve: For High-Pressure Jobs

High-pressure systems demand a different level of control and sealing integrity. The Swagelok 1RS4 needle valve offers a fine-threaded stem that allows for precise throttling of flow, protecting sensitive gauges from sudden pressure spikes.

The metal-to-metal seal provides a level of durability that soft-seat valves simply cannot match under extreme thermal conditions. This is the valve to spec when the process involves high-temperature fluids or vibrating equipment that would vibrate a lesser valve loose.

Because of the slow-opening nature of a needle valve, the risk of “water hammer” or pressure shock is significantly reduced. It is the gold standard for heavy-duty industrial gauge setups where safety is the highest priority.

Parker HNV Block & Bleed: Ultimate Safety Standard

Safety is not optional in volatile chemical or high-pressure gas environments. The Parker HNV block and bleed valve effectively traps the process line while simultaneously venting the trapped pressure in the gauge line.

This creates a “double-block” effect that ensures no residual pressure reaches the technician during gauge removal. By rotating the handle to the vent position, any hazardous material is safely directed away from the workspace.

For any installation involving caustic, acidic, or high-pressure gas media, this valve is the only responsible choice. It is a vital piece of gear for keeping staff safe during routine maintenance cycles.

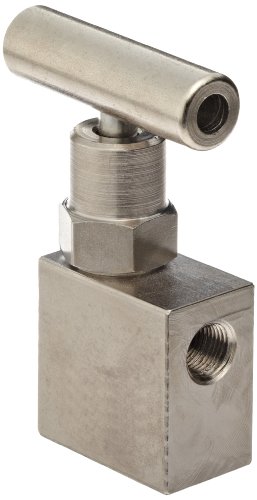

Noshok 100 Series Mini Valve: Best for Tight Spaces

Roofing equipment, HVAC skids, and hydraulic power units often suffer from cramped quarters. The Noshok 100 Series mini valve is designed specifically to fit into tight footprints where a standard ball valve handle would strike surrounding components.

Despite the compact size, these valves are rugged and perform remarkably well under standard operating pressures. They offer the same quarter-turn convenience as larger valves but in a form factor that fits comfortably in a crowded junction box.

Keep these on the truck for quick repairs in confined cabinets. They eliminate the frustration of forcing tools into spaces that were never designed for easy service access.

John Guest PPSV041212W: Fastest Push-Fit Option

For non-industrial, low-pressure plumbing or pneumatic control lines, traditional threaded valves can be a headache. The John Guest push-fit system allows for an airtight, leak-free connection without the need for pipe dope or specialized wrenches.

Installation is instantaneous; simply push the tubing in, and the internal collet secures it. While this is not rated for high-pressure hydraulics, it is perfect for instrument air lines or water monitoring systems where speed of installation is the primary project driver.

Avoid using these in high-vibration zones or extreme temperature environments. When applied correctly in low-stress scenarios, they drastically reduce the time spent on routine system upgrades.

Ball vs. Needle vs. Multi-Port: Picking Your Valve

The selection between valve types is dictated by the frequency of maintenance and the nature of the medium. Ball valves are ideal for quick on-off operations, needle valves for precise control, and multi-port valves for complex testing requirements.

If the system requires frequent gauge testing, always move toward a multi-port or bleed-equipped valve. The time saved during calibration and the reduction in thread-wear on the gauge connection justify the higher upfront cost.

Remember that simplicity generally equals reliability. If the application is a basic, static pressure reading in a low-risk environment, a simple ball valve will outlast a complex multi-port valve every time.

Brass, Steel, or PVC: Match Valve to Your System

Material compatibility is the most common point of failure for gauge installations. Brass is excellent for standard water and air systems but will corrode rapidly if exposed to certain chemical refrigerants or salt-heavy environments.

Stainless steel is the preferred choice for aggressive media and high-pressure steam. It is expensive but provides the structural integrity required to prevent catastrophic failure under heat or chemical stress.

PVC or specialized polymers are best suited for corrosive chemical drainage where metal would dissolve. Ensure that the valve material is rated for both the pressure of the system and the chemical composition of the fluid inside.

Understanding Block and Bleed for Maximum Safety

A block and bleed valve is a safety-critical device that provides a complete disconnect from the pressure source. “Blocking” isolates the upstream pressure, while “bleeding” releases the pressure trapped in the gauge.

Without the bleed function, residual pressure remains in the instrument line even after the block valve is closed. This can cause injury or chemical burns when a technician loosens the gauge, thinking the system is depressurized.

Always verify the pressure rating of the bleed port before installation. In high-pressure lines, ensure the vent port is routed to a safe recovery container or a safe discharge zone away from the technician.

How to Correctly Install a Gauge Isolation Valve

Proper installation begins with a clean, de-burred pipe end. Use Teflon tape or appropriate thread sealant sparingly, ensuring that no excess tape enters the flow path where it could clog the small orifice of a gauge or valve.

Always use two wrenches when tightening fittings—one to hold the valve and one to turn the pipe. This prevents torsional stress from cracking the valve body or distorting the internal seating surfaces.

Finally, check for leaks while the system is at full operating pressure before final sign-off. A small leak might seem minor during the initial setup, but under vibration or cycling, it will almost certainly escalate into a larger failure.

Selecting the right isolation valve transforms gauge maintenance from a hazardous chore into a routine, safe task. By matching the valve type to the system’s pressure, temperature, and media requirements, you ensure the longevity of your equipment and the safety of your crew. Investing in quality hardware upfront will always pay for itself in reduced maintenance time and the prevention of costly, avoidable accidents.
