7 Best Conduit Straps For Heavy Gauge Wiring Professionals Use

Heavy gauge wiring demands more than just basic hardware to stay secure under load. When running thick conductors across industrial rafters or through external conduit runs, the strap acts as the primary defense against vibration and thermal expansion. Choosing the wrong mounting hardware leads to sagging lines, connection stress, and inevitable callbacks. Rely on these professional-grade selections to ensure every conduit run stays locked in place for the long haul.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

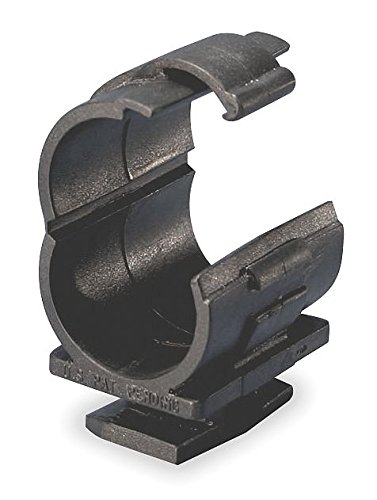

Caddy MAC2S Strut Strap: Top Pick for Pro Jobs

[lasso id=”39533″]

The Caddy MAC2S is the industry benchmark for mounting rigid conduit directly to strut channels. Its design simplifies the installation process by allowing a single-handed attachment, which is a lifesaver when working on a ladder or in tight overhead spaces.

The integrated bolt and nut mechanism ensures a tight grip that prevents the conduit from shifting due to mechanical vibration. It eliminates the need for loose hardware that often ends up rolling off a roof deck or lost in the dirt.

Because these straps are engineered specifically for strut systems, they provide consistent, uniform tension. They are the ideal choice when a project requires a clean, industrial look with zero tolerance for movement.

Minerallac 1H Series: The Classic One-Hole Strap

Minerallac 1H straps are a staple in almost every electrical service truck for a reason. These one-hole straps feature a “heavy-duty” profile that resists bending under the weight of large-gauge conductors, unlike cheaper stamped-steel alternatives.

The distinct rib design adds structural rigidity to the metal, significantly increasing the load-bearing capacity. When installing parallel runs on commercial masonry walls, the narrow profile of the 1H allows for tight spacing without crowding the workspace.

Keep in mind that while one-hole straps offer faster installation, they are best suited for smaller conduit diameters or areas where lateral stress is minimal. Over-tightening can sometimes cause the strap to pivot, so ensure the substrate is solid before securing the fastener.

Sigma Electric 41335: Best Value Two-Hole Strap

[lasso id=”39534″]

Sigma Electric 41335 straps are the workhorse for high-volume, cost-conscious jobs where performance cannot be sacrificed. These two-hole steel straps provide balanced support, distributing the weight of the conduit across two separate mounting points.

The zinc-plated finish offers sufficient corrosion resistance for standard interior industrial applications. They sit flush against the mounting surface, creating a secure, low-profile footprint that is less likely to catch on passing equipment or personnel.

While they are priced for budget-conscious projects, they do not compromise on the gauge of the steel. They remain an excellent choice for keeping long horizontal runs of pipe perfectly level and pinned tight against a wall or beam.

O-Z/Gedney 4Q Series: Ultimate Malleable Iron Pick

When a project calls for extreme durability in harsh environments, O-Z/Gedney 4Q series straps are the preferred choice. Malleable iron is far more resistant to mechanical shock and vibration than standard stamped steel, making it ideal for heavy machinery rooms.

These straps are built for longevity, often outlasting the conduit itself. The iron construction prevents the “spring-back” effect found in thinner steel, ensuring that the clamp force remains constant even if the mounting surface expands or contracts.

Use these in high-traffic areas or environments prone to accidental impacts, such as loading docks or warehouse perimeters. They are significantly heavier, so always ensure the substrate—whether concrete or structural steel—can support the increased weight of the hardware.

Garvin Industries GSH Series: Heavy-Duty Champion

[lasso id=”39535″]

Garvin Industries designs the GSH series with a clear focus on heavy-duty, high-vibration applications. The thickness of the steel used in this series sets it apart, offering a massive amount of surface area to cradle the conduit securely.

The design features elongated holes, which allow for slight adjustments during the installation process. This flexibility is critical when aligning multiple conduit runs, as it permits fine-tuning the placement before the final torque is applied.

They are the top recommendation for securing heavy gauge wiring in high-vibration zones, such as near HVAC compressors or motor housings. Relying on the GSH series means the installation will hold firm regardless of the mechanical stress placed on the line.

Appleton H-Series Steel Strap: Industrial Standard

Appleton H-Series straps represent the gold standard for large-scale electrical infrastructure. They are precision-engineered to meet strict industrial specifications, ensuring that every strap performs consistently across thousands of feet of pipe.

The steel is treated with a robust finish to inhibit rust, making them highly effective for semi-exposed outdoor locations. They are designed to accommodate the specific outer diameters of rigid metal conduit (RMC) with zero play or chatter.

[lasso id=”34831″]

When the job requires strict adherence to commercial electrical codes and engineering specs, the Appleton H-Series is rarely questioned by inspectors. It is a reliable, professional-grade solution that provides predictable performance in challenging environments.

Topaz 265 Two-Hole Strap: Tough Malleable Iron

[lasso id=”36960″]

The Topaz 265 two-hole strap is a standout for its rugged, malleable iron composition. It provides a level of rigidity that stamped steel simply cannot match, providing a rock-solid mounting base for heavy gauge conduit runs.

The reinforced eyelets prevent the screw heads from pulling through the strap under high-tension loads. This design choice is vital when securing conduit that is subject to thermal expansion, as it prevents the hardware from deforming over time.

Because these are cast components, they are slightly thicker and wider than their steel counterparts. Ensure you have the appropriate clearance in your layout to account for the wider footprint of these heavy-duty clamps.

One-Hole vs. Two-Hole Straps: A Pro’s Guide

One-hole straps offer speed and convenience. They are excellent for vertical runs or where space is limited, allowing for quick adjustments to the pipe position.

Two-hole straps are superior for heavy-duty applications. By pinning the conduit down at two points, they eliminate the tendency for the pipe to “walk” or swivel under its own weight or external stress.

Use one-hole straps for lightweight, smaller gauge runs where accessibility is the priority. Reserve two-hole straps for high-weight, large-diameter, or exterior conduit runs where structural stability is the absolute requirement.

Steel vs. Malleable Iron: Choosing Your Material

Stamped steel is the standard for most interior electrical work. It is lightweight, cost-effective, and easy to work with on a variety of surfaces, ranging from wood framing to light-gauge metal studs.

Malleable iron is the professional’s choice for extreme conditions. It possesses superior impact resistance and maintains its shape under heavy mechanical stress, preventing the strap from loosening over time due to fatigue.

If the job site involves high humidity, chemical exposure, or extreme vibration, skip the stamped steel. Invest in the strength of malleable iron to avoid the liability of failing hardware in sensitive industrial areas.

Conduit Spacing Rules: Don’t Fail an Inspection

National Electrical Code (NEC) dictates specific distances for conduit supports to prevent sagging and strain on terminal connections. Failing to adhere to these intervals is the fastest way to get a project red-tagged by an inspector.

Generally, rigid metal conduit requires support within 3 feet of each box and at intervals not exceeding 10 feet. Always check the specific requirements for your conduit type and local amendments, as seismic zones often demand tighter spacing.

Never stretch these distances to save on hardware costs. A sagging conduit run creates a “trap” for condensation in exterior runs and puts dangerous torque on the wiring connections inside the junction boxes.

Securing heavy gauge wiring requires a balance of the right material, correct spacing, and the proper strap profile for the environment. By utilizing these professional-grade options, you guarantee a code-compliant installation that resists the physical demands of any industrial or commercial setting. Never cut corners on your mounting hardware, as the stability of the conduit is the foundation for the long-term health of the entire electrical system.
