6 Best Flat Washers For Distributing Load On Wood Beams

When fastening structural members like beam-to-post connections or heavy timber ledger boards, the washer is often the unsung hero of the assembly. A fastener is only as strong as its ability to bridge the gap between steel and wood, and without the right load distribution, even the most expensive bolt will eventually pull through or crush the fibers of the beam. Selecting the wrong hardware leads to loose connections, structural sag, and potential code failures that are notoriously difficult to fix after the decking is down. This guide breaks down the best options to ensure every connection remains tight, rigid, and compliant with modern building standards.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Simpson Strong-Tie SSTB: Best for Anchor Bolts

The Simpson Strong-Tie SSTB is designed specifically for concrete-to-sill plate connections, but its application extends to heavy timber anchoring where high shear loads are present. These washers are engineered to work in tandem with specialized anchor bolts to prevent the nut from sinking into the wood under heavy wind or seismic stress.

These washers feature a distinct design that centers the bolt perfectly, ensuring an even distribution of pressure across the contact area. When dealing with pressure-treated lumber, which is often damp and softer than kiln-dried timber, this precision prevents the premature “sinking” that leaves a connection feeling spongy after the wood dries out and shrinks.

For the installer, the primary advantage is reliability in code-regulated scenarios. They are manufactured to meet the specific requirements of the International Residential Code (IRC), removing the guesswork during framing inspections. Always pair these with the manufacturer-recommended bolt grade to ensure the assembly performs as a single, unified system.

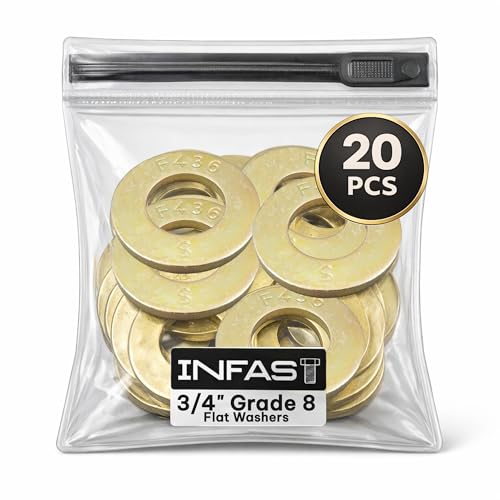

ASTM F436 Hardened Washer: Top Structural Pick

The ASTM F436 hardened washer is the gold standard for structural steel connections. Unlike standard off-the-shelf washers that bend or distort under high torque, these are heat-treated to resist deformation. When bolting heavy-duty timber beams, there is no substitute for the rigidity these provide.

Standard washers are often too thin to handle the clamping force required to pull two massive beams flush against each other. The F436 washer provides the necessary thickness to distribute the load across a wider surface area of the wood, effectively mitigating the risk of the bolt head or nut crushing the grain.

Use these in any scenario where structural integrity is the primary concern, such as connecting support columns or main load-bearing rafters. Because they are harder than standard steel, they won’t “cup” or deform when you hit them with an impact driver or torque wrench, ensuring the nut stays tight over the life of the structure.

USS Hot-Dip Galvanized: The Go-To for Treated Wood

USS (United States Standard) washers are thicker and have a larger outside diameter than standard SAE washers, making them ideal for general-purpose construction. When selecting them for outdoor projects, opt for hot-dip galvanized versions to combat the corrosive nature of modern pressure-treated wood.

The chemical treatments used in today’s pressure-treated lumber are highly corrosive to bare steel and even light-duty zinc-plated hardware. Hot-dip galvanization provides a heavy, sacrificial layer of zinc that reacts with the elements before the steel base, significantly extending the life of the connection in outdoor conditions.

These are the workhorses of the job site. They offer a wider footprint than basic washers, which is vital when you are fastening lumber that may be prone to checking or splitting. While they lack the hardened rating of F436 washers, they are perfect for deck ledger boards, perimeter framing, and secondary load-bearing connections.

Square Plate Washer: For Maximum Timber Bearing

When the load requirement exceeds what a circular washer can handle, move to a square plate washer. By offering a significantly larger surface area, these plates spread the force over a much wider section of the beam, which is critical when fastening softwoods like cedar or pine.

The square shape is not just for aesthetics; it provides a larger “bearing surface” that physically prevents the fastener from pulling into the wood grain. This is essential for preventing the loosening that occurs after wood cycles through seasonal moisture changes.

These plates are commonly required by engineers for seismic bracing and high-wind zones where uplift forces are substantial. If the plans call for a 2×2 or 3×3 plate, do not substitute with a standard round washer, as the connection will lose its designed capacity to resist pull-through failure.

316 Stainless Fender Washer: Best for Corrosive Areas

In coastal environments or areas with high salt spray, even hot-dip galvanized hardware can show signs of rust within a few years. 316-grade stainless steel is the professional’s choice for these environments because it offers superior resistance to chloride-induced corrosion.

Fender washers are characterized by their small inner hole and large outer diameter, making them excellent for covering oversized or damaged bolt holes in timber. While they are not intended for extreme structural shear loads, they are perfect for decorative timber framing, railings, and exterior trim.

Keep in mind that stainless steel can be prone to “galling”—where the threads seize during installation—so use a bit of anti-seize lubricant if the bolt is long. For exterior, high-visibility work, the clean, silver finish of 316 stainless is an added benefit that keeps the project looking professional for decades.

Malleable Iron Washers: Heavy-Duty Load Spreading

Malleable iron washers are heavy-duty components designed for industrial-level timber construction. These are thicker and more robust than stamped steel washers, providing an exceptional bearing surface for large-diameter carriage bolts or lag screws used in heavy beam work.

Their construction allows them to withstand immense clamping pressure without flattening or warping. This makes them the ideal choice for heavy-duty timber frame projects, such as barns, pergolas, or massive porch header assemblies where the wood is likely to undergo significant expansion and contraction.

When installing these, the sheer size often requires a counter-bored hole if you want the nut to sit flush with the surface of the timber. While they require more effort to spec and install, they provide a level of long-term structural security that stamped washers simply cannot match.

USS vs. F436 vs. SAE: What’s the Difference?

Understanding the nomenclature is vital for picking the right hardware for the task at hand. SAE (Society of Automotive Engineers) washers are generally smaller and thinner, designed for automotive applications where space is limited and loads are mechanical rather than structural.

USS washers are the standard for general construction; they feature a larger outside diameter and thicker gauge than SAE washers. They provide more coverage, which is necessary when wood fibers might be slightly soft or irregular.

F436 washers occupy the highest tier, as they are hardened to meet structural specifications. Use SAE for small projects, USS for general framing, and F436 for any connection that an engineer has calculated for specific load-bearing capacity.

Galvanized vs. Stainless: Picking Your Washer Finish

The environment dictates the finish. For interior framing in dry climates, basic zinc-plated or plain steel is usually sufficient. However, if there is any chance of moisture, step up to hot-dip galvanized hardware to prevent premature rust.

Stainless steel is the ultimate solution for high-exposure areas. Whether it is a beach-front property or a deck near a pool, stainless steel won’t bleed unsightly rust streaks onto your wood beams.

Always ensure the washer finish matches the finish of your bolt and nut. Mixing metals—such as a stainless bolt with a galvanized washer—can lead to galvanic corrosion, where one metal effectively consumes the other.

Sizing Your Washer to Prevent Wood Crushing

The size of the washer must correspond to the bearing capacity of the timber. If the bolt is tightening into soft pine or cedar, a larger washer is mandatory to prevent the nut from burying itself into the surface.

If the wood fibers are crushed during the tightening process, the connection loses its clamping force immediately. A loose connection is a weak connection, especially in structures subjected to wind or structural vibration.

When in doubt, bigger is almost always better. If the hole in the wood looks slightly oval or oversized, use a fender washer or a square plate washer to bridge the gap and restore the integrity of the connection.

When Code Requires a Plate or Bearing Washer

Building codes are often specific about the size and type of washer required for structural connections. In many regions, the code explicitly mandates the use of a 3-inch by 3-inch square plate washer for foundation-to-sill plate connections in seismic zones.

These requirements exist because standard washers simply don’t provide the “cushion” needed to keep the structure from shifting during a seismic event. Ignoring these specs is a direct path to a failed inspection and, more importantly, a compromised structure.

Always verify your local jurisdiction’s requirements before purchasing hardware. If the plans call for specific structural washers, assume they are there for a life-safety reason and do not attempt to “value-engineer” the job by swapping them for standard hardware.

Selecting the right flat washer for a wood beam connection is a small detail that yields massive returns in terms of structural longevity and safety. By matching the washer type—be it hardened F436, heavy-duty malleable iron, or corrosion-resistant stainless—to the specific requirements of the lumber and the environment, you ensure a rock-solid assembly. Never compromise on the structural integrity of your connections by choosing hardware based on convenience rather than necessity. Follow these standards, and your connections will remain tight, secure, and fully compliant for years to come.
