6 Best pipe flashings for flat roof penetrations

Flat roof penetrations are the single most common failure point on any commercial or residential low-slope project. A tiny gap or a poorly welded seam at a pipe base inevitably leads to interior water damage, rot, and expensive structural repairs. Selecting the right flashing is not just about compatibility; it is about choosing a solution that handles thermal expansion and movement without breaking the seal. Understanding the nuances between materials and installation methods ensures a system remains watertight for decades rather than just a few seasons.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

GAF EverGuard TPO Split Pipe Boot: Best for TPO

The GAF EverGuard TPO Split Pipe Boot stands out because it solves the classic “how to get the flashing over a fixed pipe” problem. Since TPO membranes require heat welding for a monolithic seal, using a split boot allows for a clean, professional application without having to disconnect plumbing or electrical lines that might be running through the penetration.

These boots come with a factory-applied adhesive tape or are designed for direct heat welding. The pre-molded shape reduces the amount of tricky detail work required at the corners, which is where most leaks originate. When heat-welding these into place, ensure the membrane is clean; any debris trapped under the boot will compromise the weld integrity.

The biggest advantage is the seamless chemical bond achieved between the boot and the roof membrane. Unlike using field-fabricated patches, a molded boot provides consistent thickness and high UV resistance. Use this when the goal is a manufacturer-warrantied system that meets strict commercial standards.

Carlisle EPDM Molded Pipe Boot: For EPDM Roofs

EPDM is legendary for its flexibility, but it requires a very specific flashing approach to remain reliable over time. The Carlisle EPDM Molded Pipe Boot is engineered specifically to accommodate the expansion and contraction cycles of rubber roofs, which can be significant in climates with wide temperature swings.

Because EPDM relies on adhesives and seam tapes rather than heat, the success of this boot depends entirely on the preparation of the surface. Always apply the manufacturer-recommended primer to both the pipe and the roof deck before setting the boot in place. Skipping the primer is the fastest way to invite a leak within the first year.

These boots are available in various sizes to match common vent pipes, making them a “plug-and-play” solution. For penetrations that don’t fit standard sizes, remember that EPDM can be field-fabricated with uncured flashing tape, though a molded boot is always superior for long-term durability.

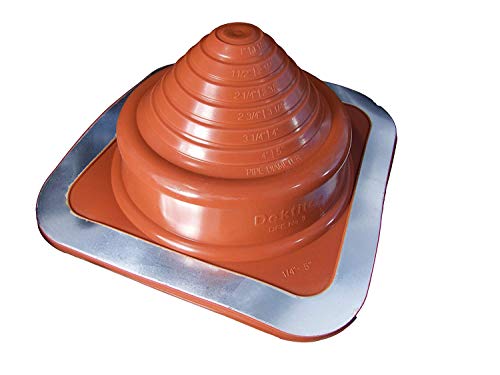

Dektite #3 Silicone Flashing: Most Versatile Boot

When dealing with metal roofing or irregular penetrations, the Dektite #3 Silicone Flashing is the gold standard for versatility. Unlike rigid plastic or EPDM boots, silicone withstands extreme high temperatures, making it the perfect choice for exhaust flues or chimney pipes that run hot.

The cone-shaped design is highly adaptable; simply cut the opening to match the specific pipe diameter on-site. Because it is flexible, the base forms easily to the ribs or corrugations of a metal roof. This eliminates the need for complex metal work and minimizes the number of exposed fasteners.

The bottom line is that Dektite simplifies a complicated job. However, verify the temperature rating of the silicone to ensure it exceeds the peak exhaust temperatures of the system it is sealing. It is a workhorse, but it needs to be installed with a high-quality sealant under the base ring to keep moisture out of the fastener holes.

Oatey Master Lead Flashing: The Traditional Choice

For traditional roofing projects where lead is still preferred, the Oatey Master Lead Flashing remains a reliable, time-tested solution. Lead is incredibly soft and malleable, allowing it to be hammered perfectly flush against the roof deck and then tucked tightly into the pipe penetration.

This material is primarily used with built-up roofs or asphalt-based systems. It does not suffer from UV degradation like some plastics, and its ability to be bent into shape makes it ideal for older roofs where pipe alignment might be slightly off-center or crooked.

The tradeoff is weight and the environmental considerations of working with lead. Ensure the pipe is properly primed and the lead is integrated into the roofing felts correctly to prevent a “wicking” effect where water runs between the lead and the pipe. It is an old-school method that requires a steady hand and a heavy-duty roofing hammer.

OMG Pitch Pocket Kit: For Awkward Penetrations

Sometimes a pipe isn’t just a pipe; it is a cluster of conduits, cables, or non-standard shapes that a standard boot simply cannot cover. This is where the OMG Pitch Pocket Kit becomes an essential tool. It creates a dam around the penetration, which is then filled with a pourable sealer to create a watertight seal.

Pitch pockets are ideal for multi-pipe penetrations or “crows-feet” setups that are otherwise impossible to flash with a rubber boot. The secret to success here is the sealer; it must be a high-performance, non-shrinkage product designed specifically for roofing applications.

These pockets require regular maintenance, as the sealer can shrink or crack over time due to building movement. Inspect them at least once a year. If the sealer is pulling away from the sides of the pocket, it is time to clean the surface and add a new layer of sealant to keep the seal tight.

Portals Plus Alumi-Flash: For Curb Mount Setups

If the penetration is a large mechanical unit or a complex curb, a standard boot is insufficient. Portals Plus Alumi-Flash provides a heavy-duty aluminum flashing solution that is meant to be integrated into the roof system with a clamping ring or a multi-course membrane finish.

These are essentially “mini-curbs” that provide a solid, vertical surface for the roofing membrane to terminate against. This is the professional way to handle large penetrations that see significant vibration or weight.

Installation is more labor-intensive than a simple rubber boot. It requires precise measuring and robust sealing at the base to ensure that water sheds away from the penetration. When properly installed, it provides a rigid, structural finish that is much more durable than any flexible boot could hope to be.

TPO EPDM or PVC: Match Flashing to Membrane

The cardinal rule of flat roofing is that the flashing must be chemically compatible with the field membrane. Using an EPDM boot on a TPO roof will result in a bond that eventually fails, as the two materials have different thermal expansion rates and chemical compositions.

• TPO/PVC: Use boots made of the same material for a thermal weld.
• EPDM: Use EPDM boots with pressure-sensitive adhesives.
• Modified Bitumen: Use metal or lead flashings with high-heat asphalt cements.

Mixing materials is an amateur move that contractors and inspectors look for immediately. When in doubt, consult the manufacturer’s technical data sheet to see if the flashing material is approved for use with your specific brand of roofing membrane.

Split vs. One-Piece Boots: Which One Do You Need?

Choosing between a split boot and a one-piece boot usually comes down to whether the pipe is “free-standing.” If you can slide a one-piece boot over the top of the pipe, always do so. It is inherently stronger because it has no seams.

If the pipe is permanently fixed, runs through an obstacle, or has a cap that cannot be removed, a split boot is the only practical choice. The critical factor is the quality of the “split” seam. Many modern split boots have a factory-applied seam that, when heat-welded or glued, becomes as strong as the rest of the material.

If you are using a split boot, pay extra attention to the seam alignment during installation. A slightly misaligned seam will create a stress point that can lead to a crack over time. When in doubt, apply an additional bead of compatible sealant over the seam as a secondary insurance policy.

Pro Installation Tips for a Watertight Seal

The secret to a long-lasting seal is not just the product; it is the substrate. Never install a flashing boot over a wrinkled or gravel-covered surface. The base of the boot must sit flat on a clean, smooth, and dry membrane.

For membranes that require heat welding, ensure the temperature of the welder is calibrated to the ambient air and the thickness of the material. A cold weld will look correct but will pull apart with minimal force. Conversely, overheating the material will thin it out and lead to early brittleness.

Finally, always use the correct fasteners if the boot design requires them. Use stainless steel fasteners with neoprene washers to prevent corrosion and water ingress at the screw head. If the design allows for it, a “termination bar” should be used to provide even pressure across the base of the flange.

Avoiding Common Pipe Flashing Installation Fails

The most frequent mistake is ignoring the “wrap” of the flashing. Many installers forget to bring the membrane up the side of the pipe before applying the boot, or they fail to properly seal the top of the boot against the pipe.

Always use a stainless steel gear clamp at the top of the pipe boot. Over time, rubber will shrink and expand, eventually creating a gap between the boot and the pipe. A high-quality gear clamp cinches the rubber tight against the pipe, ensuring that water cannot run down the side of the pipe and under the flashing.

Lastly, stop over-tightening fasteners. Over-driving a screw causes the base of the flashing to dimple or crack, creating an immediate leak point. Use a drill with an adjustable clutch and stop the moment the washer is slightly compressed.

Selecting the right pipe flashing comes down to understanding the movement of your roof and the chemistry of your materials. Whether you choose a simple TPO boot for a new commercial build or a robust silicone flashing for a metal retro-fit, the priority remains the same: create a seamless, flexible, and fully adhered transition. When you respect the nuances of the materials and take the time to prep the substrate, the roof will stay dry for decades to come.
