6 Best Steel Shafts For High Torque Transmission

Selecting the right steel shaft for heavy-duty torque transmission is much like choosing the right fasteners for a complex roof assembly. If the material cannot handle the rotational stress of a high-torque motor or a industrial-grade drive, the entire mechanical system risks catastrophic failure. This guide breaks down the industry’s most reliable steel grades to ensure power is transferred efficiently and safely. Choosing the incorrect alloy leads to twisted splines, sheared shafts, and costly downtime that no project budget can absorb.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

4340 Alloy Steel: The All-Around Workhorse

4340 alloy steel serves as the benchmark for high-strength applications, much like standard Grade 8 bolts are the reliable standby for heavy-duty structural framing. It offers an exceptional balance of toughness and fatigue resistance, making it the go-to for drive shafts in demanding conditions.

Because of its high nickel and chromium content, this steel handles significant torque without snapping under pressure. It is incredibly versatile, behaving predictably under both static loads and dynamic stress cycles.

For the contractor, this means a reliable material that performs well across a wide temperature range. It is the gold standard for shafts that need to withstand high stress without requiring exotic processing techniques.

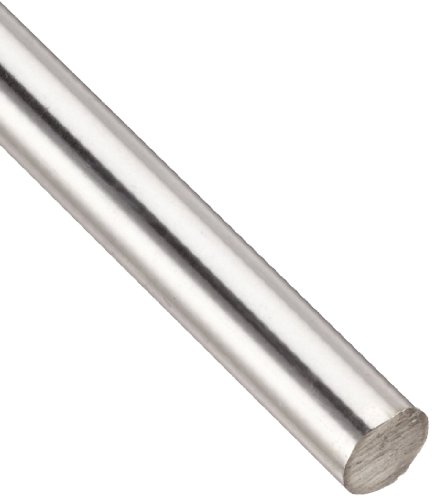

17-4 PH Stainless: For Harsh Corrosive Jobs

When working in environments with high moisture, salt spray, or chemical exposure, standard alloys will rust and eventually compromise the structural integrity of the shaft. 17-4 PH stainless steel is the preferred solution for these scenarios, mirroring how high-grade 316 stainless screws prevent unsightly streaks on expensive metal panels.

This material provides excellent corrosion resistance while maintaining impressive mechanical properties. It remains strong even when exposed to the elements, preventing the surface degradation that often leads to stress risers and fractures.

Avoid using standard carbon steel in coastal projects where the wind carries heavy salt content. The extra cost of 17-4 PH is essentially an insurance policy against premature failure caused by environmental degradation.

1045 Carbon Steel: A Solid Budget-Friendly Pick

1045 carbon steel is a medium-carbon grade that offers sufficient strength for applications where extreme performance is not the primary requirement. It serves as a cost-effective alternative for general-purpose machinery, similar to using standard zinc-plated fasteners for interior non-structural work.

While it lacks the extreme fatigue resistance of an alloy steel like 4340, it is highly machinable and widely available. It responds well to simple heat treatments if a slight boost in surface hardness is needed.

Use this material only when the torque requirements are predictable and the operating environment is controlled. For heavy-duty industrial or mission-critical systems, it is better to upgrade to a more robust alloy to avoid the risk of sudden fatigue failure.

4140 Pre-Hardened: A Machinist-Friendly Option

4140 pre-hardened steel arrives from the supplier already heat-treated to a specific hardness level, saving time and labor costs. This is comparable to buying pre-painted metal coil for roofing; you get a consistent, ready-to-use surface that performs exactly as expected without additional processing.

This material eliminates the risk of warping that often occurs during post-machining heat treatment. It strikes an excellent balance between core strength and wear resistance, making it suitable for long shafts that require precision dimensions.

It is a favorite among shop foremen because it cuts cleanly and keeps tolerances tight. If a project requires a fast turnaround time without sacrificing high-torque capability, 4140 pre-hardened is the smartest choice on the list.

8620 Case-Hardened Steel: For Max Wear Resistance

8620 steel is characterized by its soft, ductile core and a hard, wear-resistant outer surface created through carburizing. In a mechanical assembly, this provides the best of both worlds: a shaft that can absorb vibration and shocks without snapping, while the outer skin resists galling and abrasive wear.

This steel is the optimal choice for high-speed rotational applications where the shaft also serves as a bearing surface. It holds up exceptionally well against the continuous friction encountered in gearboxes and power transmission couplings.

Keep in mind that case-hardened steels require precise carburizing processes to ensure the case depth is uniform. If the outer layer is compromised during installation or machining, the performance benefits will be severely diminished.

Maraging Steel 300: For Ultimate Torque Loads

Maraging steel 300 is an ultra-high-strength material designed for aerospace and high-performance applications where failure is simply not an option. It provides superior yield strength compared to almost any other steel grade, allowing for thinner, lighter shafts that handle massive torque.

This material is expensive and difficult to source, so it should be reserved for specialized equipment where the weight-to-strength ratio is critical. It is the equivalent of specifying high-performance, weather-resistant flashing systems for complex roof geometries that undergo extreme thermal expansion and contraction.

Only spec Maraging steel when project requirements exceed the capabilities of standard 4340 or 4140 alloys. Its cost and specific heat-treating requirements make it impractical for general-duty torque transmission.

Matching Steel Grade to Your Torque Requirements

The selection process must start with a calculation of the peak torque, not just the operating torque. Many systems fail during startup or sudden load surges, which can exert force significantly higher than the standard running load.

Consider the environment, the rotational speed, and the presence of shock loads. A shaft that operates smoothly in a lab setting will behave very differently when subjected to the vibration of a heavy-duty industrial drivetrain.

Use safety factors when making a final decision. Over-engineering a shaft is almost always cheaper than replacing a failed one in the field.

Heat Treating: Unlocking a Shaft’s Full Strength

Heat treating is not a luxury; it is a fundamental step in achieving the desired mechanical properties for a steel shaft. Whether through through-hardening or surface-only processes like induction or carburizing, this step dictates the final hardness, toughness, and longevity of the component.

Improper cooling or temperature control during this process can introduce internal stresses that lead to premature warping or cracking. This is why professional shops with precise control equipment are essential for high-stress applications.

Always check the manufacturer’s documentation for heat-treatment recommendations specific to the alloy grade. Even the best steel in the world will underperform if the hardening process is flawed or skipped entirely.

Keyways and Splines: Critical Design Factors

Keyways and splines are the weakest points of any drive shaft, as they create stress concentrations that naturally want to initiate fractures. Keep these features as generous as the design allows, and ensure radii are smooth and well-blended to distribute stress evenly.

Sharp corners in a keyway act like a scribe mark on a piece of glass; they provide a clear path for a crack to propagate. Always use a proper radius at the root of the keyway to mitigate this risk.

Proper tolerances between the shaft and the mating component are equally important. A loose fit will cause hammering, which will rapidly destroy even the strongest steel alloy over time.

Why Shafts Fail: Torsional Stress vs. Fatigue

Torsional stress refers to the direct twisting force applied to the shaft, while fatigue is the cumulative damage caused by repeated loading and unloading cycles. Most failures occur because of fatigue, where micro-cracks grow gradually until the shaft finally shears under a load it should have been able to handle.

Regular maintenance and vibration analysis are the best ways to catch fatigue before it leads to a catastrophic break. If a system starts to run louder or with more vibration than usual, inspect the drive components immediately.

Treat these shafts like any critical infrastructure component on a job site. Routine inspection and understanding the limitations of the material prevent the most expensive types of equipment failure.

Understanding these material nuances separates a reliable assembly from one destined for the scrap heap. Always prioritize the specific demands of the environment and the mechanical load over the sticker price, as the cost of failure far outweighs the initial investment in higher-grade steel.
