6 Best Bronze Bushings For Low Speed Rotations To Use

Choosing the right bushing for low-speed, high-load machinery is much like selecting the correct fastener for a specific roof deck. Just as an incompatible screw can corrode a metal panel or fail to hold in a compromised substrate, the wrong bushing will lead to premature equipment failure. Relying on trial and error in construction equipment repair is an expensive way to learn. Precision, material compatibility, and load management are the factors that keep the job moving and the maintenance costs down.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Bunting SAE 841 Sintered Bronze: Best All-Purpose

Sintered bronze is the industry standard for general-purpose machinery where consistent, self-lubricating performance is required. These bushings are created by compressing bronze powder under intense heat, resulting in a porous structure that acts like a sponge for oil.

When working on equipment like sheet metal brakes or manual lift systems, SAE 841 provides a reliable, low-friction surface. Because the material is infused with lubricant, it excels in scenarios where regular maintenance intervals are difficult to hit.

Avoid using these in high-impact or shock-loading situations. They are built for consistent, low-speed rotation, not for heavy-duty pounding or abrasive environments where dirt can clog the pores.

C932 (SAE 660) Bearing Bronze: For Heavier Loads

For structural applications that experience higher pressures and oscillating motions, C932 is the preferred upgrade over sintered alternatives. This is a cast bronze alloy, meaning it lacks the porosity of sintered materials but makes up for it in raw compressive strength.

If the equipment involves pivoting heavy steel components or gear systems that see significant mechanical stress, SAE 660 handles the load without deforming. It requires a more rigorous lubrication schedule since it cannot hold oil internally like the 841 series.

Treat this as the structural backbone for bushings. It is the material of choice when failure could lead to binding in a critical, high-load pivot point.

Boston Gear FB Series Flanged Bushing: Top Pick

The inclusion of a flange is often the deciding factor in structural stability. The Boston Gear FB series offers that shoulder, which prevents the bushing from “walking” out of the housing during operation or heavy vibration.

These are exceptionally useful in linkages that move back and forth under tension. By locking the bushing into a fixed position against the housing face, it ensures the alignment stays true over years of service.

Standardizing on flanged options saves time during installation and prevents catastrophic shifting. It is a simple mechanical safeguard that prevents the need for supplemental retainers or glue.

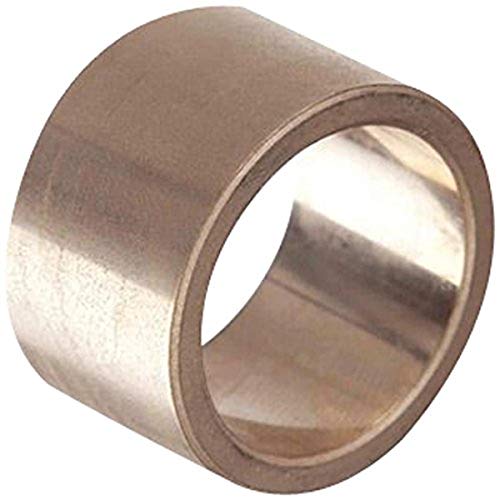

Isostatic BP Series Sleeve Bearings: High Value

Isostatic BP series bushings offer a balanced performance profile for those looking to outfit an entire machine without blowing the budget. These are precision-manufactured sintered bronze parts that meet SAE 841 standards consistently.

Their value lies in the consistency of the sizing and the quality of the oil impregnation. For general facility maintenance or replacing bushings in older tools that don’t see daily production-line use, these are the reliable go-to.

They represent a practical middle ground. Don’t overspend on exotic alloys when the BP series provides exactly the longevity the application demands.

C863 Manganese Bronze w/ Graphite: Oil-Free Pick

Sometimes, traditional oil lubrication is a liability. In dusty, high-heat environments like an on-site metal fabrication shop, oil only serves to collect grit and turn it into grinding paste.

C863 Manganese Bronze features embedded graphite plugs that provide permanent, dry lubrication. This is the ultimate solution for high-load, low-speed rotations where the bushing must survive without any external grease or oil application.

It is expensive and harder to machine, but it solves the problem of “set it and forget it” maintenance. If the machinery is tucked away in a corner of the site where maintenance is ignored, use C863 to prevent the system from seizing.

AMPCO 18 Alloy Bushings: Corrosion Resistant Choice

When work takes place in coastal or high-moisture environments, standard bronze can suffer from de-aluminization or surface degradation. AMPCO 18 is an aluminum-bronze alloy engineered for superior corrosion resistance and high strength.

This is the heavy hitter for extreme environments. It handles extreme loads while resisting the elements that would eat through a standard SAE 841 bushing in months.

Spec this when the equipment sits on an exterior site or in a facility with high humidity. It is an investment in durability that pays for itself by preventing rust-induced seizure.

Sintered (SAE 841) vs. Cast (SAE 660) Bronze

Sintered bronze is essentially a porous metal that breathes oil. It is ideal for light to medium-duty applications where the rotation is slow and consistent.

Cast bronze is a solid, dense structure. It is designed for high-pressure, heavy-load, and impact-intensive environments where a porous material would simply crush under the weight.

Matching the right type to the load is non-negotiable. Sintered = Self-Lubricating; Cast = Load-Bearing. Choose based on the mechanical force, not the ease of installation.

Press-Fit vs. Slip-Fit: How to Install Bushings

The installation method dictates how the bushing performs under stress. A press-fit requires a slight interference with the housing to ensure the bushing stays stationary while the shaft rotates inside.

A slip-fit allows for easier removal but requires a set screw or retaining compound to ensure the bushing doesn’t rotate within the bore. If the bushing rotates against the housing instead of the shaft, the housing will eventually be destroyed.

Always check the manufacturer’s tolerance specifications. A “press” that is too tight can collapse the bushing diameter, causing the shaft to bind immediately upon assembly.

When and How to Re-Lubricate Your Bronze Bushings

Sintered bushings are often marketed as “maintenance-free,” but that is a half-truth. They hold a finite amount of oil; in high-load cycles, that oil eventually migrates away from the contact surface.

When re-lubricating, use a compatible oil that matches the viscosity of the original impregnation. Never mix grease and oil unless specified, as grease can clog the pores of a sintered bushing, effectively ruining its self-lubricating function.

For cast bronze, the schedule is simpler. If the bushing has a grease groove, keep it topped off until fresh grease purges from the edges. That purge is the signal that the old, contaminated lubricant has been replaced.

Bushing vs. Ball Bearing: Know When to Upgrade

Ball bearings are designed for high-speed, low-friction efficiency. If the application involves high RPMs, a ball bearing is the only choice to keep heat and resistance in check.

Bronze bushings, however, reign supreme in low-speed, high-load, or oscillating conditions. A ball bearing in a slow-oscillation setup will often fail due to “brinelling,” where the balls create divots in the race because they aren’t spinning enough to maintain a film of lubricant.

If the motion is slow and heavy, stick with bronze. Use ball bearings when the rotation is continuous and fast. Understanding this distinction prevents the frustration of replacing failing bearings on a project that should have used a robust bronze sleeve.

Choosing the right bushing requires an honest assessment of the load, the environment, and the maintenance reality of the specific project. While a high-end alloy might look good on paper, the best choice is always the one that matches the mechanical duty cycle without introducing unnecessary complexity. Proper selection and correct installation prevent equipment downtime and ensure that the tools remain as reliable as the work performed.
