6 Best Pressure Gauges For Water System Monitoring
Monitor your plumbing efficiency with our expert review of the 6 best pressure gauges for water system monitoring. Upgrade your equipment and shop the list today.
Proper water pressure management is as critical to a building’s longevity as proper flashing is to a roof. Unchecked pressure fluctuations lead to pipe fatigue, pinhole leaks, and premature failure of water heaters and appliance valves. Monitoring these systems requires reliable hardware that can withstand the rigors of the mechanical room. Choosing the right gauge turns a hidden system into an observable one, preventing costly interior water damage before it begins.
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Winters PFQ Series: The All-Around Workhorse
The Winters PFQ series is a staple for contractors who need a reliable, stainless-steel solution that doesn’t require constant replacement. Its liquid-filled design dampens the needle movement caused by rapid pressure spikes or pump cycling, ensuring an accurate reading even in high-demand environments.
This gauge is particularly effective in commercial mechanical rooms or multi-unit residential setups where vibration from large booster pumps is common. The stainless-steel case provides excellent corrosion resistance, which is vital when installing in damp basements or crawl spaces where moisture can quickly degrade cheaper alternatives.
The bottom line is that the PFQ series strikes a balance between durability and price point. It performs consistently in harsh conditions, making it a safe, set-it-and-forget-it choice for routine monitoring.
WIKA 111.10 Standard Gauge: Best for the Budget
When multiple gauges are required across a large facility or a sprawling manifold system, the WIKA 111.10 is the go-to utility gauge. It is a dry gauge built for basic, non-corrosive media applications where budget is the primary driver.
This model is ideal for secondary monitoring points where high-precision tracking is less important than simple visual confirmation. It is lightweight and easy to mount on residential water filtration systems or irrigation lines where extreme vibration isn’t a constant concern.
While it lacks the heavy-duty dampening of liquid-filled models, the 111.10 provides clear, readable data for standard plumbing diagnostics. It is an honest, utilitarian tool that does exactly what the label suggests without adding unnecessary overhead costs.

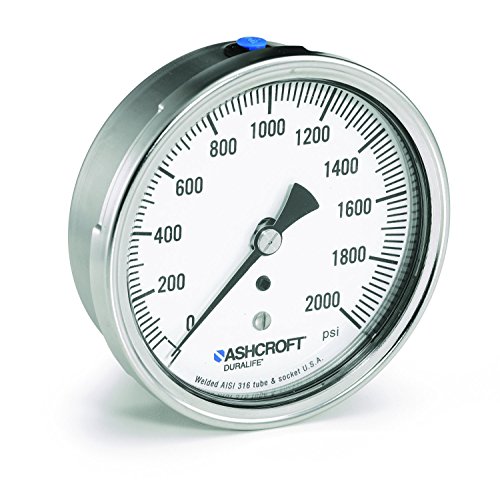

Ashcroft 1009 Duralife Gauge: Built to Last
The Ashcroft 1009 Duralife is designed for the professional who treats equipment with respect and expects it to survive the life of the installation. Its “Plus! Performance” option significantly reduces pointer flutter and wear, extending the service life far beyond standard off-the-shelf options.
This gauge is the preferred choice for high-pressure systems where reliability is non-negotiable. Its robust construction resists thermal expansion issues, making it highly effective in boiler rooms or solar thermal loops where temperatures fluctuate wildly throughout the day.
Investing in an Ashcroft 1009 means avoiding the frustration of inaccurate, jittery readings after only a few months of service. It is a premium tool built for those who prioritize long-term system stability over initial cost savings.
Watts ET50C Test Gauge Kit: For Pro Diagnostics
Every serious contractor should have the Watts ET50C kit in their truck for diagnostic calls. Unlike permanently mounted gauges, this unit is designed to be threaded onto a hose bib or drain valve for temporary, high-accuracy pressure testing.
The inclusion of a “lazy hand”—a secondary needle that marks the highest pressure reached—is the standout feature here. This allows the technician to confirm if a system is experiencing dangerous pressure spikes, often known as thermal expansion, even if the technician isn’t present when they occur.
This kit is an indispensable tool for troubleshooting homeowner complaints about leaking toilets or failing pressure relief valves. It provides concrete evidence of system stress, moving the conversation from speculation to proven mechanical data.
Measureman Oil Filled Gauge: Best for Vibration
Vibration is the silent killer of gauge internals, stripping gears and causing needles to fail prematurely. The Measureman oil-filled gauge addresses this by encasing the internal components in glycerin, which acts as a shock absorber.
This model is a perfect fit for installations near well pumps or sump systems where continuous cycles of starting and stopping create high-frequency vibration. The liquid fill also prevents internal corrosion, which is a major benefit in humid or coastal climates.
While slightly heavier than dry gauges, the dampening effect provided by the oil is significant. For any application where the gauge is mounted directly to piping near an active pump, this is the superior choice for maintaining long-term accuracy.
Pro-Sense DPG1 Digital Gauge: For Precision Work
For systems that require strict pressure compliance or where exact settings are critical, digital gauges like the Pro-Sense DPG1 offer unparalleled readability. There is no guessing with a needle; the display provides a precise, unambiguous number.
Digital gauges excel in fine-tuning pressure-reducing valves (PRVs) or monitoring gas-charged expansion tanks. The ability to switch between units of measure and the integrated backlight makes this an invaluable asset when working in dark mechanical spaces or tight closets.
However, keep in mind that these require battery power, which introduces a point of failure that mechanical gauges do not have. Keep a spare set of batteries on hand and use this for precision settings rather than as a permanent, unattended monitor.
Dry vs. Liquid-Filled Gauges: What to Choose
The choice between dry and liquid-filled boils down to the environment and the pulsation of the flow. Dry gauges are simpler and cheaper, perfect for static, low-vibration environments where the gauge will only be checked occasionally.
Liquid-filled gauges utilize glycerin or silicone to lubricate the internal movement and dampen needle vibration. Use them when the gauge is mounted on or near a pump, compressor, or any line that experiences rapid flow changes or physical shaking.
Never install a dry gauge where high vibration exists, as the internal linkage will fail within weeks. Conversely, avoid liquid-filled gauges in extreme sub-zero environments, as the fluid can thicken and cause the needle to become sluggish or stop moving entirely.
How to Select the Right PSI Range for Your System
Selecting the correct scale is a common mistake that leads to inaccurate readings and premature wear. A gauge should be chosen so that the operating pressure falls in the middle third of the dial range.
If a standard residential system runs at 60 PSI, a 0–100 PSI gauge is ideal. Installing a 0–300 PSI gauge on a 60 PSI system makes the needle movement so small that accurate diagnosis of subtle pressure drops becomes nearly impossible.
Additionally, always account for potential “surge” or “spike” pressures. If the system regularly sees 100 PSI during peak hours, ensure the gauge can handle a buffer above that, but avoid over-specifying to the point where the working range is buried in the bottom quarter of the dial.
Where to Install Your Gauge for Accurate Readings
The location of the gauge determines the quality of the data it provides. Always install gauges on a rigid section of pipe, away from sharp 90-degree elbows or restrictive fittings that cause turbulence.
For a house-wide pressure check, install the gauge after the main shut-off and any pressure-reducing valves. If the intent is to monitor pump performance, install the gauge on the discharge side, but use a “pigtail” or a small length of tubing to isolate it from direct shock.
Using a ball valve or a small isolation cock between the pipe and the gauge is a pro move. This allows the gauge to be replaced or recalibrated without having to shut down or drain the entire building’s water supply.
Interpreting Readings to Spot Water System Issues
A steady needle is a sign of a healthy, stable system. If the needle oscillates rapidly, check for a failing pump or an improperly adjusted pressure-reducing valve that is “hunting” for the correct pressure.
If the needle creeps upward while no water is being used, it is a textbook indicator of thermal expansion—the water in the pipes is heating up and has nowhere to go. This typically points to a failed or undersized thermal expansion tank that needs immediate replacement before it blows a seal on a fixture.
A needle that drops significantly when a faucet is opened indicates a restriction in the line or an undersized service pipe. Use these visual indicators as a diagnostic baseline; when the needle deviates from its norm, the system is telling you exactly where the failure is starting.
Selecting the right pressure gauge is an exercise in matching tool performance to system demands. Whether you need the rugged dampening of an oil-filled unit or the straightforward utility of a dry standard gauge, your choice directly dictates how effectively you can maintain the building’s infrastructure. Install these tools with isolation valves and proper placement to ensure that your monitoring remains accurate for years to come.
