6 Best insulating mats for high voltage safety

Working around high-voltage equipment—whether installing roof-mounted solar arrays near main service feeds or retrofitting electrical panels in commercial mechanical rooms—demands absolute protection. A single oversight regarding insulating mats can turn a routine maintenance task into a life-altering safety failure. Understanding the nuance between voltage classes and material durability is not just about compliance; it is about ensuring that every technician remains grounded in safety. This guide breaks down the industry’s most reliable insulating mats to help crews choose the right equipment for the environment.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Salisbury Corrugated Mat: The Industry Standard

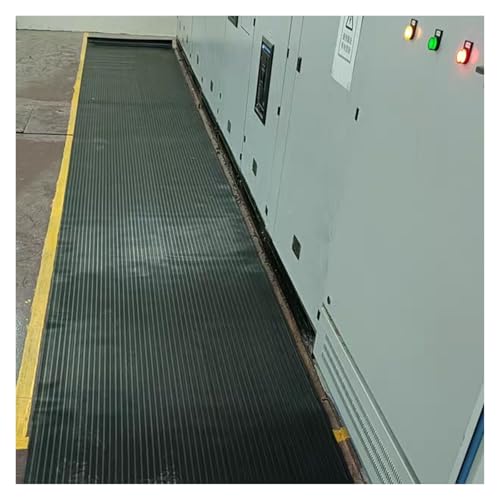

The Salisbury name is synonymous with electrical safety for a reason. These corrugated mats are the go-to choice for permanent installations in front of high-voltage switchgear. The ribbed surface isn’t just for show; it provides essential traction to prevent slips while workers are maneuvering heavy tools or standing on slick concrete floors in mechanical rooms.

These mats are built to meet strict ASTM D178 standards, ensuring dielectric strength is maintained even under duress. When specifying these for a project, look for the color-coded labeling that clearly indicates the voltage rating. Never assume that a mat’s thickness is a substitute for a certified safety rating.

The bottom line remains clear: if the job requires a permanent, reliable, and high-traction solution for a high-traffic electrical workspace, Salisbury is the gold standard. It minimizes the risk of accidental slips and electrical discharge, serving as a vital barrier between the worker and the ground.

Cementex C-VDE-MB: Top Choice for Portability

For contractors who travel from site to site, hauling heavy, fixed-length mats is a logistical headache. The Cementex C-VDE-MB series offers a mobile solution that doesn’t sacrifice dielectric integrity. These mats are designed to be rolled up and stored in a standard tool bag or service van without cracking or losing their protective properties.

Because they are highly flexible, they conform easily to tight spaces behind control cabinets or narrow crawlspaces. When working in remote utility sheds or retrofitting older buildings where space is at a premium, the ability to deploy a mat quickly is invaluable. It removes the temptation to “skip the mat” just because a permanent one isn’t already in place.

Choose this option when versatility is the priority. While these mats are incredibly convenient, always remember to inspect them for debris or metallic grit before unrolling them on a job site. Even the best portable mat loses its efficacy if metal shavings are embedded in the rubber.

CATU Class 3 Mat: Best for High-Risk Substation

Substations are high-stakes environments where the potential for electrical arc flash and high-voltage exposure is constant. The CATU Class 3 mat is engineered to handle higher voltage thresholds, typically up to 26,500 volts. This is equipment for serious, high-voltage infrastructure work, not for light residential panel swaps.

These mats are exceptionally dense and resistant to puncture, which is critical when working in environments filled with sharp metal components or debris. In a substation, the last thing anyone needs is a thin, flimsy mat that tears when a heavy bolt or tool is dropped on it. The CATU build quality ensures that physical impact doesn’t compromise the dielectric layer.

This is a specialized tool for high-voltage professionals. If the job involves heavy industrial equipment or distribution-level power, this is the level of protection that needs to be specified. Don’t cut corners on safety when the stakes involve high-voltage potential.

Duratuf Electrical Matting: Most Durable Option

Duratuf is frequently specified for industrial environments where the floor itself takes a beating. If the work area involves heavy foot traffic, spilled lubricants, or abrasive grit, standard mats will degrade quickly. This matting is reinforced to withstand significant mechanical wear and tear, maintaining its electrical insulation long after others would show signs of fatigue.

The thickness of the Duratuf line provides a tactile cushion that reduces fatigue during long shifts. While insulation is the primary goal, comfort goes a long way toward maintaining worker alertness and focus. A worker who is comfortable is far less likely to make a rushed, dangerous mistake.

This is the “set it and forget it” option for long-term installation. When evaluating the budget for a facility maintenance contract, justify the higher upfront cost of Duratuf by highlighting its longer service life and reduced replacement frequency. It is a workhorse that stands up to the rigors of real-world construction and industrial sites.

M.G.S. Class 0 Mat: For Low Voltage Protection

Not every electrical job involves high-voltage mains. In residential settings or low-voltage control rooms, the M.G.S. Class 0 mat provides exactly what is needed without unnecessary bulk. It is rated for up to 1,000 volts, making it the perfect choice for routine work on residential breaker panels or HVAC control boards.

Because it is thinner and lighter than high-class mats, it is easier to store and maneuver in cramped closets or tight attic access points. It provides the required safety buffer for low-voltage work while being unobtrusive to the actual task at hand. It is simple, effective, and perfectly suited for the residential contractor’s tool kit.

When working in a standard home, using a Class 0 mat is a professional standard that signals experience and attention to detail. It is an affordable way to keep the crew safe during everyday electrical service calls. Never underestimate the importance of insulation just because the voltage seems manageable.

Legrand Class 4 Carpet: Max Voltage Protection

When dealing with extreme voltages, Class 4 protection is the ceiling of safety. The Legrand Class 4 carpet is designed for environments that require protection up to 36,000 volts. These are heavy-duty, industrial-grade assets that provide a massive safety margin for workers in high-power distribution sectors.

The “carpet” designation refers to the expansive coverage these mats can provide, creating a wide, safe zone around the equipment. When installing or maintaining primary service gear, being able to stand on a fully insulated surface provides the peace of mind necessary to focus on the technical details of the job. There is no room for error at 36kV, and this mat ensures that the environment is as safe as possible.

These mats are substantial and usually require a dedicated storage rack to prevent folding or creases that could compromise the dielectric material. Treat them with the same respect as a high-end tool or a sensitive piece of test equipment. Proper care will ensure these provide the highest level of protection throughout their lifecycle.

Voltage Classes: What ASTM Rating Do You Need?

Matching the mat to the voltage is a critical calculation. ASTM D178 standards categorize mats by class, with each class corresponding to a maximum use voltage. Using a Class 0 mat near a Class 3 hazard is a recipe for a fatal mistake.

• Class 0: 1,000 Volts
• Class 1: 7,500 Volts
• Class 2: 17,000 Volts
• Class 3: 26,500 Volts
• Class 4: 36,000 Volts

Always verify the voltage of the equipment being worked on before selecting the mat. If there is ever any ambiguity regarding the potential voltage or the presence of transient surges, always default to a higher class. It is far better to be over-prepared than to have an inadequate barrier during a surge.

How to Inspect Your Mat for Damage and Wear

An insulating mat is a piece of safety equipment, not a floor covering. Inspect the entire surface for punctures, cracks, or embedded metallic debris before every single use. Even a microscopic pinhole can allow enough current to pass through to cause injury, rendering the entire mat useless.

Pay special attention to the edges and the areas that have been folded. These are the most common failure points where the material may be weakened. If a mat has been dragged across concrete or exposed to harsh chemicals, it should be tested by a certified lab or immediately replaced.

Maintain a log for all safety gear. Mark the date of purchase and the inspection cycle on the underside of the mat. If the mat is used daily, a visual inspection is the absolute minimum requirement; annual professional dielectric testing is the mark of a truly professional operation.

Proper Storage and Handling of Insulating Mats

Never fold an insulating mat. Folding creates stress points that permanently degrade the dielectric barrier. Instead, store mats flat or rolled loosely on a proper mandrel or rack, ensuring they remain free from contact with sharp tools or heavy machinery.

Keep mats away from direct sunlight, extreme heat, or ozone-producing equipment. UV radiation and ozone can break down the rubber polymers, causing them to lose their insulating properties over time. A clean, climate-controlled, and dark storage space is the ideal environment for extending the life of this equipment.

Avoid placing heavy objects on top of rolled mats. Even if the mat doesn’t look damaged, the compression can lead to thin spots that aren’t visible to the naked eye. Treat the storage area as a dedicated sanctuary for safety gear, and the mats will remain ready for service when the job requires them.

OSHA and ASTM Standards for Safety Matting

OSHA 1910.333 serves as the primary guidance for electrical safety, requiring that employees working near exposed energized parts be protected by appropriate insulating equipment. However, ASTM D178 is the technical standard that defines the manufacturing and testing requirements for the mats themselves. Using equipment that is not ASTM-compliant is a direct violation of safety protocols and a massive liability for any contractor.

Documentation is the cornerstone of OSHA compliance. Keep records of the dielectric test dates and ensure that all purchased mats carry the proper stamps indicating their class and test history. If a site inspector asks to see the safety equipment, being able to produce certified, well-maintained mats prevents costly delays and potential fines.

Understand that these standards are the absolute minimum. In the field, it is common to exceed these requirements by selecting higher-rated gear for added safety margins. A commitment to these standards is not just about avoiding citations; it is about building a culture where safety is never treated as optional.

Selecting the right insulating mat is a non-negotiable step in high-voltage site preparation. By matching the ASTM voltage class to the specific electrical hazards and prioritizing proper storage, you safeguard the crew and the project. When safety gear is treated with the same precision as a specialized roofing tool, performance follows suit. Always prioritize the life of the worker over the convenience of the job, and never settle for equipment that doesn’t meet the certified threshold for the task.
